The Bolt 7 Wireless Receiver delivers Teradek's most advanced zero-delay wireless monitoring experience for cinema and broadcast productions. Available in 750ft (228m), 1,500ft (450m), and MAX (up to 5000ft/1.5km) models, Bolt 7 RX receives pristine 4K HDR video while expanding beyond traditional wireless monitoring with integrated production data capabilities.
Using Bolt 7's dedicated 900 MHz wireless data channel, the receiver supports camera control, monitor control, Ethernet transport, color management workflows, and future production applications—all alongside zero-delay wireless video.
A redesigned interface with a full-color OLED, simplified pairing, and enhanced control through the Bolt App makes deployment faster and RF monitoring easier than ever.
Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.
- Dedicated 900 MHz wireless data transport
- Faster pairing and simplified setup with new OLED display
- 12G-SDI and HDMI outputs
- Available in 750ft/228m, 1,500ft/450m, and MAX range (up to 5000ft/1.5km) options
- Optional Gold Mount, Gold Mount Plus, or V-Mount Battery Cradles
| VIDEO | |

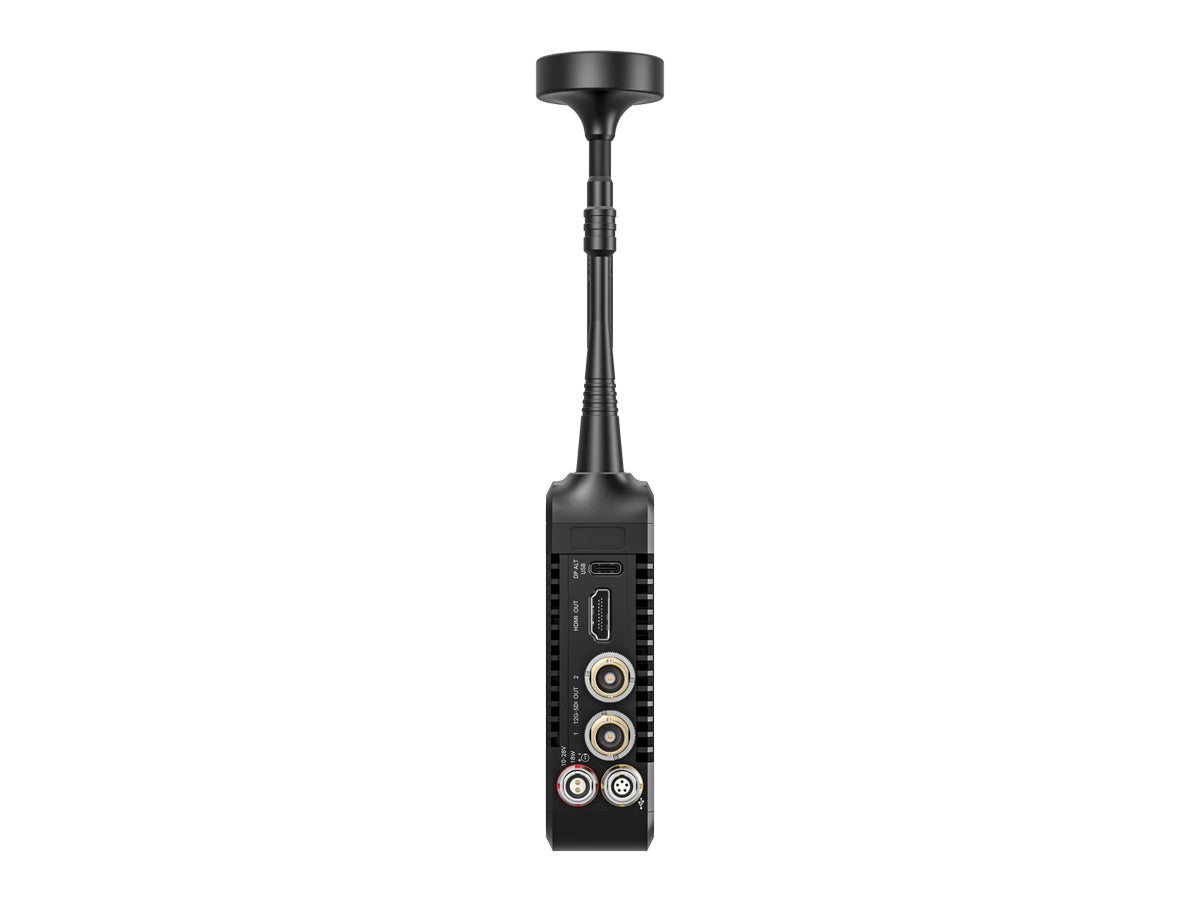

| Video Outputs: | 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video output |
| SDI Ancillary Data Support: | Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras. |
| Colour Sampling: | SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit |
| Delay TX to RX: | <0.001sec |
| Output Video Processing: | Deinterlacer, frame rate converter, scaler, 3D LUTs |
| Other Tools: | Spectrum Analyzer, Test Pattern Generator |
| SUPPORTED RESOLUTIONS | |
| Supported Resolutions: | 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) |
| VIDEO PROCESSING | |
| Video Compression: | Visually Lossless |
| Colour Correction: | 33x33x33 3D LUT (supports 10-bit color) |
| AUDIO PROCESSING | |
| Audio Format: | 48kHz 24-bit PCM |
| OUTPUTS | |
| Audio Output: | Embedded SDI/HDMI Audio Output (2 Channel) |
| PHYSICAL | |
| Dimensions: | 112 x 88 x 32 mm |
| Weight: | 463g (16.3 Oz) |
| Construction: | Milled Aluminum(Chassis) and regulation-compliant PCB |

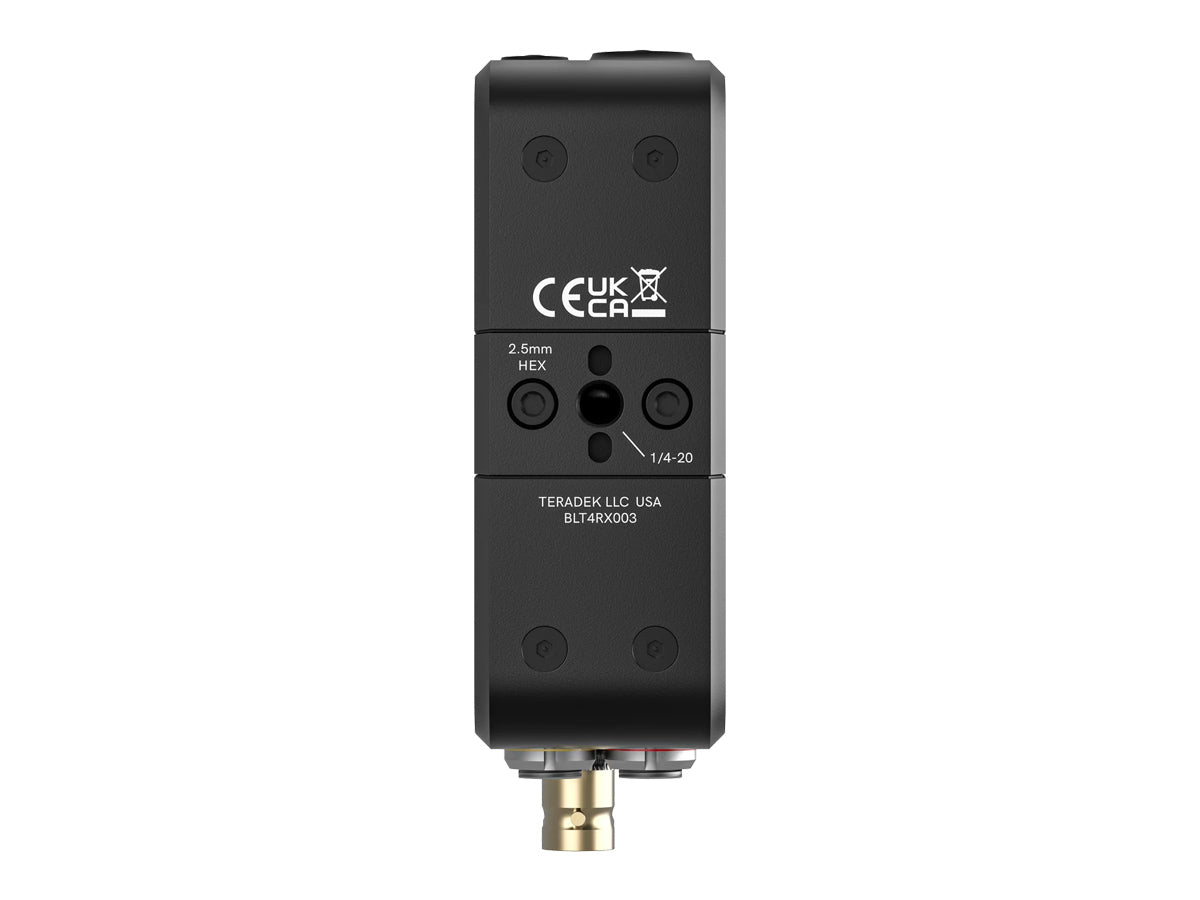

| Mountability: | Multiple mounting options with 1/4"x20 and 3/8"x16 holes |
| INTERFACES | |
| Configuration Interfaces: | Color OLED with Menu, Joystick Navigation |
| Switches: | On/Off Switch |
| USB-C Port: | Firmware upgrade Display Port ALT mode video out Device setup via Bolt Manager desktop app |
| Locking 5-Pin USB Port: | USB host port for camera control via smart cables (optional) |
| Bluetooth Compatibility: | BLE for device setup and monitoring via smart phone app |
| NETWORK | |
| Ethernet: | Via smart cable connected to Locking 5 pin USB port |

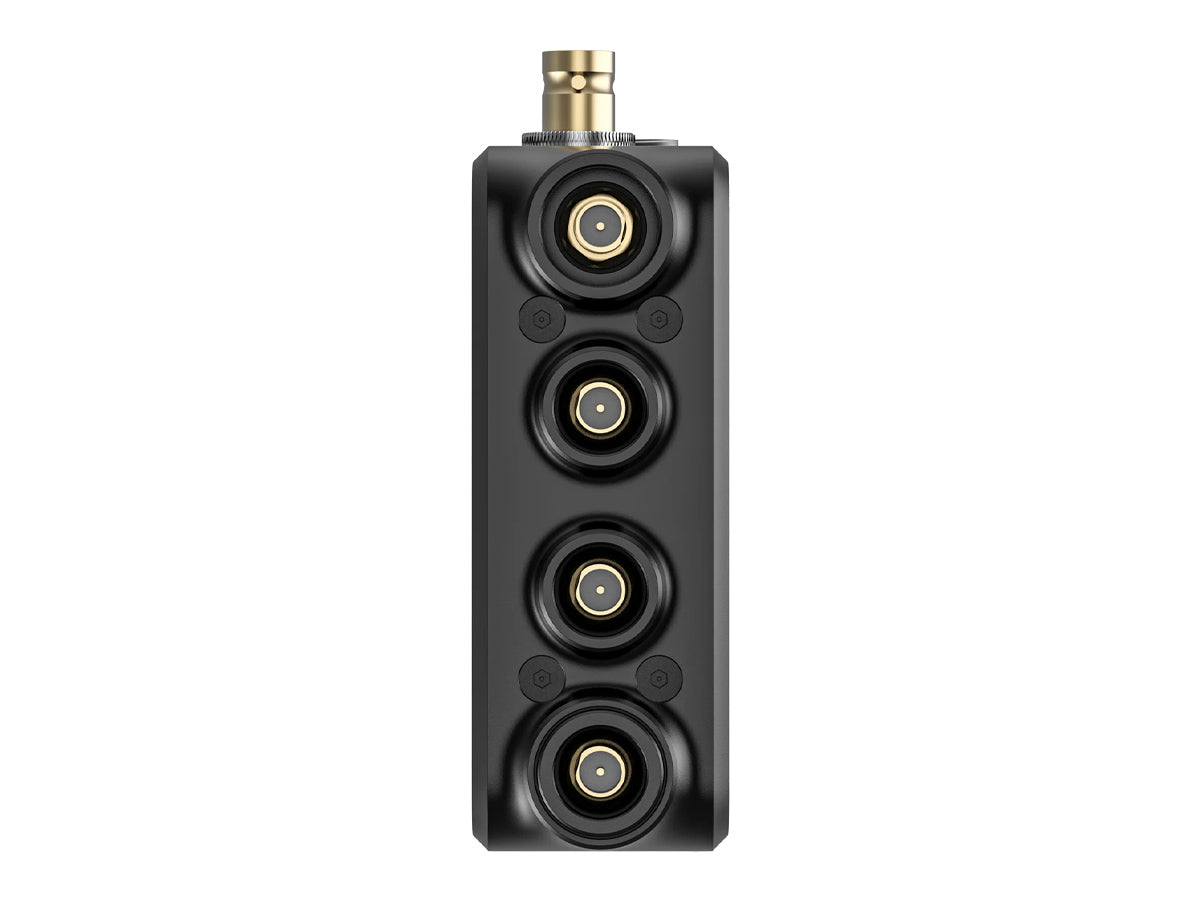

| Antennas: | 6 External, can connect to long range panel antenna |
| Wireless: | Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Bluetooth: | 2.4 GHz |
| RF Channel Selection: | Auto, Manual |
| Encryption: | AES-256, RSA-1024 key exchange |
| RF Power: | 21 dbm EIRP |
| Range: | Up to 750/1500 ft, line of sight |
| Unicast Multicast: | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection: | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location |
| Interoperability Compatibility: | Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products |
| Broadcast: | No |
| Camera Control Radio: | 900 MHz |
| POWER | |
| Power Input: | 2-Pin Circular locking Connector 6-28 VDC |
| Battery: | None, optional field installable Gold- or V-Mount dual battery plate |
| Nominal Power Consumption: | 18 Watts |
| ENVIRONMENTAL | |
| Operating Temperature: | 0-40℃ |

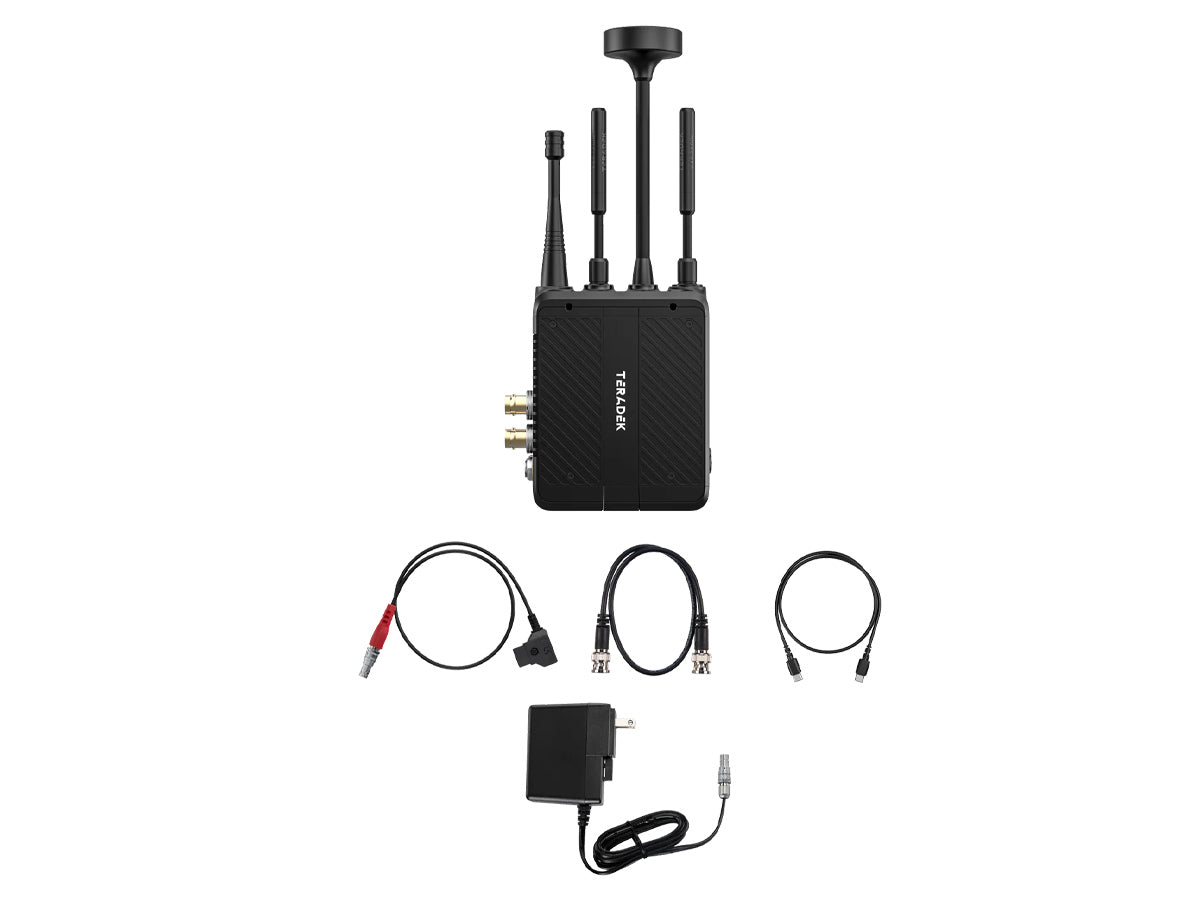

- 2x Antenna 2dBi Flex V 4.9-7.3Ghz RP-SMA
- 1x Antenna 2dBi Flexible H Mushroom V4.9-7.3Ghz RP-SMA
- 1x Antenna 865-926 MHz SMA
- 1x SDI 12G BNC to BNC Cable Length: 18in / 46cm
- 1x DP ALT Mode USB-C Straight to USB-C Straight Cable, 36in
- 1x 2pin Conn. to PowerTap - 18in Cable
- 1x PSU 2pin Conn. to 36W AC Adapter (Int) - 6ft Cable
