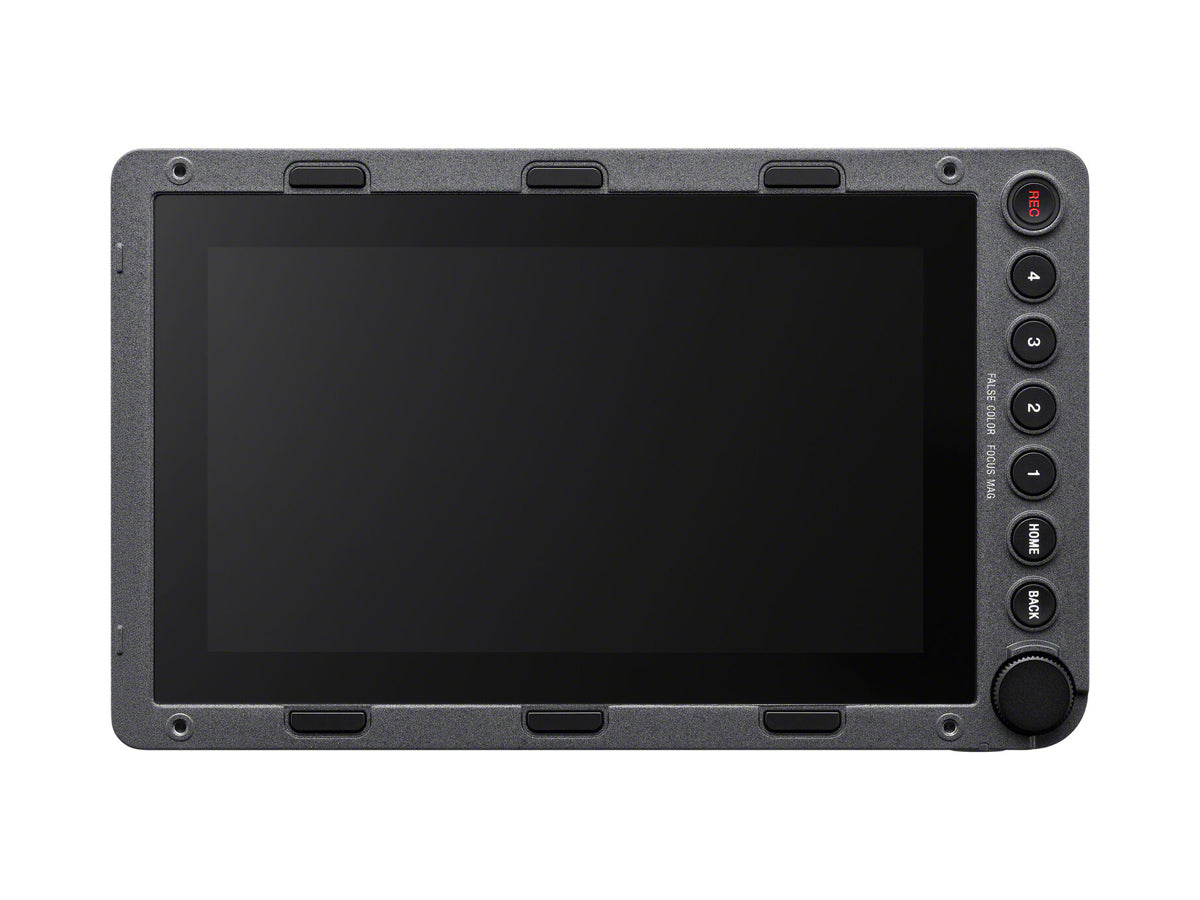

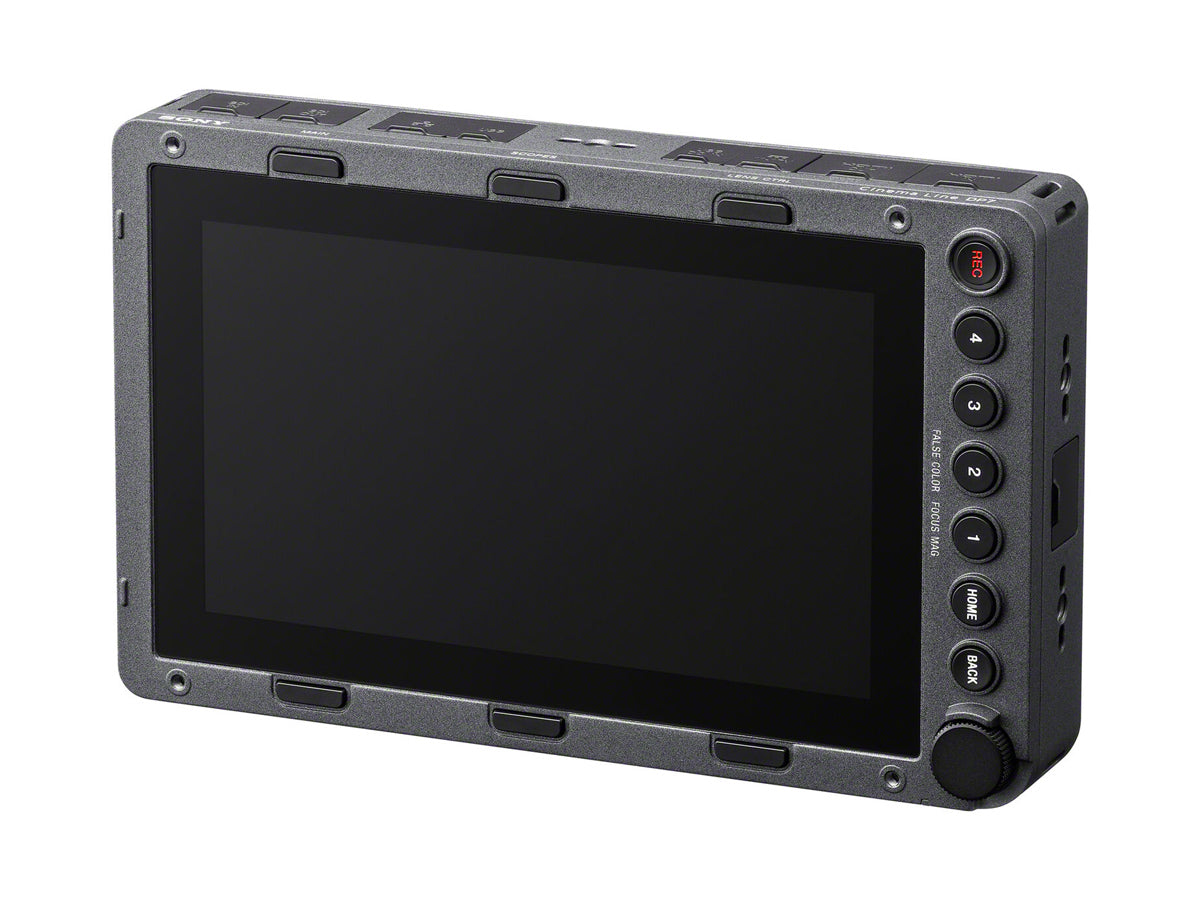

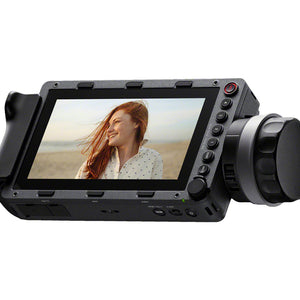

Control compatible Sony Cinema Line cameras remotely with dedicated focus, zoom and shooting-setting operation. The RM-DP7 is a wireless 7-inch Full HD touchscreen monitor, up to 2,000 cd/m² bright. Individually calibrated using Sony's monitor expertise, it delivers accurate colour reproduction for confident on-set evaluation. With LUT support and pro monitoring tools, filmmakers can assess exposure, colour and focus, while rugged build ensures reliability on demanding productions.
PRECISE REMOTE CAMERA CONTROL
Control compatible Sony Cinema Line cameras directly from the monitor with intuitive access to focus, zoom and key shooting settings while staying focused on the image. For wireless connectivity, a compatible third-party device is required.
PROFESSIONAL COLOUR CALIBRATION
Individually calibrated and tuned using Sony’s professional production monitor expertise, delivering highly accurate colour reproduction, particularly in critical mid-tone areas, so filmmakers can evaluate the intended look with greater confidence while shooting.
CONFIDENCE IN EVERY SHOT
Monitor and evaluate footage on a bright 2,000 cd/m² Full HD touch display with professional tools including LUT preview, waveforms, false colour, zebra and peaking.
ACCURATE FOCUS FROM ANYWHERE

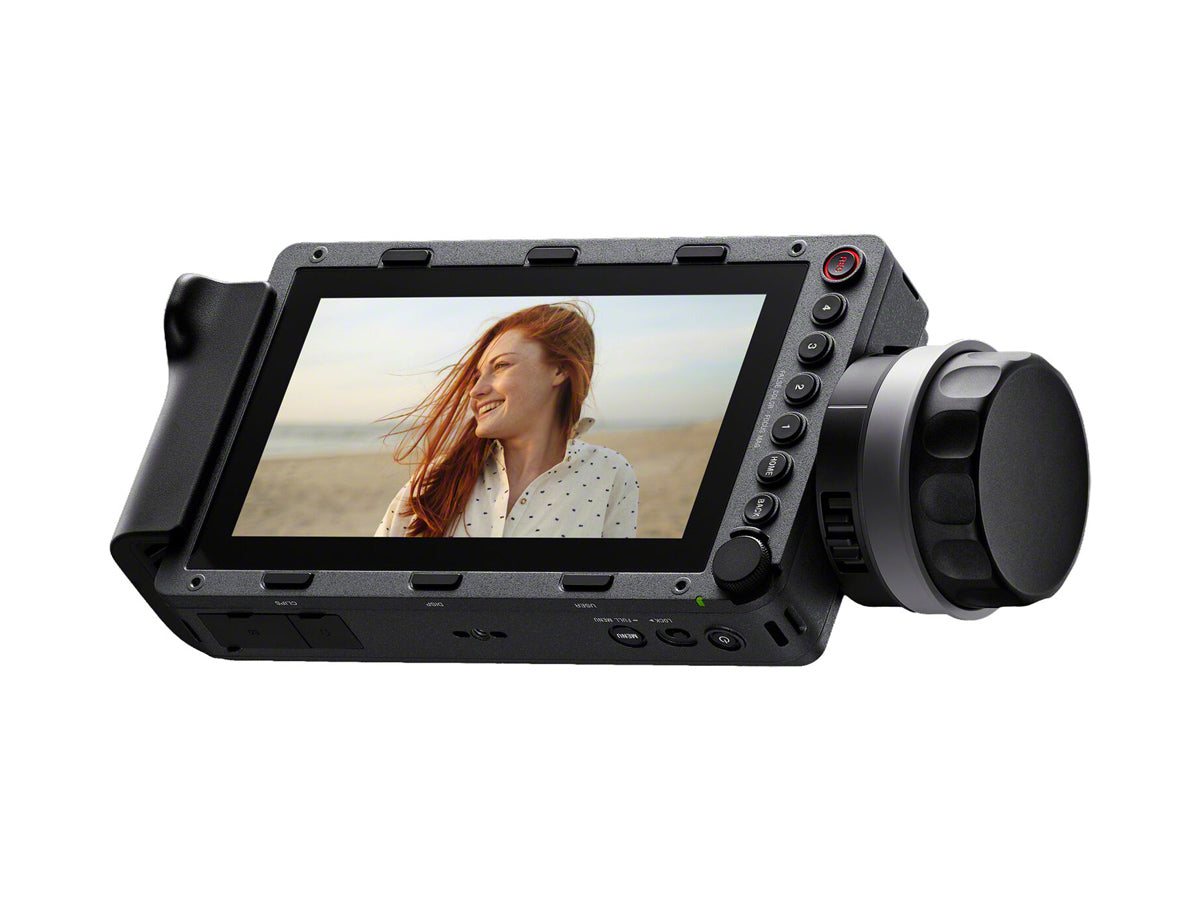

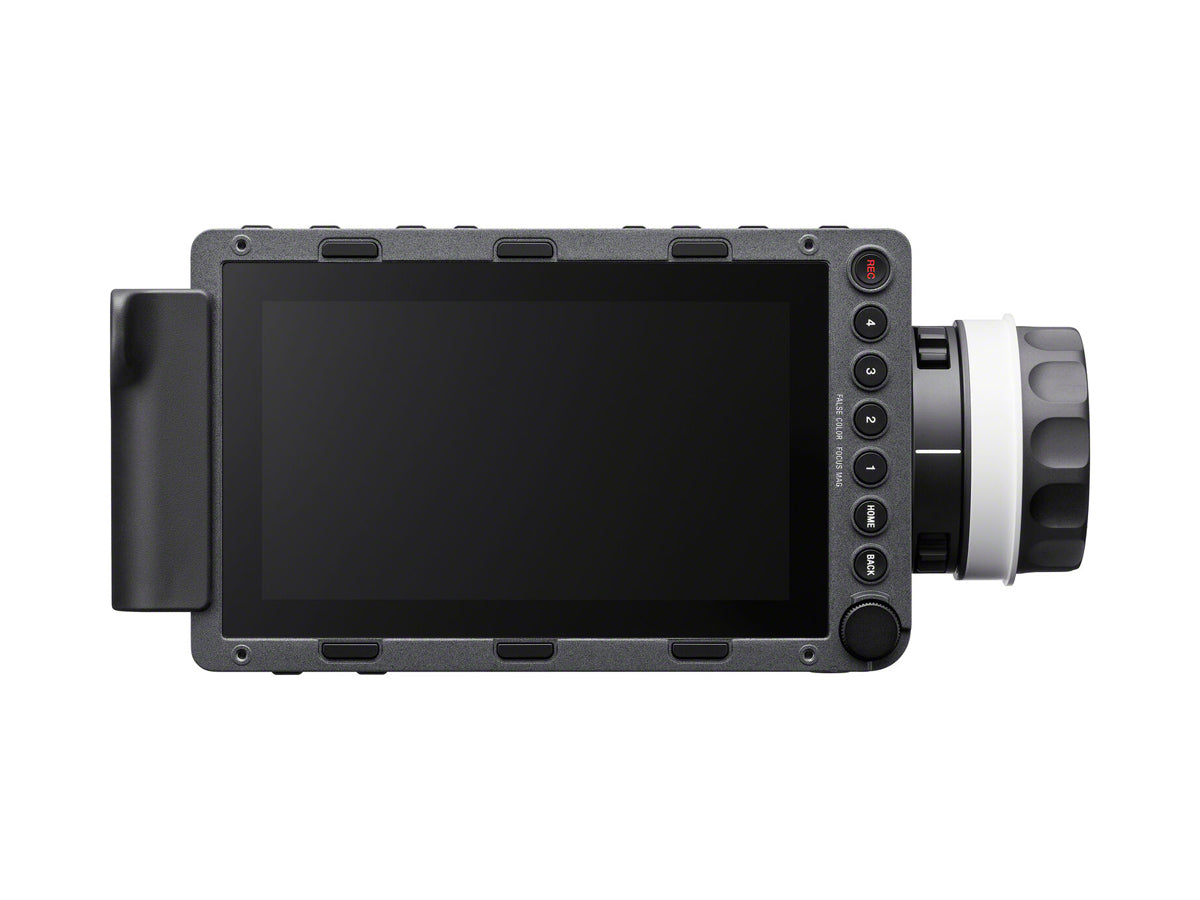

Achieve precise focus pulls with the high-resolution control knob, edge focus indicator and seamless switching between manual focus and camera-based tracking autofocus.
BUILT FOR PROFESSIONAL PRODUCTIONS

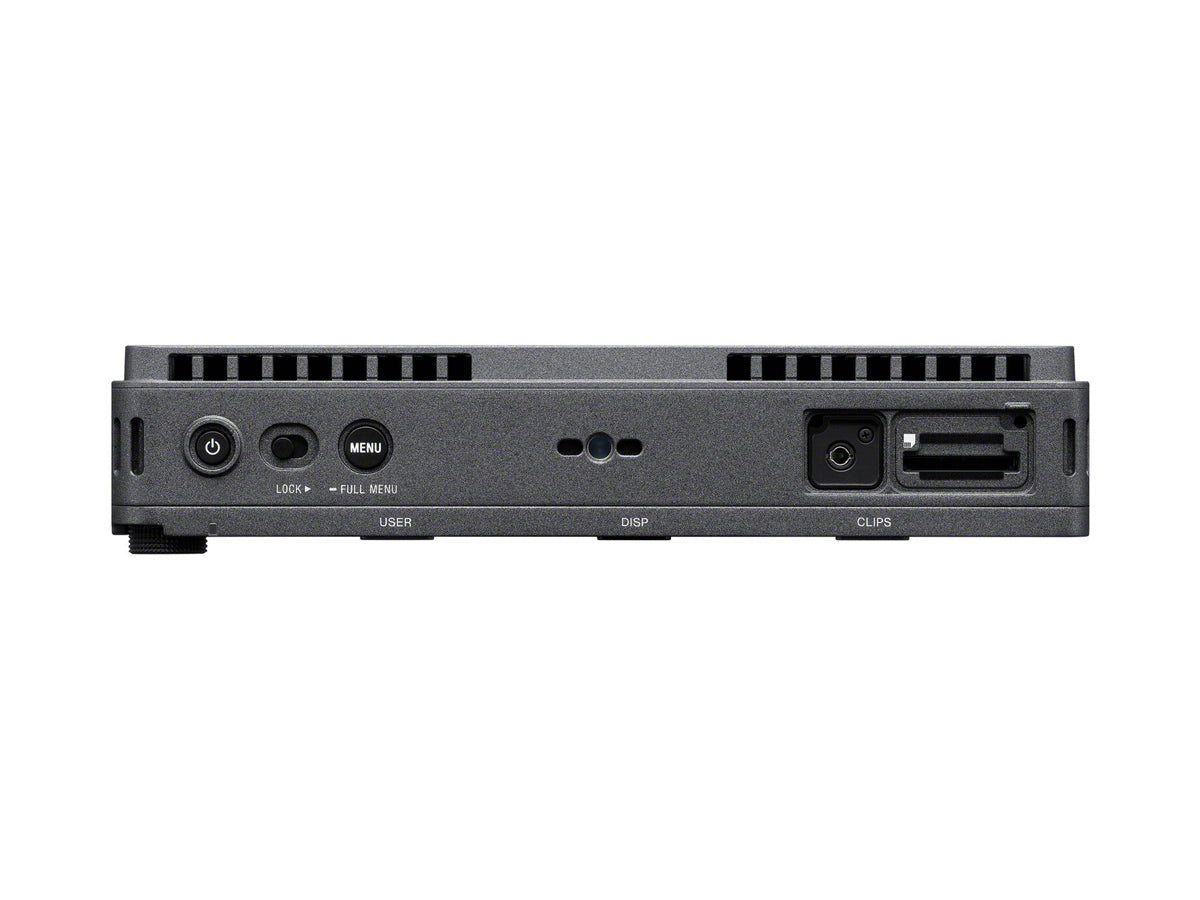

Designed for demanding workflows with wired connectivity, flexible power options, rugged aluminium construction and secure mounting points for reliable operation on set. For wireless connectivity, a compatible third-party device is required.
| DISPLAY | |
| Maximum Luminance: | 2,000 [cd/m2]*1 |
| Native Contrast Ratio: | 1000:1 |
| Display Device: | LCD |
| Effective Picture Elements: | 10-bit processing (8-bit panel) |
| Resolution: | 1920x1080 |
| OPERATING ENVIRONMENT | |
| Operating Temperature: | 0–40°C / 32–104°F |
| Storage Temperature: | -20–60°C / -4–140°F |
| POWER | |

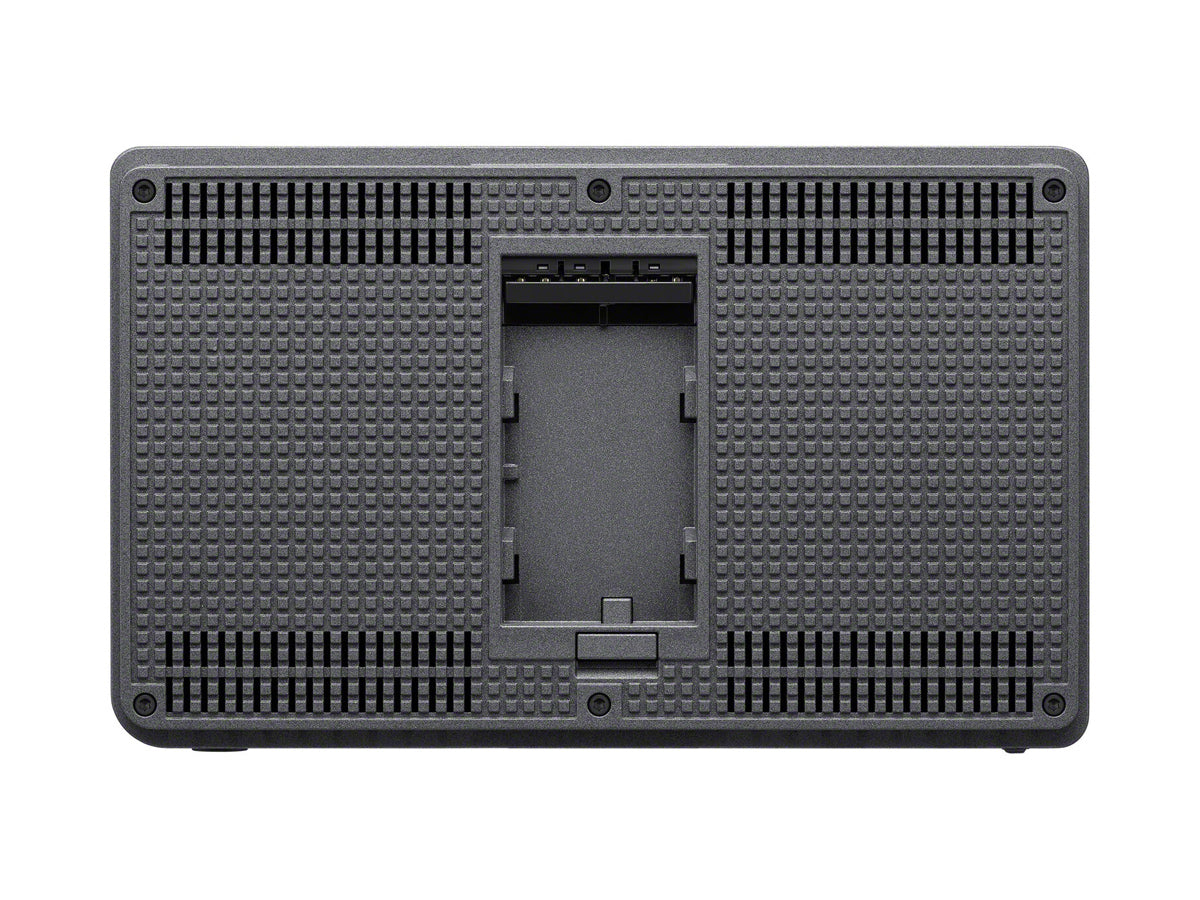

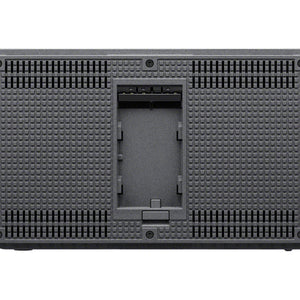

| Battery Input: | 1 (U-Battery) |
| USB Type-C Input: | Yes (65 W (20 V/3.25 A) or higher) |
| DC Input: | Yes (11.0–17.0 V) |
| Maximum Power Consumption: | 32.6 W |
| ACCEPTED DIGITAL SIGNALS | |
| HDMI/SDI Common – 1920x1080: | 23.98p/24p/25p/29.97p/30p/50p/59.94p/60p/50i/59.94i/60i |
| HDMI/SDI Common – 3840x2160: | 23.98p/24p/25p/29.97p/30p/47.95p/48p/50p/59.94p/60p |
| HDMI/SDI Common – 4096x2160: | 23.98p/24p/25p/29.97p/30p/47.95p/48p/50p/59.94p/60p |
| HDMI/SDI Common – 2048x1080: | 47.95p/48p/50p/59.94p/60p |
| HDMI Only – 1920x1080: | 47.95p/48p |
| HDMI Only – 640x480: | 59.94p/60p |
| HDMI Only – 720x480: | 59.94p/60p |
| HDMI Only – 720x576: | 50p |

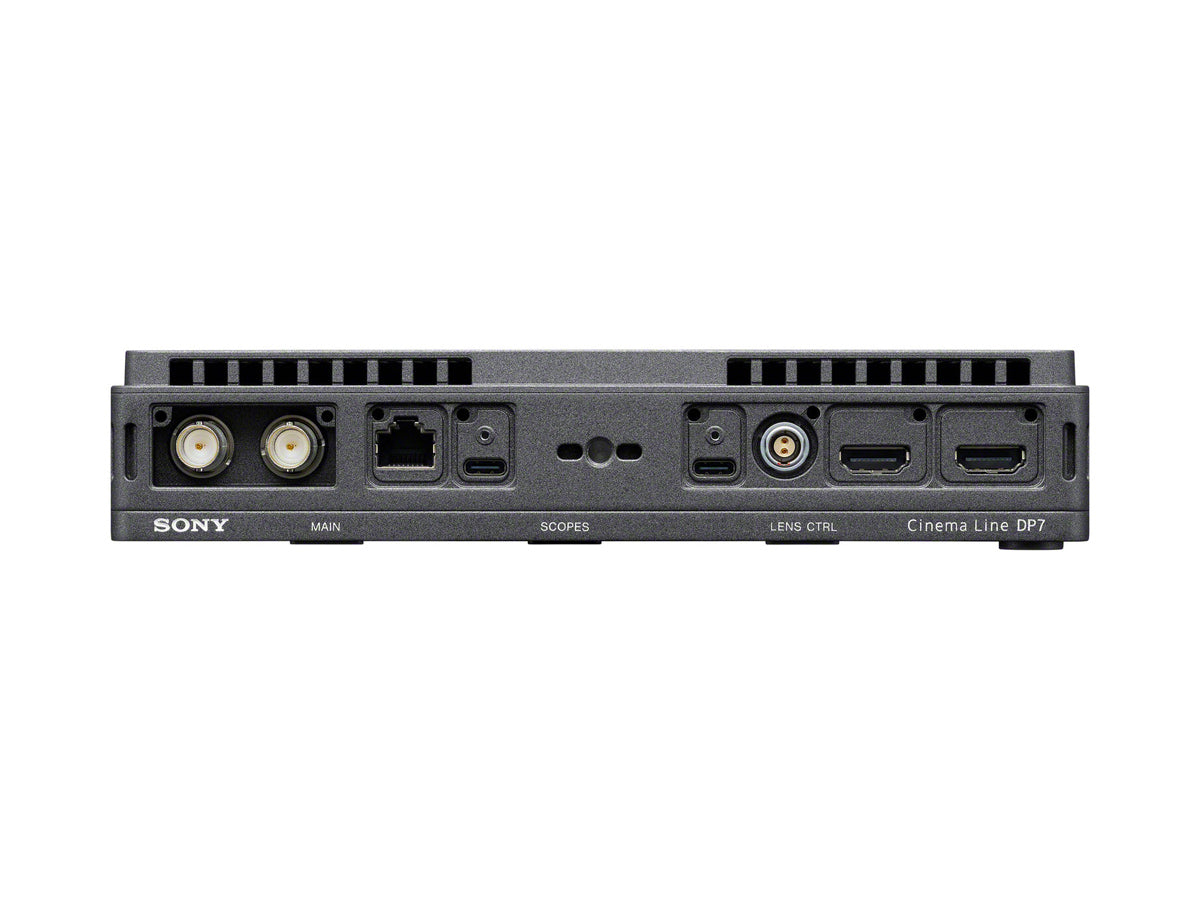

| INPUT | |
| HDMI: | 1 |
| SDI: | 1 (12G-SDI) |
| OUTPUT | |
| HDMI: | 1 |
| SDI: | 1 (12G-SDI) |
| NETWORK & CONTROL | |
| USB: | 1 (USB Type-C™) |
| LAN: | 1 |
| MEDIA | |
| SD Card: | 1 |
| AUDIO | |
| Headphone: | 1 |
| TOUCHSCREEN | |
| Touchscreen: | Yes |
| Camera Control: | Yes |
| ACCESSIBILITY | |
| Screen Reader: | Yes |
| OTHER FUNCTIONS | |
| HDR: | HLG |
| Auto-Detect Function: | Yes |
| Colour Temperature – Corresponding Signal Processing: | D65, DCI, D93, User1~5 |
| Colour Space Mode – Corresponding Signal Processing: | S-Gamut/S-Gamut3, S-Gamut3 Cine, BT.709, BT.2020, DCI-P3 |
| Focus Magnification: | Yes |
| 3D LUT: | 17×17×17/33×33×33 |
| DIMENSIONS | |
| Controller without Accessories: | Approx. 21.31 × 13.11 × 4.54 cm / 8.4 × 5.2 × 1.8 in |
| Controller without Accessories – Screen-to-Back: | Approx. 21.31 × 13.11 × 4.14 cm / 8.4 × 5.2 × 1.6 in |
| Controller with Accessories: | Approx. 29.00 × 13.11 × 9.00 cm / 11.4 × 5.2 × 3.5 in |
| WEIGHT | |
| Controller without Accessories: | Approx. 997 g / 2.2 lb |
| Controller with Accessories: | Approx. 1,333 g / 2.9 lb |
