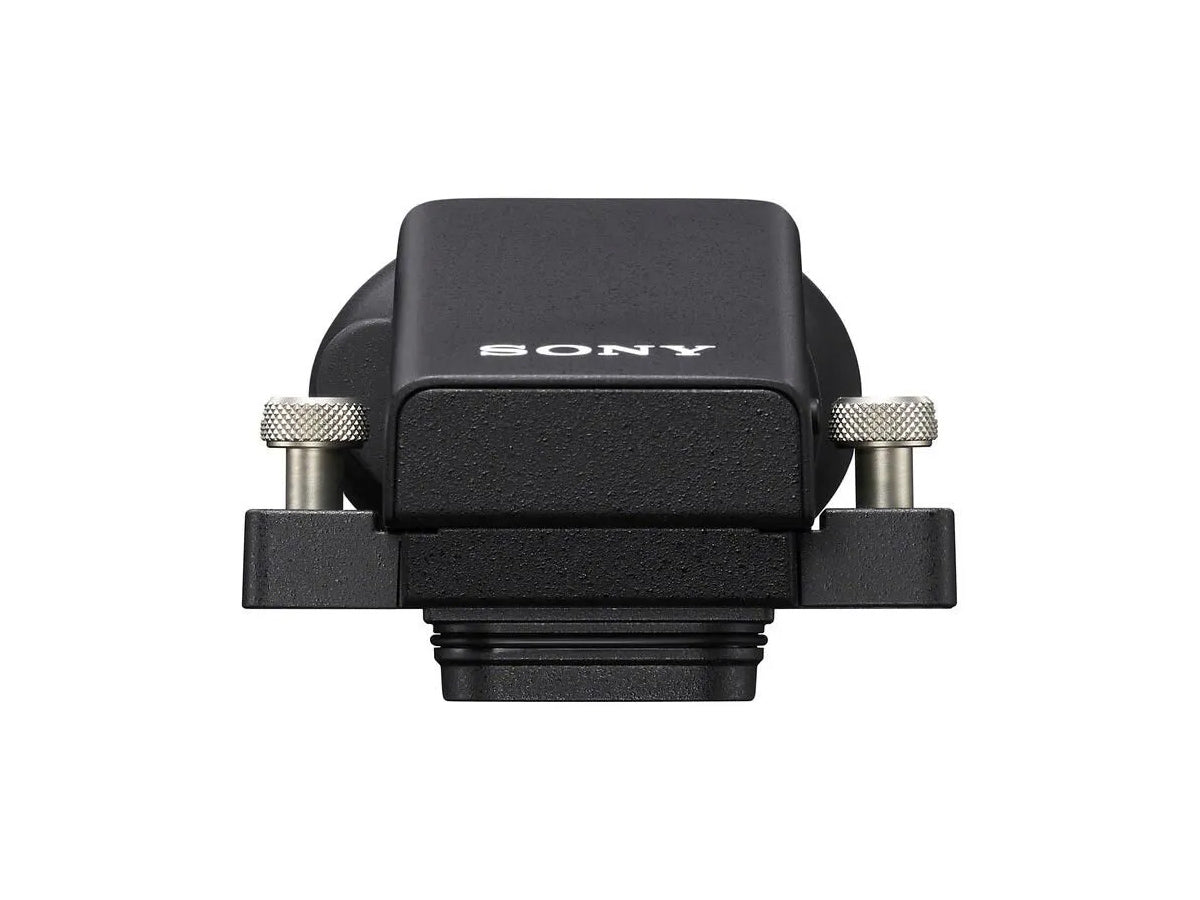

Sony DVF-EL1 OLED Viewfinder
Sony DVF-EL1 OLED Viewfinder
£650.00 inc VAT
£650.00 inc VAT
Couldn't load pickup availability
- Details
- Specifications
- What's Included

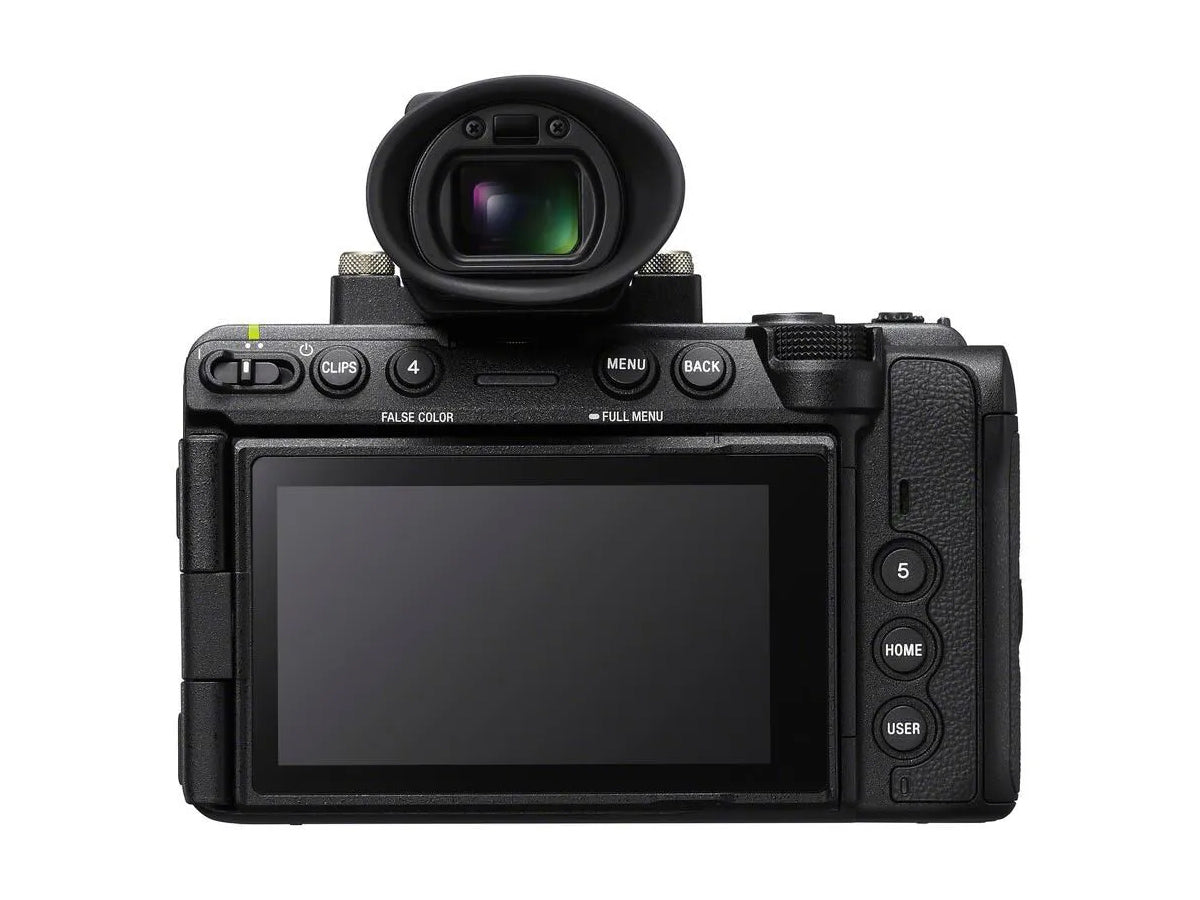

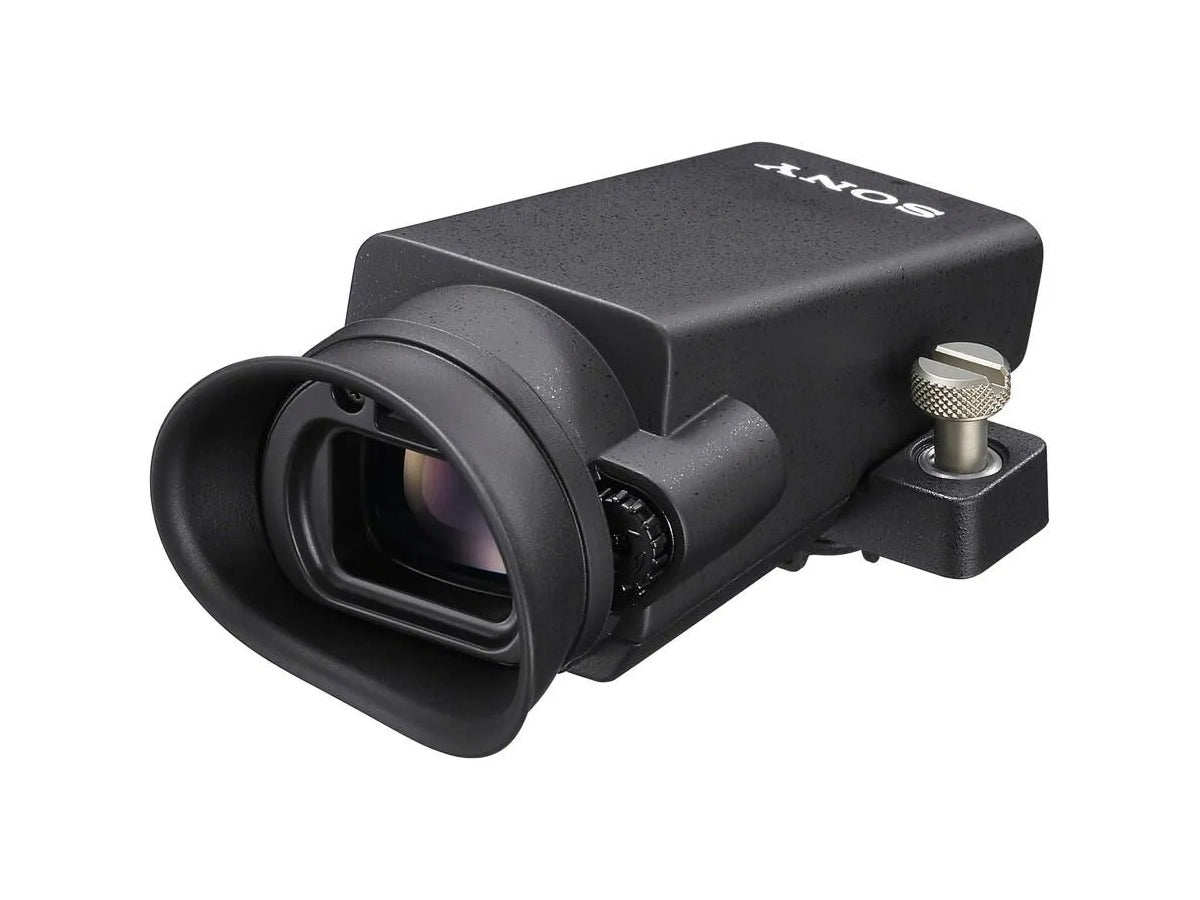

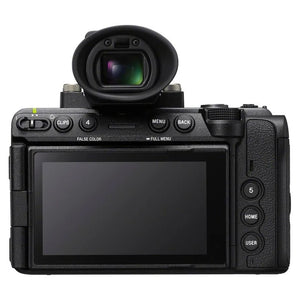

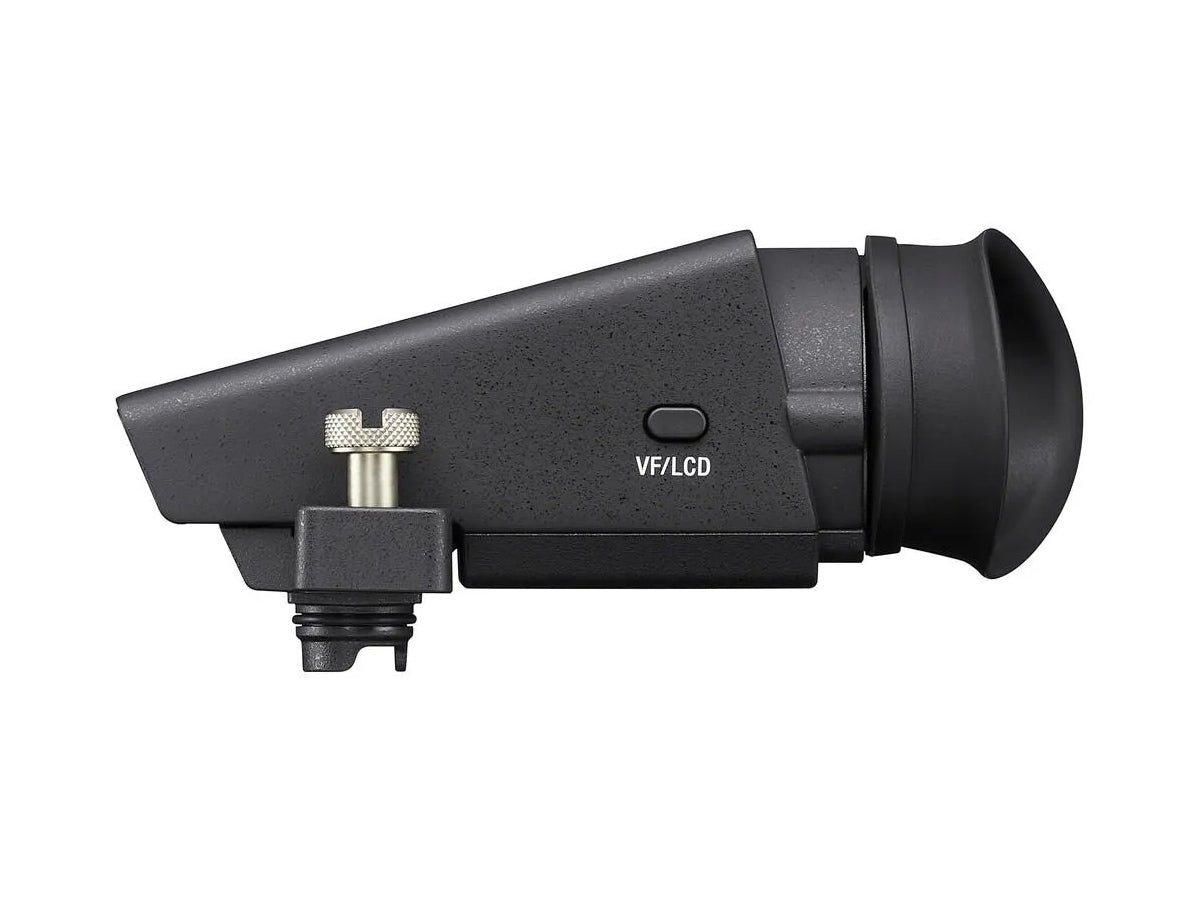

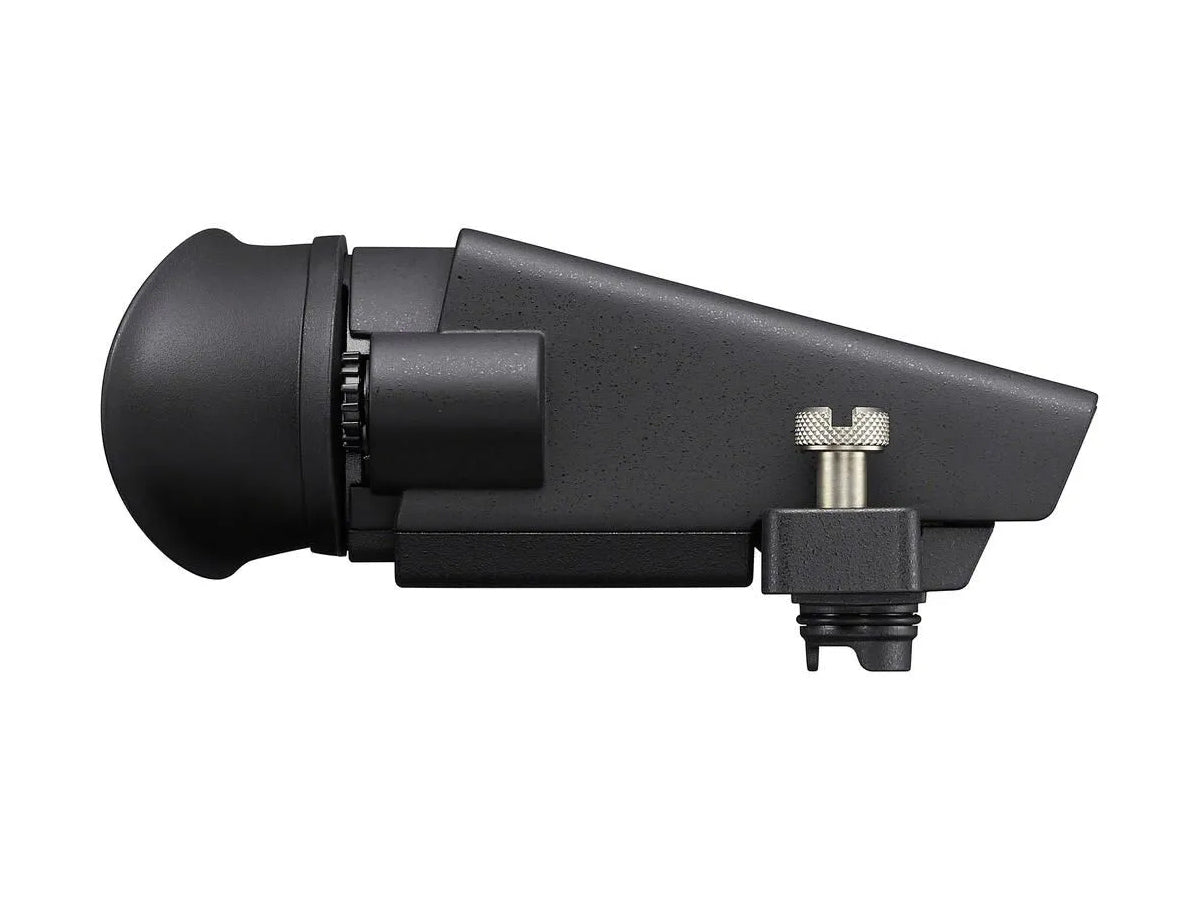

The DVF-EL1 is a professional-grade electronic viewfinder designed specifically for the FX5. Featuring a high-resolution 7.07M-dot OLED display, it provides a sharp, high-contrast, and color-accurate image, essential for precise focus and framing, even in bright daylight. With a peak brightness of 2500 cd/m² and 10-bit wide gamut support, it ensures optimal visibility in any environment. Its modular, 0° to 90° tiltable design provides superior ergonomics for extended shoots. Built for demanding production environments, the FX EVF offers seamless integration and the robustness required for professional cinema and broadcast workflows.
Modular Design for Any Rig

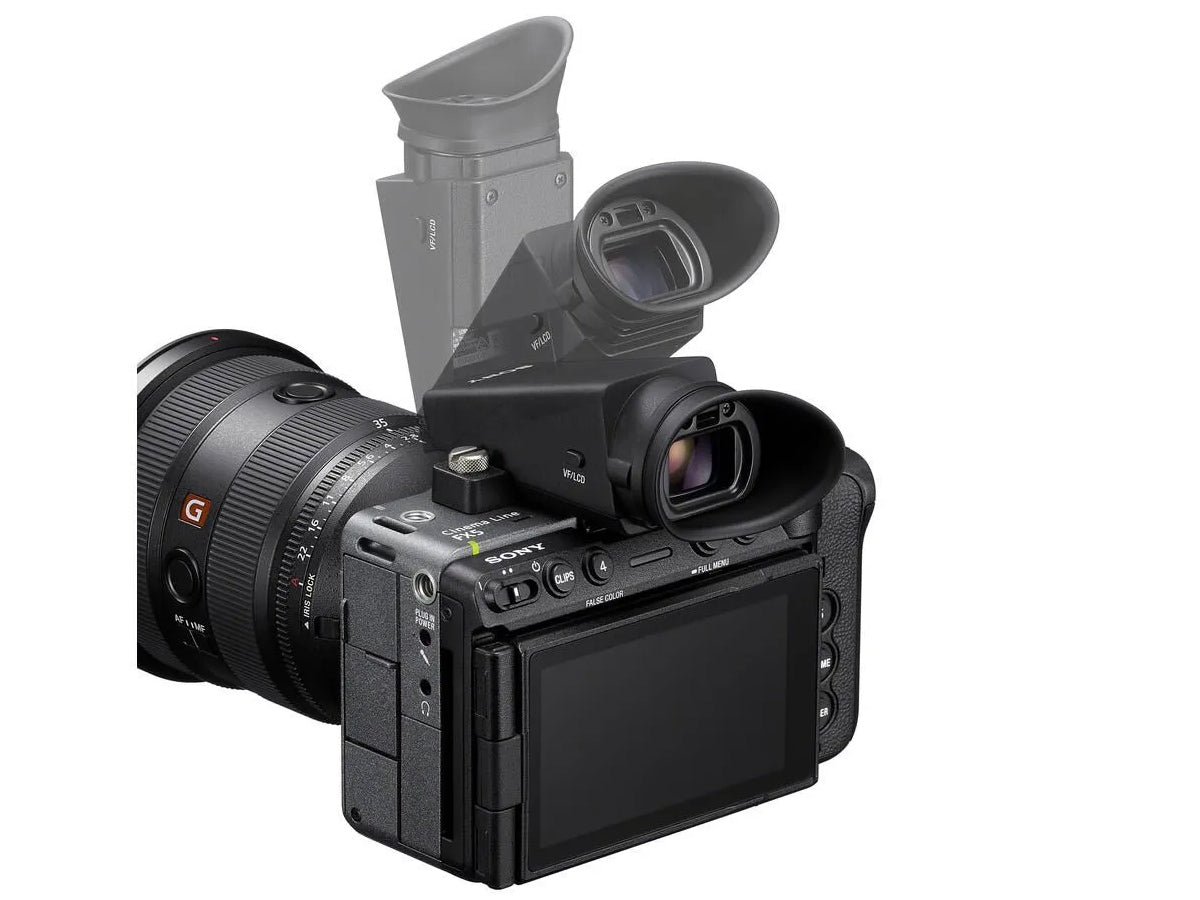

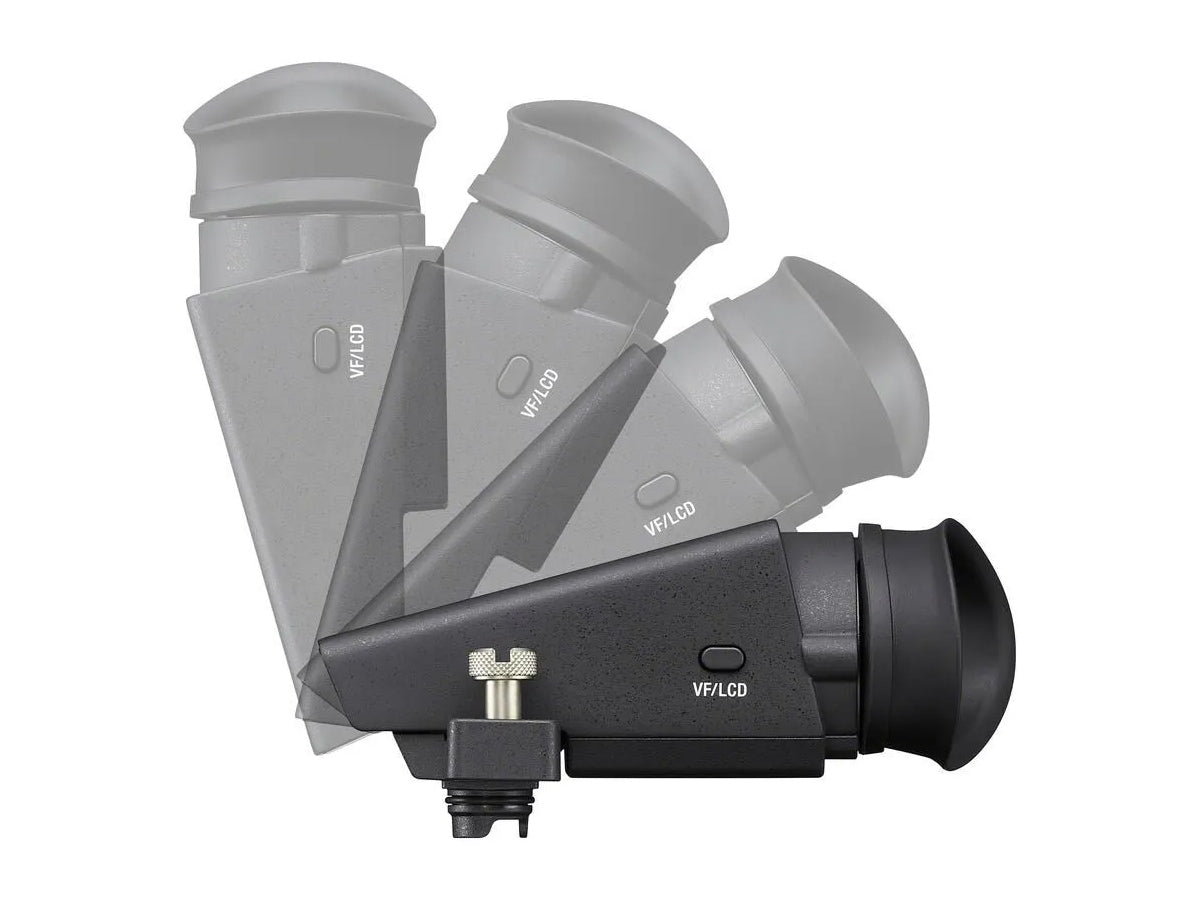

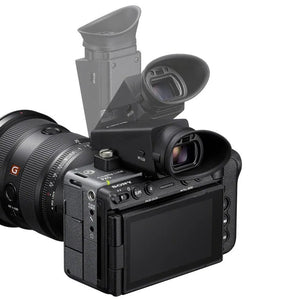

Featuring a detachable, tiltable (0° to 90°) interface, this EVF provides the ergonomic flexibility required for professional operation. Whether shooting at eye-level or low-angle, it adapts instantly to your specific production needs.
High-Fidelity Visual Precision

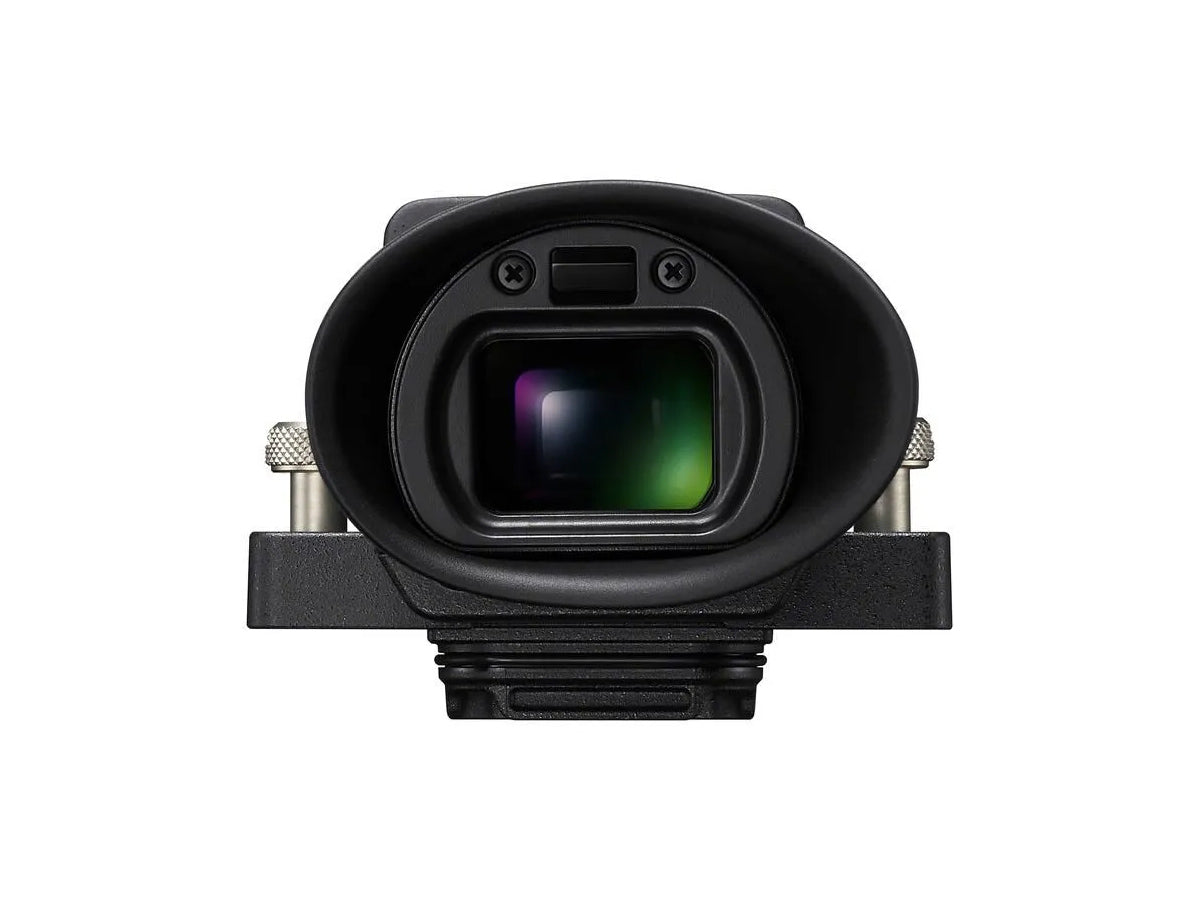

Equipped with a high-resolution 7.07M-dot OLED display, it supports 10-bit color and a wide color gamut. It delivers the accurate color and image depth required to nail critical focus and exposure in every frame.
Uncompromised Daylight Clarity
Boasting an impressive peak brightness of 2500 cd/m², this EVF ensures perfectly clear visibility even under harsh, direct sunlight. It maintains complete image integrity without the need for bulky sunhoods, regardless of the lighting conditions.
| VIEWFINDER | |
| Type: | 1.5 cm (0.58-type) electronic viewfinder (OLED) |
| Number of Dots: | 7 077 888 dots |
| Magnification: | Approx. 0.90x (with 50 mm lens at infinity, -1 m-1) |
| Dioptre Adjustment: | -4.0-+3.0 m-1 |
| Eye Point: | Approx. 27.5 mm from the eyepiece lens, 21.8 mm from the eyepiece frame at -1 m-1 (CIPA standard) |
| INTERFACE | |
| VF Terminal: | Yes |
| POWER CONSUMPTION | |
| Maximum Power Consumption: | Approx. 1.6 W |
| OPERATION | |
| Operating Temperature: | 0 - 40 ℃ / 32 - 104 °F |
| Storage Temperature: | -20 to 55 ℃ / -4 to 131 °F |
| DIMENSIONS & WEIGHT | |
| Dimensions: | 59.9 x 46.1 x 94.9mm / 2⅜ x 1⅞ x 3¾" |
| Weight: | 95.7g / 3.4oz |
- 1x Viewfinder
- 1x Eyepiece cup
- 1x Terminal protect cap
