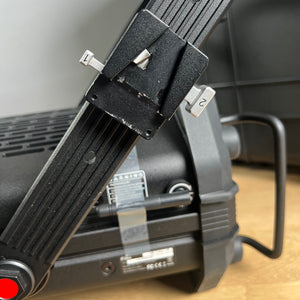

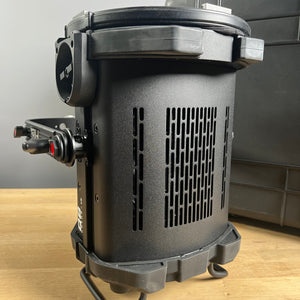

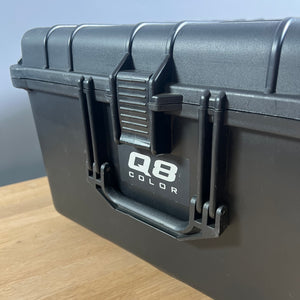

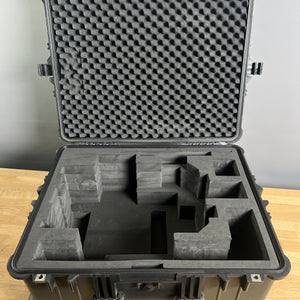

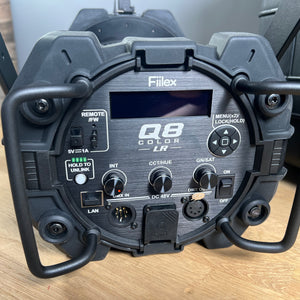

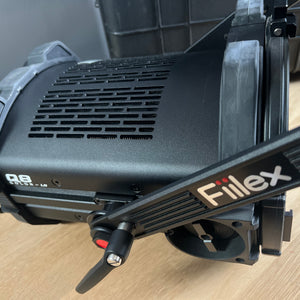

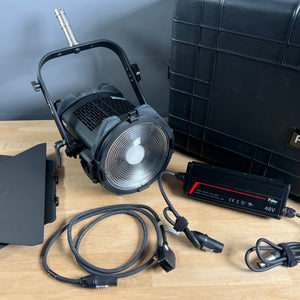

Fiilex Q8 Color
Fiilex Q8 Color
SKU:
FII-Q8CLR
Contact us for a quote:
- Details
- Specifications
RRP £6320+VAT - Contact us for a quote.
---

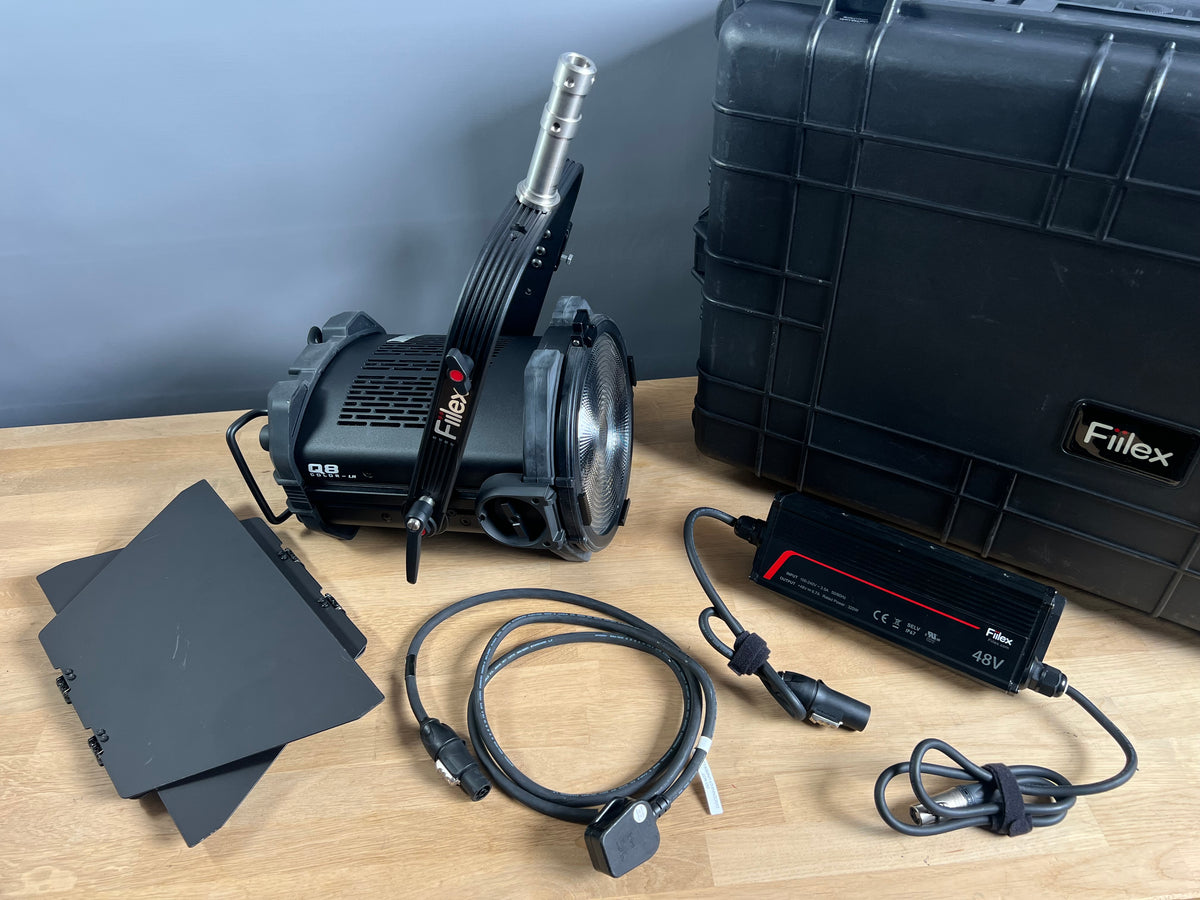

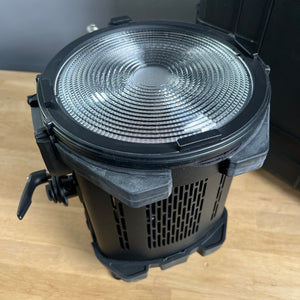

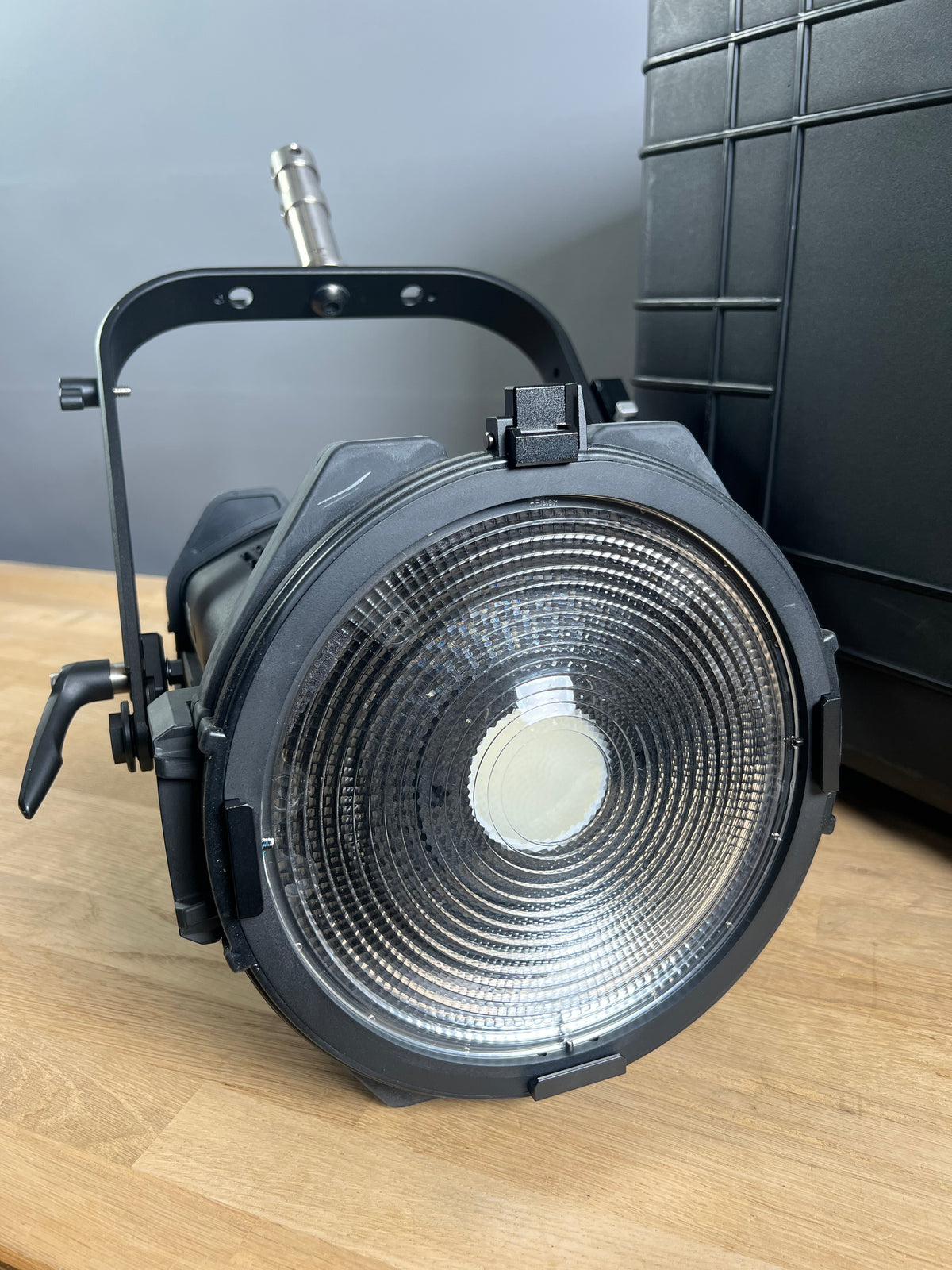

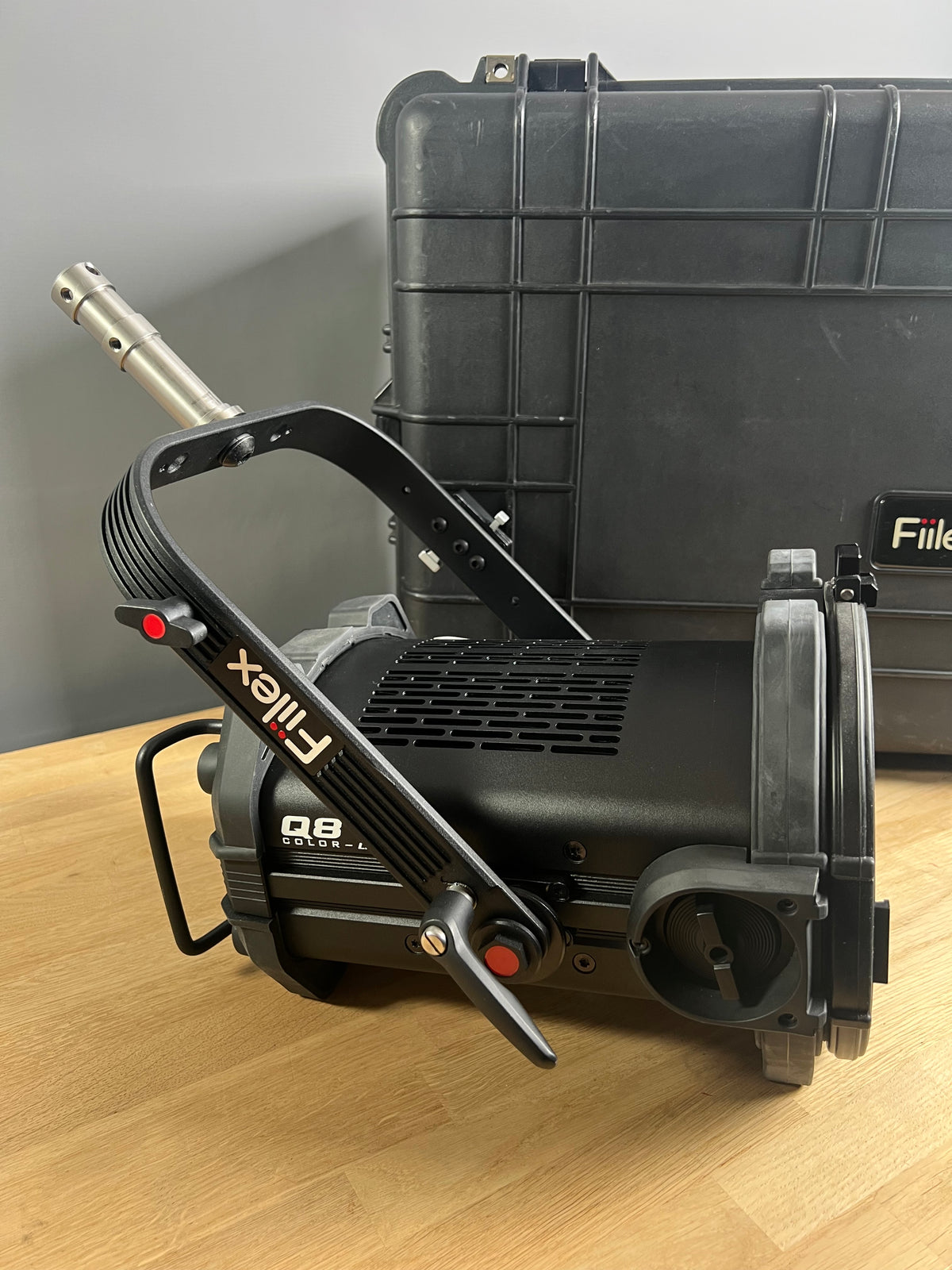

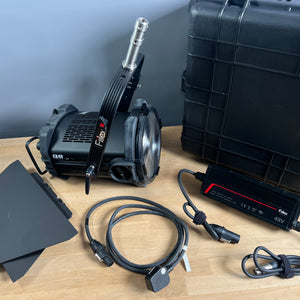

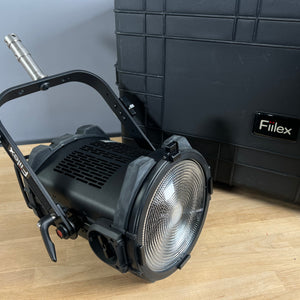

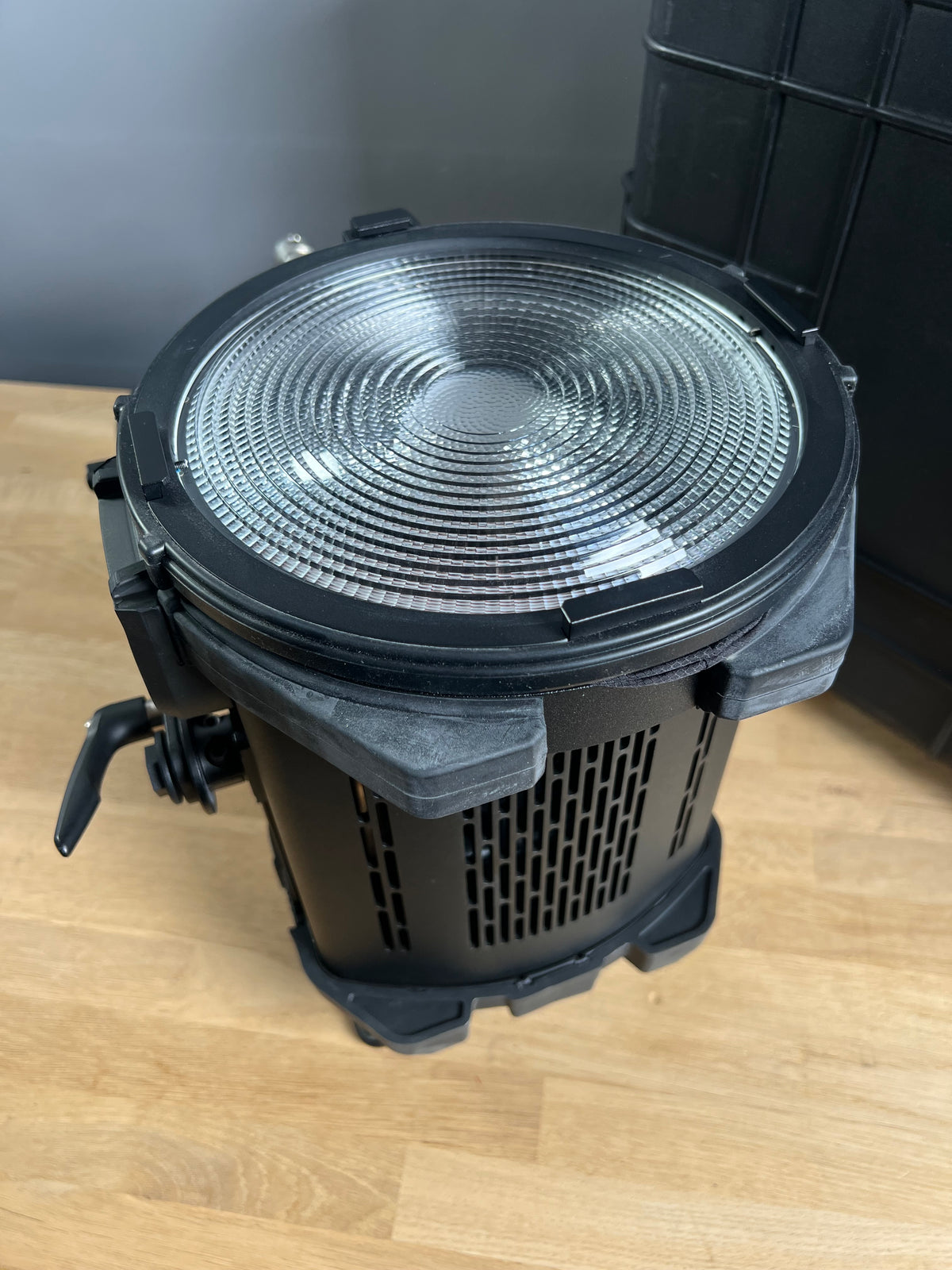

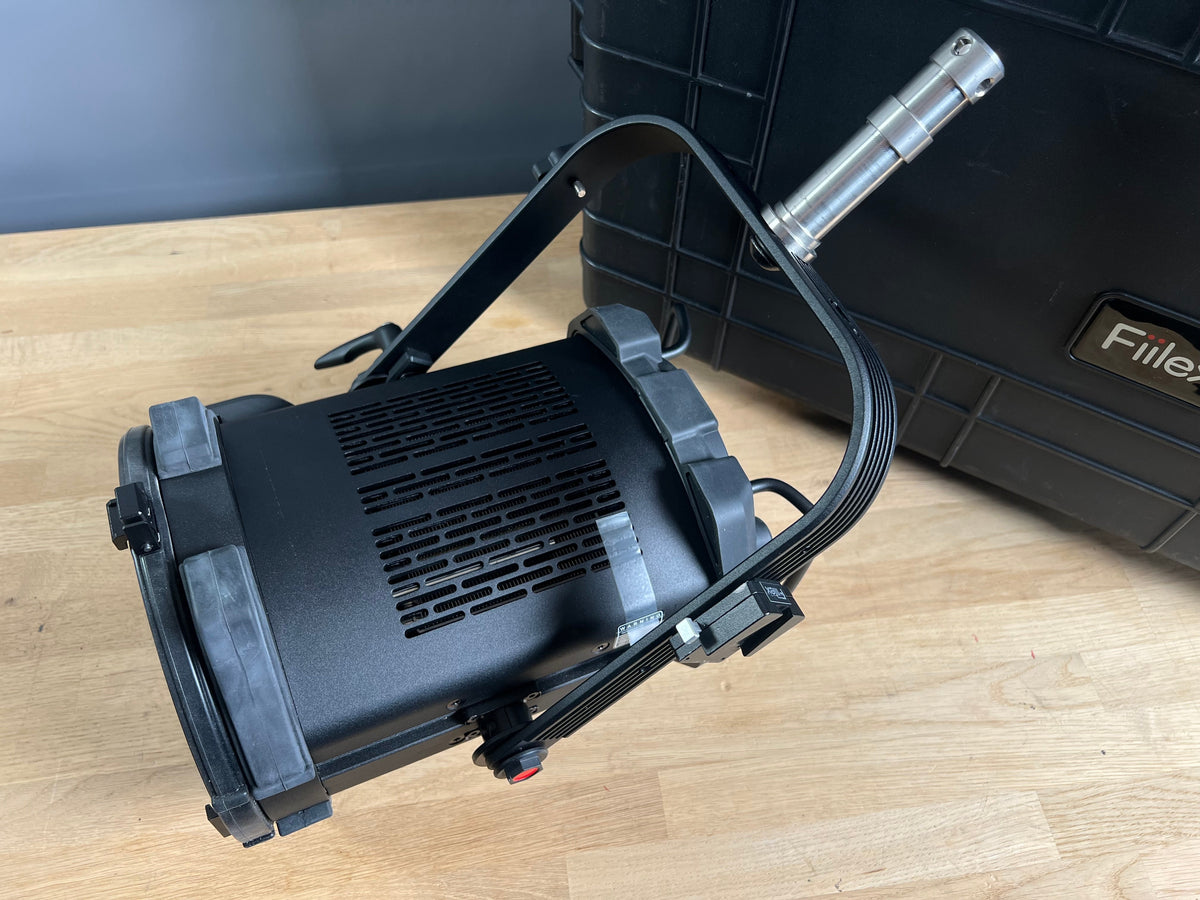

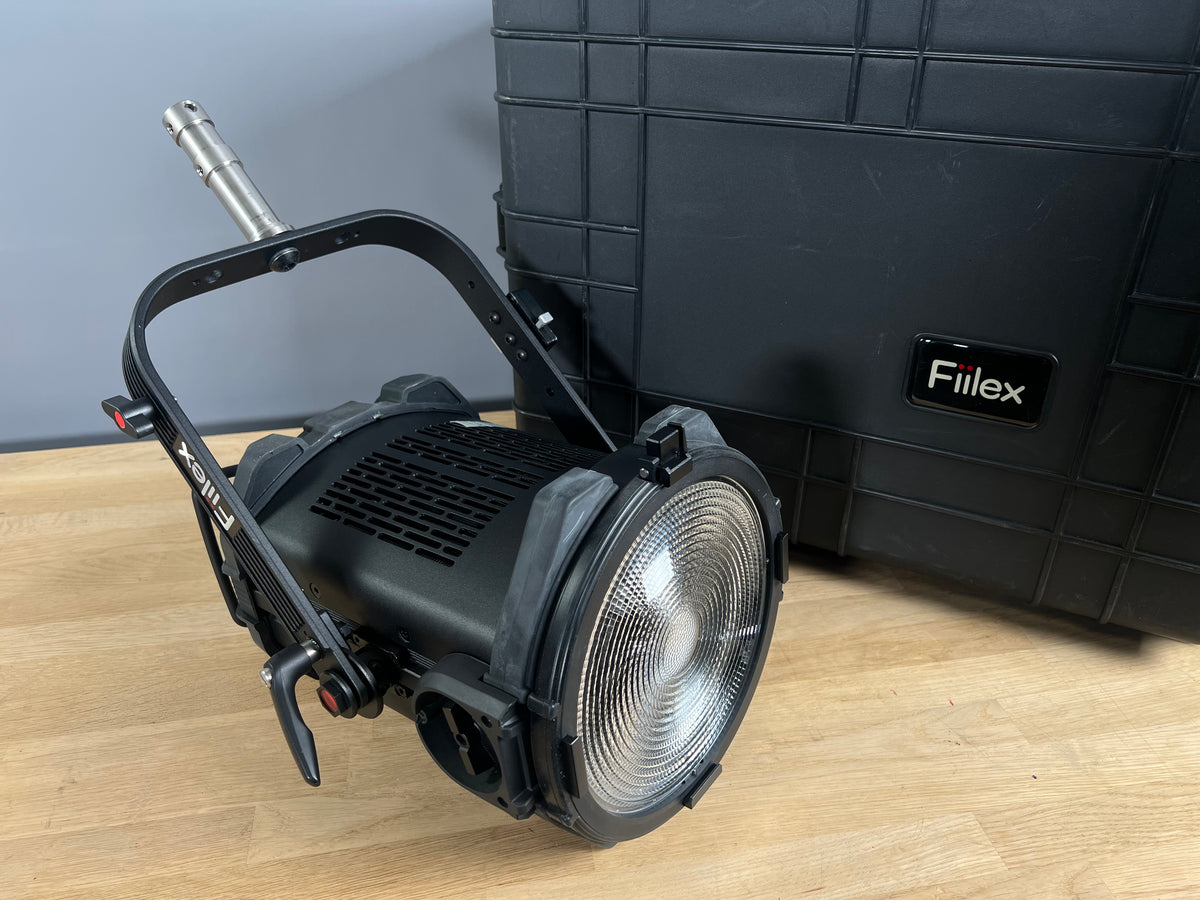

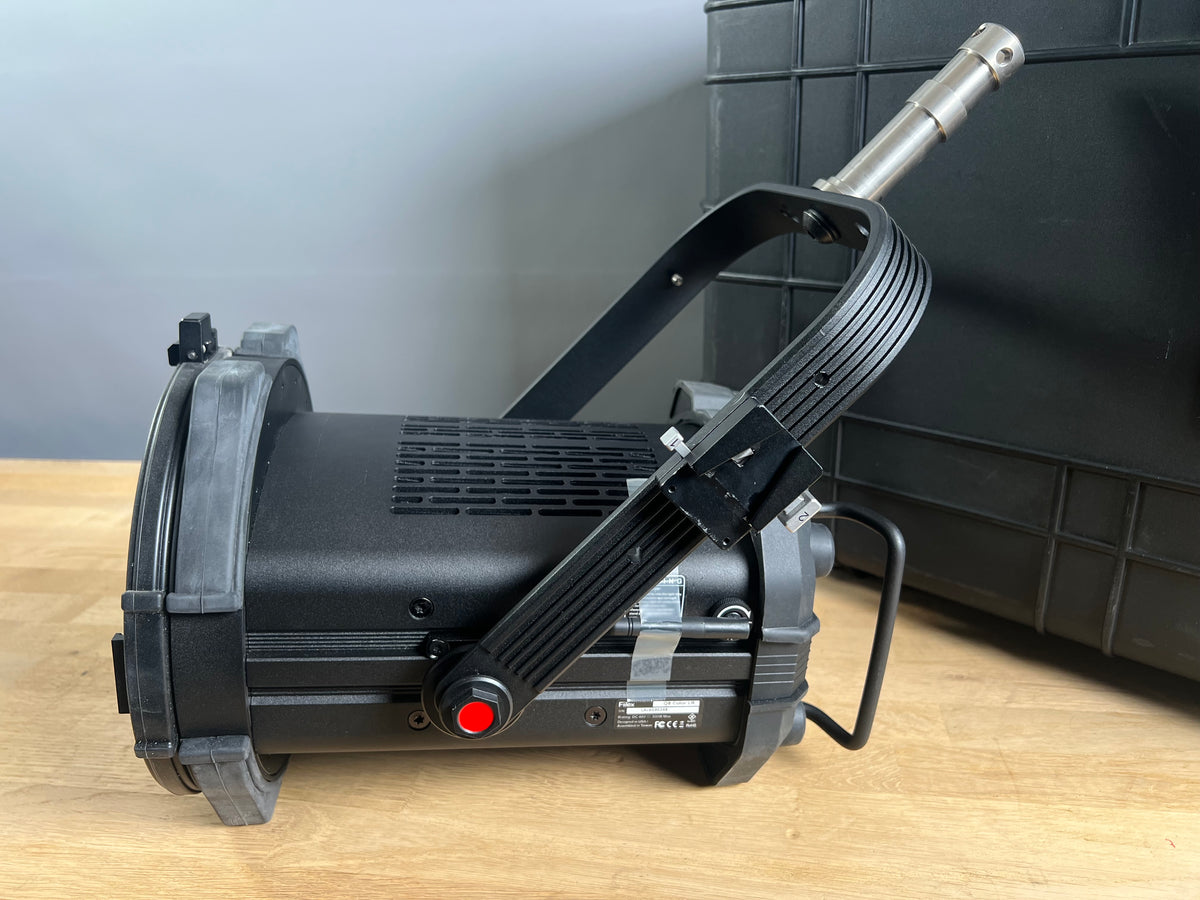

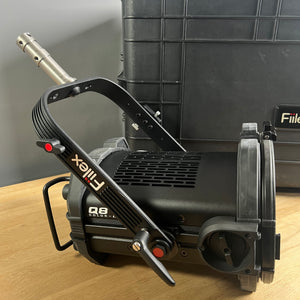

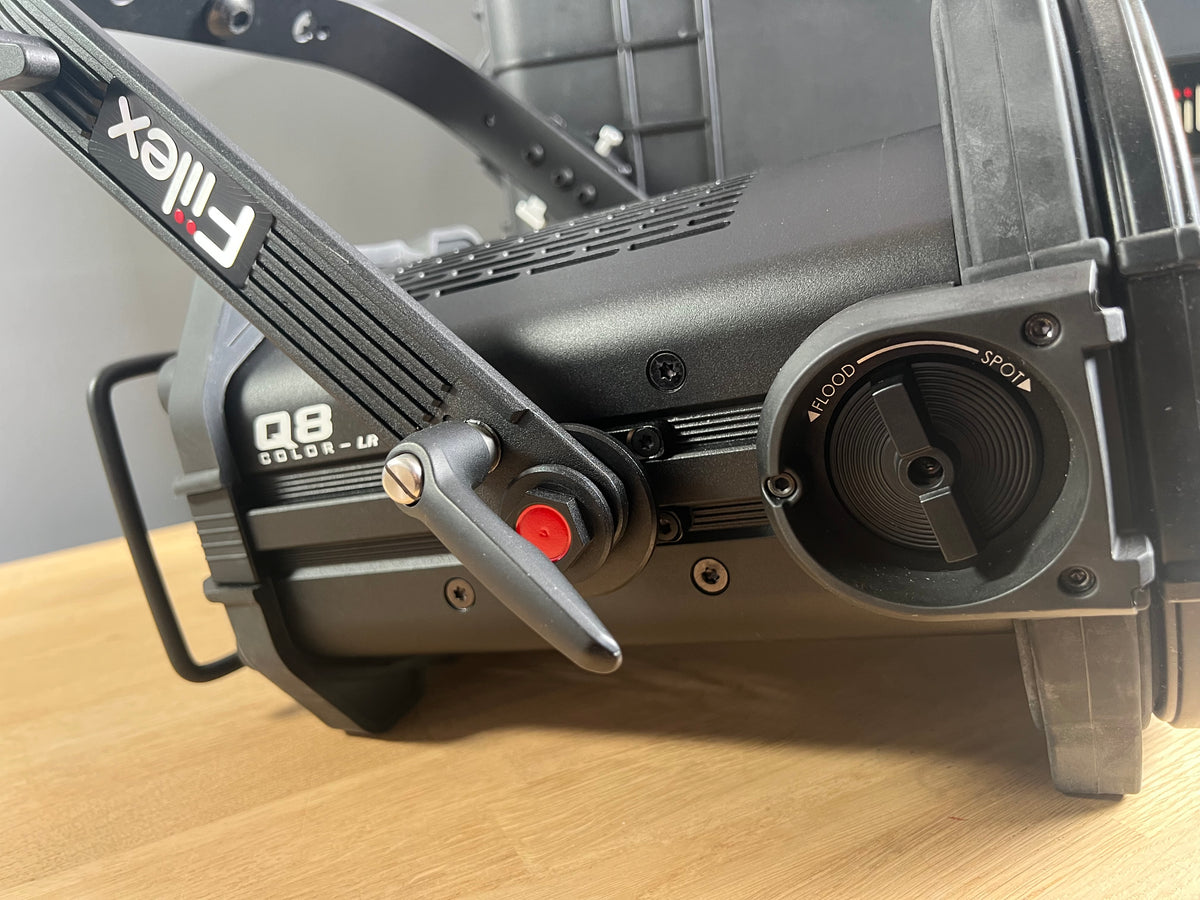

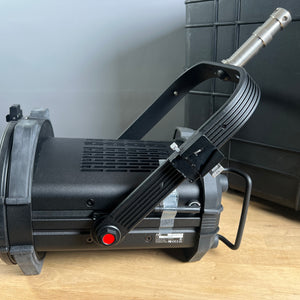

The Q8 COLOR is a 320W 8” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color fidelity and optical versatility that are superior to previous generations of LED fresnels. With an extremely wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q8 COLOR combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.

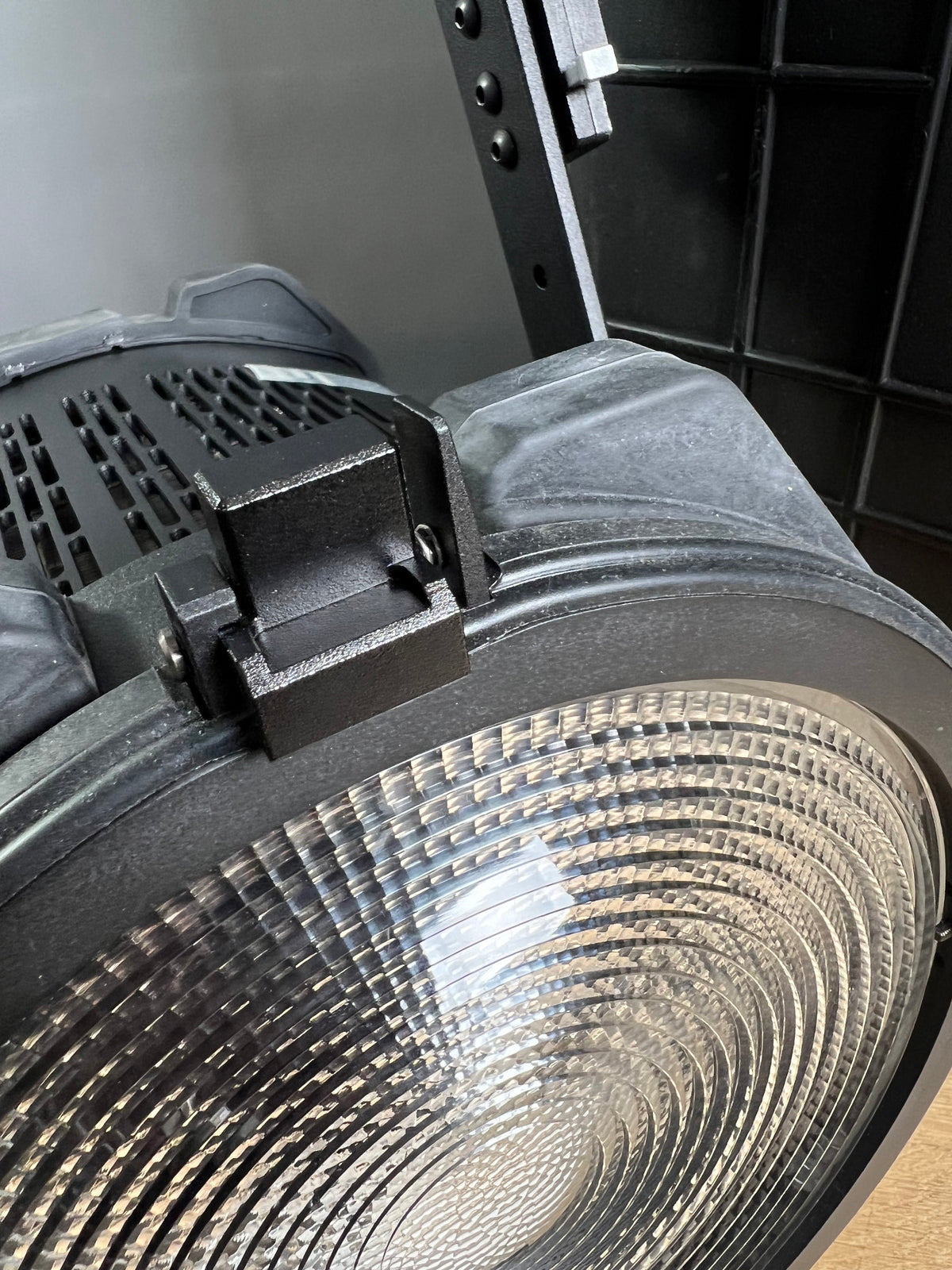

| Fresnel Diameter: | 8" |

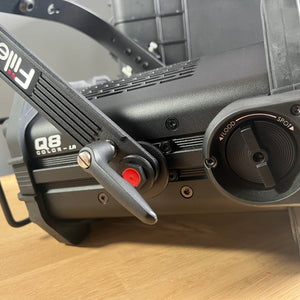

| Beam Angle: | 12°-62° |
| CCT Range: | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI: | 95 / 90 typical |
| Control Modes: | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming: | 100 - 0% flicker free |
| Dimming Modes / Curve: | Smooth, Sharp / Linear, Gamma |
| Light Engine: | DiCon Dense Matrix LED |
| Power Consumption: | 320W max AC | 300W max DC |
| BTUs/hour: | 1091 (BTUs/hour) max |

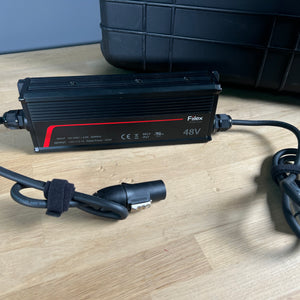

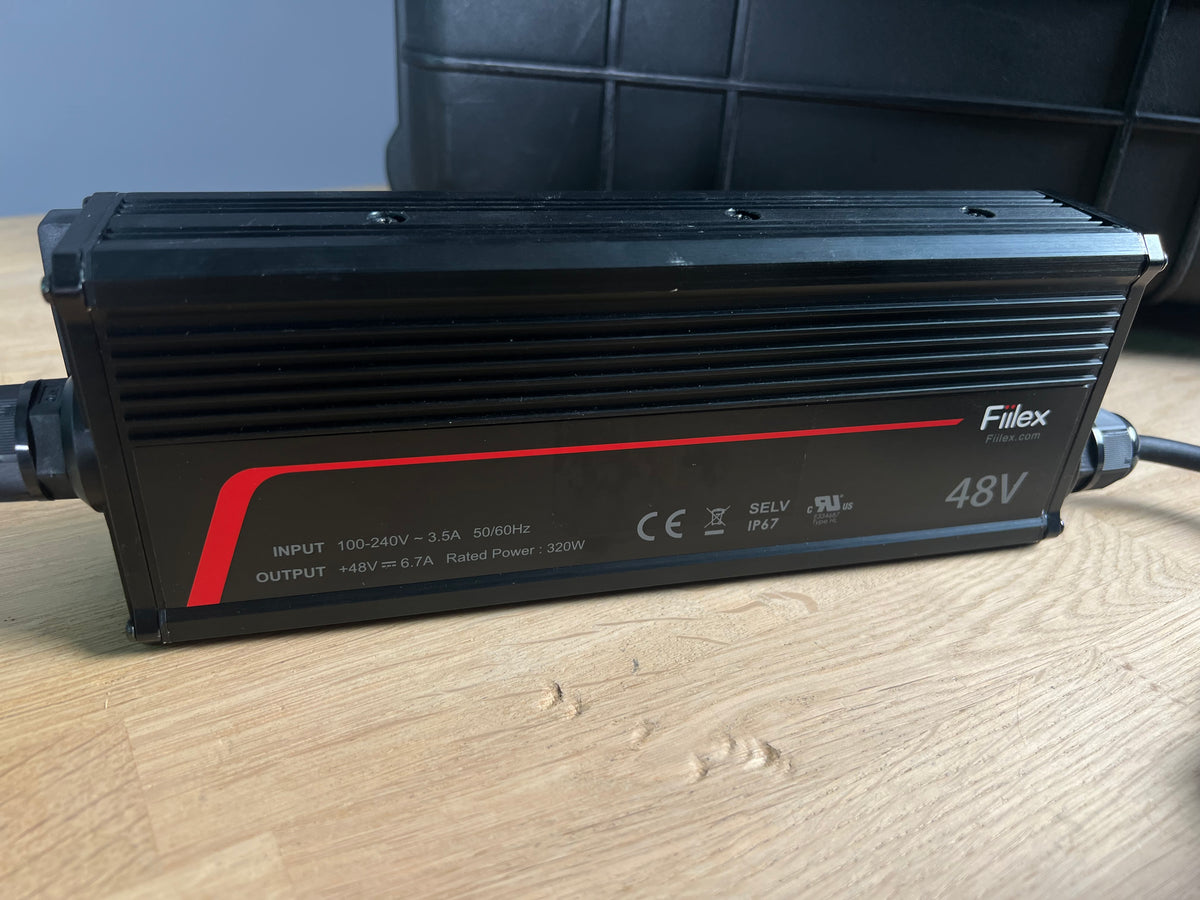

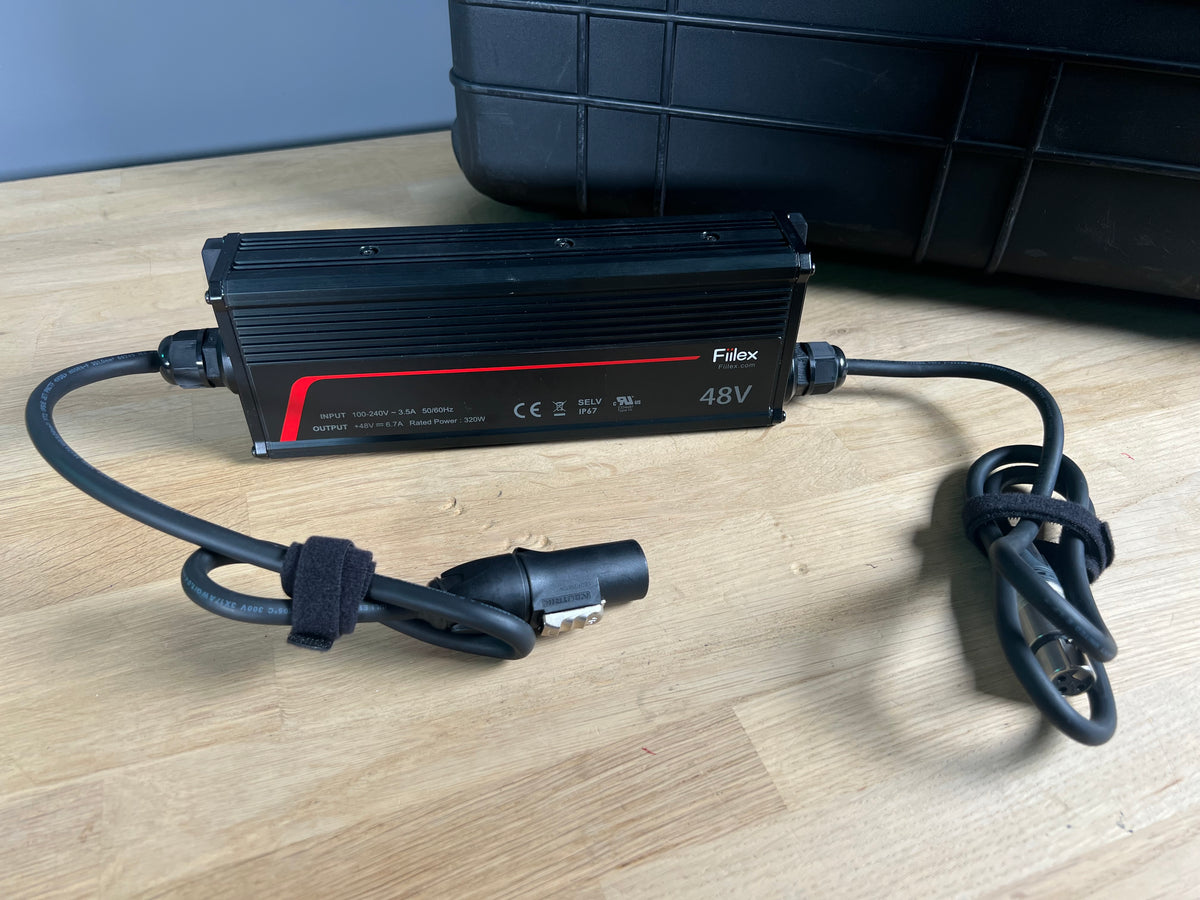

| DC Input: | 48V DC (via XLR-3) |

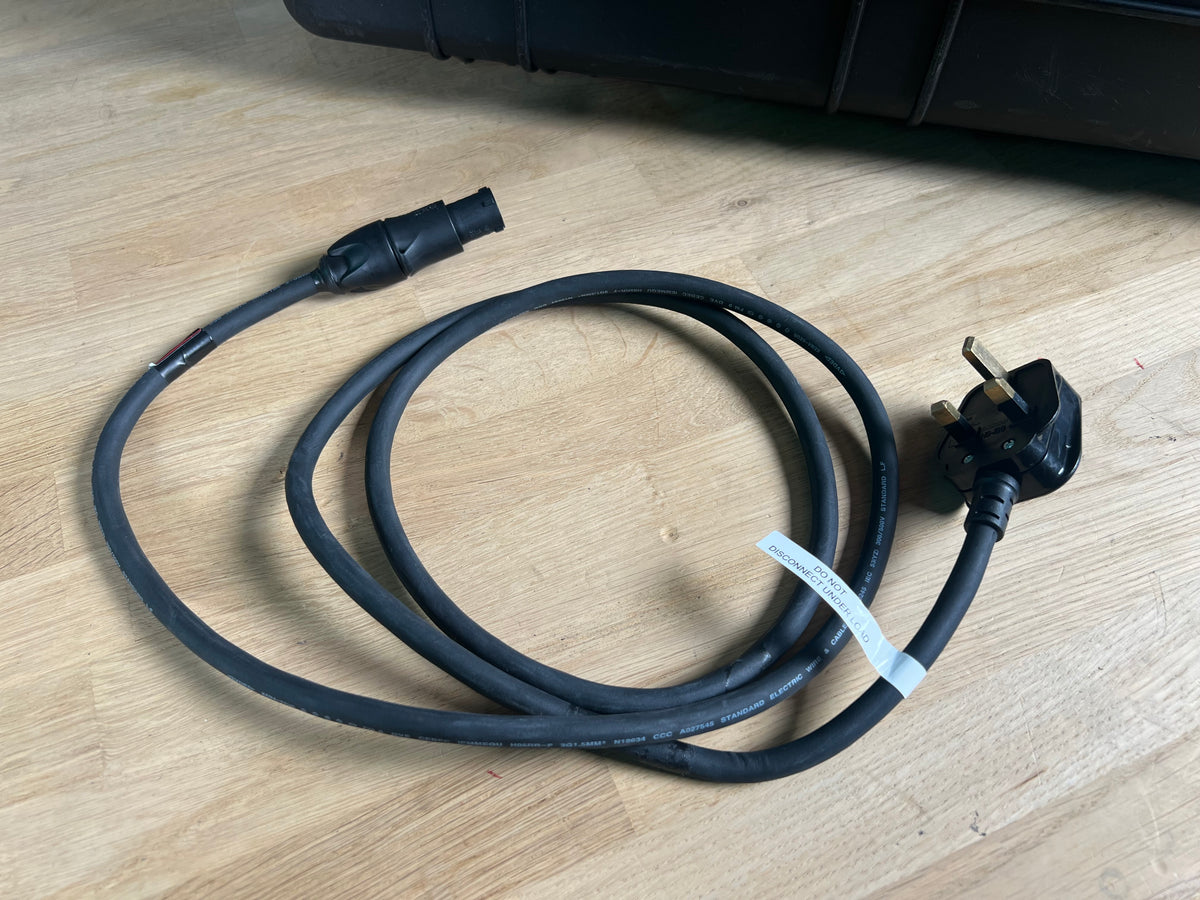

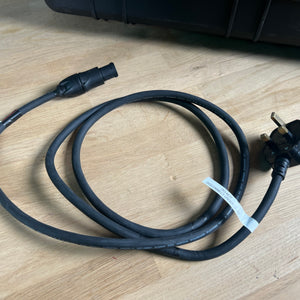

| AC Input: | 100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1) |

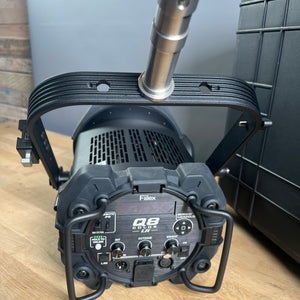

| DMX / RDM Port: | XLR-5 |
| Wireless Control: | Integrated LumenRadio CRMX TimoTwo |
| Ethernet: | sACN, ArtNet (via RJ45) |
| USB Power Output: | 5V/1A (via USB-A) |

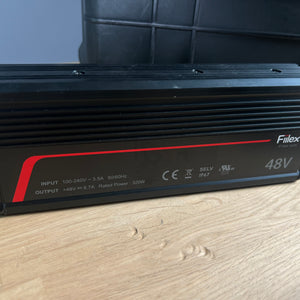

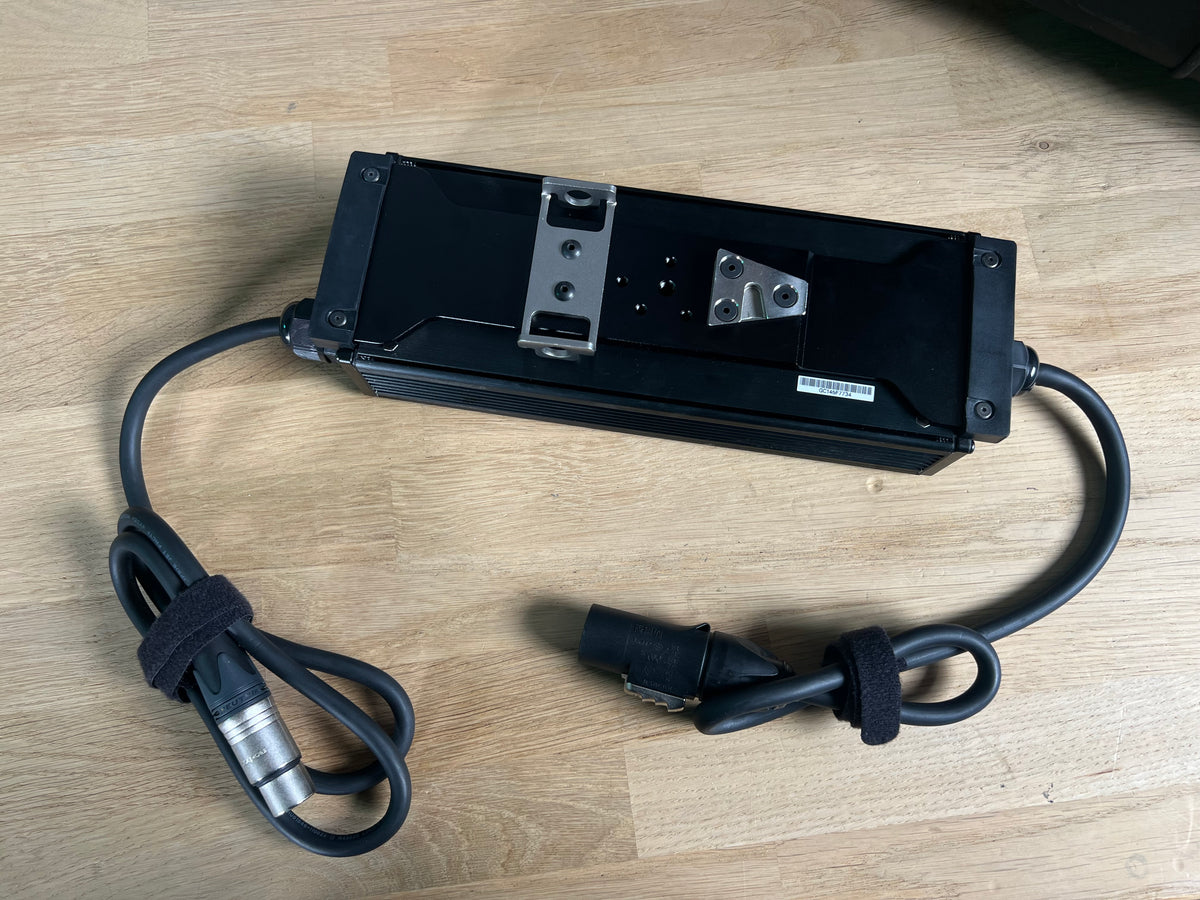

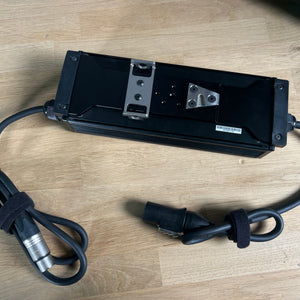

| Weight: | Fixture: 17 lbs / 7.7 kg (includes yoke) | Power adapter: 4.8 lbs / 2.2 kg |
| Dimensions: | 13.6” x 12.7” x 19.6” / 34.7cm x 32.3cm x 49.9cm |

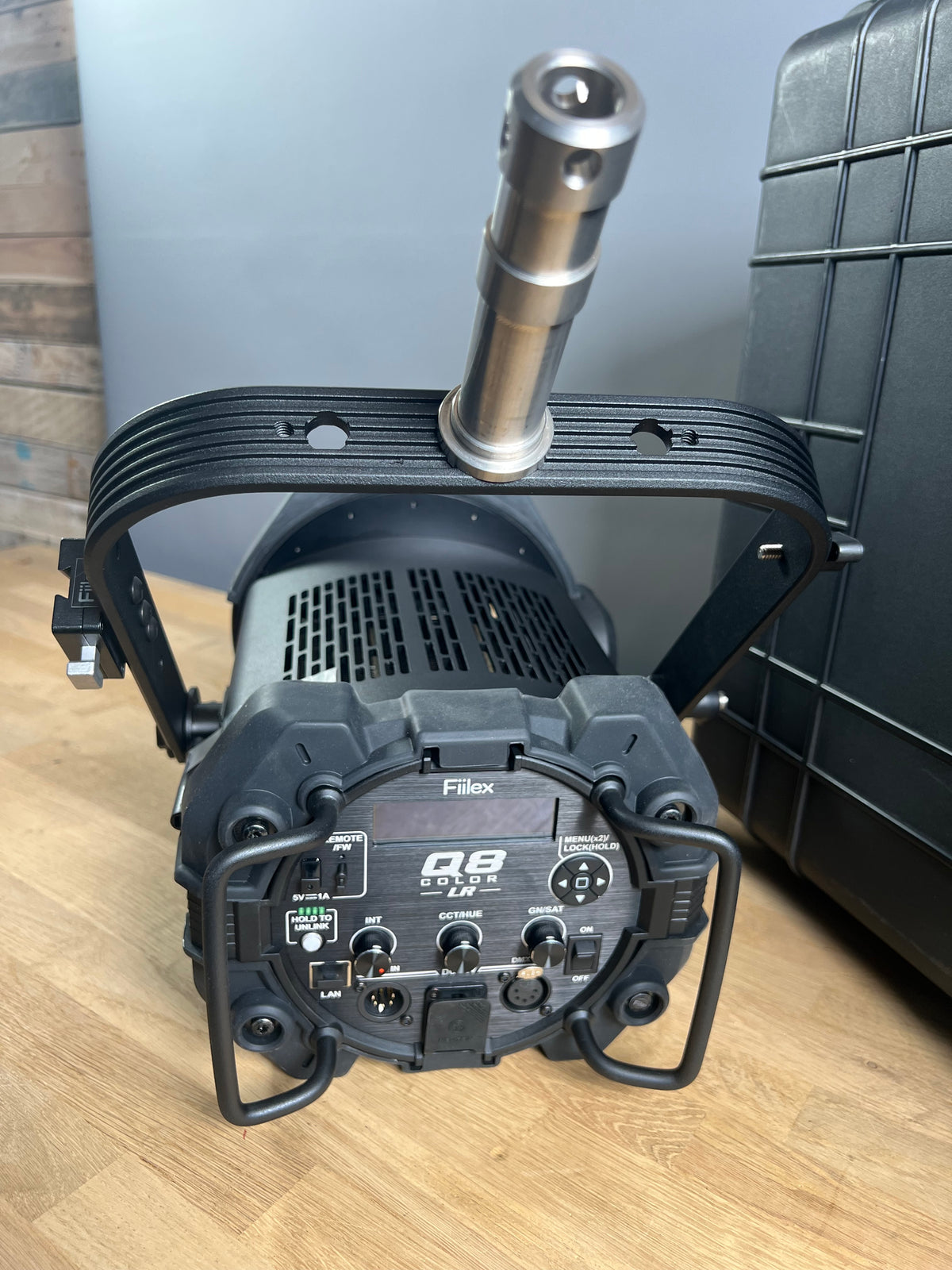

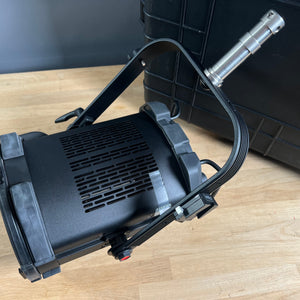

| Mount Type: | Combo (baby stud female / junior stud male) |
| IP Rating: | IP-X5 (water-resistant) |
| Thermal Design: | Controllable fan |
| Operating Temperature: | 0-40ºC / 32-104ºF |
| Approved Regulator Standards: | cETLus, FCC, CE, UKCA, RoHS, WEEE |
