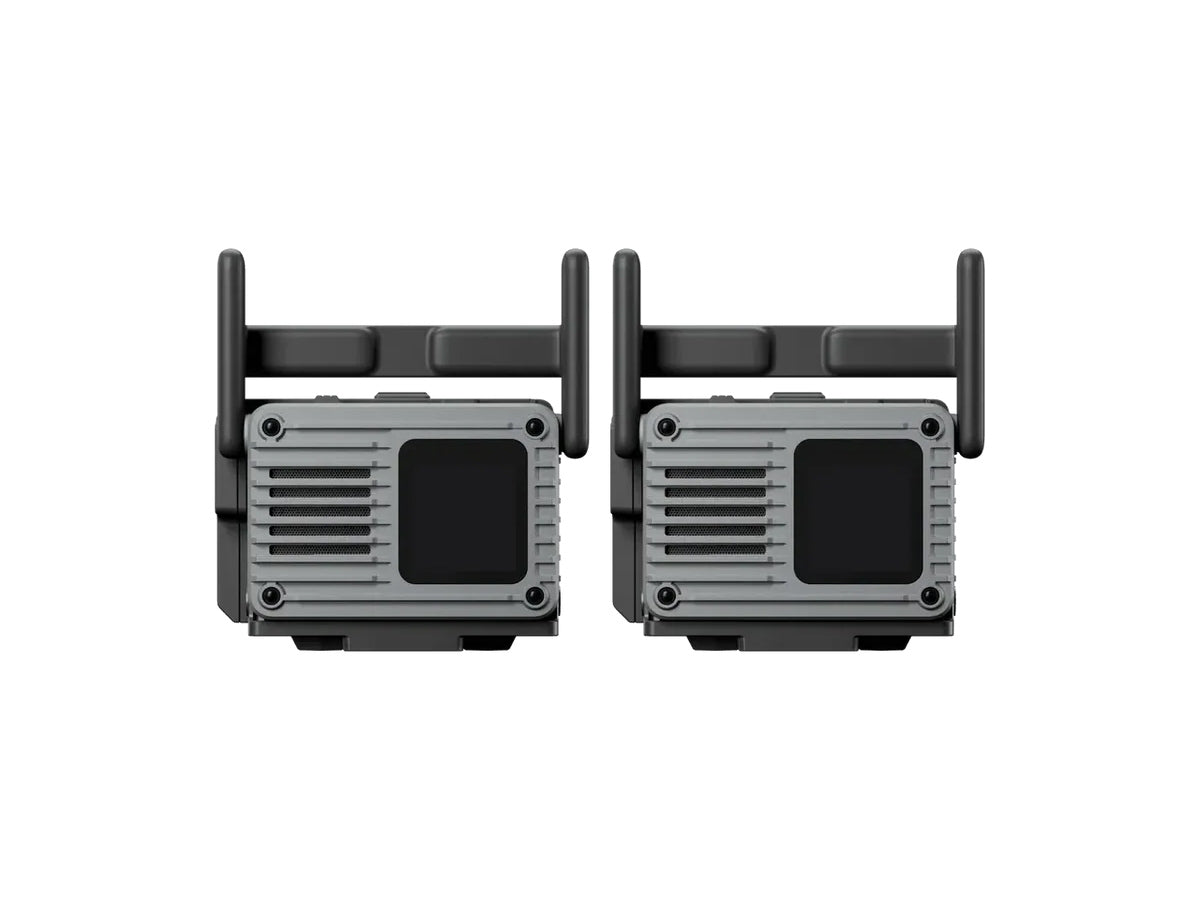

DJI SDR Transmission 2 Combo
DJI SDR Transmission 2 Combo
£559.00 inc VAT
£559.00 inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
-
1 TX to 8 RX With Control - A single transmitter can distribute its video feed to up to eight receivers, with remote control available for each connected unit. Directors and DPs can monitor a high-resolution feed, while camera operators and focus pullers can remotely adjust supported camera settings and functions.
-
Multi-Group Transmission - Multiple transmitters and receivers can work together within the same production environment, supporting up to five transmitters and 40 receivers simultaneously. This provides a flexible solution for complex multi-camera productions while maintaining stable wireless video transmission and 4K image quality.
-
DCI 4K Monitoring - SDR Transmission 2 supports DCI 4K/60fps video with 10-bit HDR and H.265 encoding at bitrates of up to 50 Mbps. The result is highly detailed footage with smooth colour transitions and clearly defined highlights and shadows, providing consistent image quality across multiple camera feeds.
-
Up to 4 km Range - With transmission distances of up to 4 km under suitable conditions, the system provides greater freedom for demanding production environments. From large stadiums and dense forests to vehicle-mounted cameras and FPV drone applications, it provides a reliable wireless connection across extended distances.
-
Latency as Low as 35 ms - Despite its high-quality video capabilities, latency can be as low as 35 ms. This helps keep live monitoring and remote commands responsive, including operations such as focus adjustments and gimbal movements.
-
TX/RX Switchable - Switch between transmitter and receiver operation whenever your production requires it. There is no need to determine your TX-to-RX configuration in advance, allowing each unit to adapt to the requirements of the shoot.
-
Approx. 136g Unit - The transceiver features one HDMI port and two USB-C ports. At approximately 136 g, its lightweight construction helps reduce the load on handheld gimbals while making it easy to integrate into a wide variety of camera setups.
-
Expansion Plate - The Expansion Plate provides one SDI, one HDMI and four USB-C ports. It also supports SDI metadata transmission from compatible professional cinema cameras, including systems from ARRI and RED.
-
Transceiver Cage - For vehicle-mounted and outdoor applications, the Transceiver Cage provides additional protection and multiple mounting points. It securely attaches the transceiver to a wide range of gimbals, rigs and other production equipment.
-
Compact Systems - SDR Transmission 2 integrates with DJI RS series stabilizers, providing a streamlined combination of wireless monitoring and gimbal control. Through the DJI Ronin app, users can monitor the camera feed, operate the gimbal remotely and start or stop recording from a compatible smartphone.
-
Pro Productions - Support for DJI Ronin 2 and Master Wheels enables precise remote control even when using larger cinema cameras on demanding setups. Operators can remain at the monitoring position while controlling camera movements on vehicle mounts, crane rigs and other complex configurations.
-
Action Angles - Connect supported Osmo Action or Osmo Pocket series devices via USB-C to introduce additional camera angles for sports, reality productions and other challenging shooting environments. Their compact form factor makes them ideal for capturing perspectives that may be difficult to achieve with larger camera systems.
-
Camera Switching - Switch between connected camera feeds without the need to restart the system, scan for devices or establish a new connection. Camera feeds can be changed directly from the transceiver or through the DJI Ronin app, helping save valuable time during production.
-
Monitor Feed - Send an ultra-high-definition, low-latency video feed to professional monitors through SDI, HDMI or DP. This allows multiple monitoring stations to access a clean, high-quality image from the connected camera.
-
Mobile Feed - For mobile monitoring, connect a smartphone or tablet to the receiver via USB-C and view the feed through the DJI Ronin app. A wired connection provides a stable, high-bitrate feed for monitoring while moving around the set.
-
NP-F Power Supply - The transceiver supports standard NP-F battery types with an operating voltage range of 6.8 to 8.4 V, providing a familiar power solution for professional camera rigs.
-
USB-C Power Supply - SDR Transmission 2 can also be powered through USB-C using a standard PD-compatible charger. Power input is rated at 15 V/9 V and 3 A, depending on the connection method.
-
Gimbal Power - The integrated power supply design allows the transceiver to be mounted to and powered directly by compatible DJI equipment, including DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels. This can remove the need for a separate battery in compatible configurations and helps keep the overall camera setup streamlined.
- 1 TX to 8 RX With Control, Multi-Group Transmission
- Auto Channel 2.0 for Seamless, Stable Feed
- TX/RX Switchable for Flexible Deployment
- Pairing-Free Connection for Fast Camera Switching
- Supports Ronin Monitoring & Control
- DCI 4K/60fps 10-bit HDR Wireless Transmission
| TRANSCEIVER | |
| Weight: | Approx. 136 g (including antennas) |
| Dimensions: | 76×61×25 mm (L×W×H, excluding antennas and Cold Shoe Adapter) |
| Ports: | HDMI: Input/output The SDI port is available on the DJI SDR Transmission 2 Expansion Plate, which is sold separately. |
| Operating Frequency: | Non-DFS Frequency Band: The 5.8 GHz and DFS frequency bands are prohibited in certain countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used. |
| Transmitter Power (EIRP): | 2.400-2.4835 GHz: 5.150-5.250 GHz: 5.250-5.350 GHz: 5.470-5.725 GHz: 5.725-5.850 GHz: |
| Maximum Bandwidth: | 40 MHz |
| Maximum Encoding Bitrate: | 50 Mbps The maximum encoding bitrate is 50 Mbps, measured under controlled conditions. Actual encoding and transmission bitrates may vary depending on the environment and transmission distance. |
| Power Consumption: | Standby (no external devices connected): 1T1R Transmission*: * Measured at a room temperature of 25° C (77° F), at a distance of approximately 10 meters, in a 1T1R setup, using PD for power supply. |
| Power Supply: | USB-C Power Supply Type 1: 15 V, 3 A (PD protocol*) * A PD power adapter with an output of 65 W or above is required. |
| Video I/O Formats: | DCI 4K: 23.98/24/25/29.97/30/50/59.94/60fps 4K video format is only supported via the HDMI port and the bottom USB-C port of the transceiver main unit. |
| Audio I/O Formats: | Input Audio Format: SDI embedded, HDMI embedded, DP embedded Output Audio Format: 16-bit, 48 kHz, stereo PCM |
| Video Transmission System: | SDR |
| Minimum Video Transmission Latency: | 35 ms Camera and screen display latency are not included. Measured when shooting 1080p/60fps and 4K/60fps video. |
| Video Coding Format: | H.265 |
| Maximum Transmission Distance: | 4 km (CE) Measured under CE compliance using one TX and one RX in open, unobstructed, and interference-free controlled conditions. |
| Operating Temperature: | -10° to 40° C (14° to 104° F) |

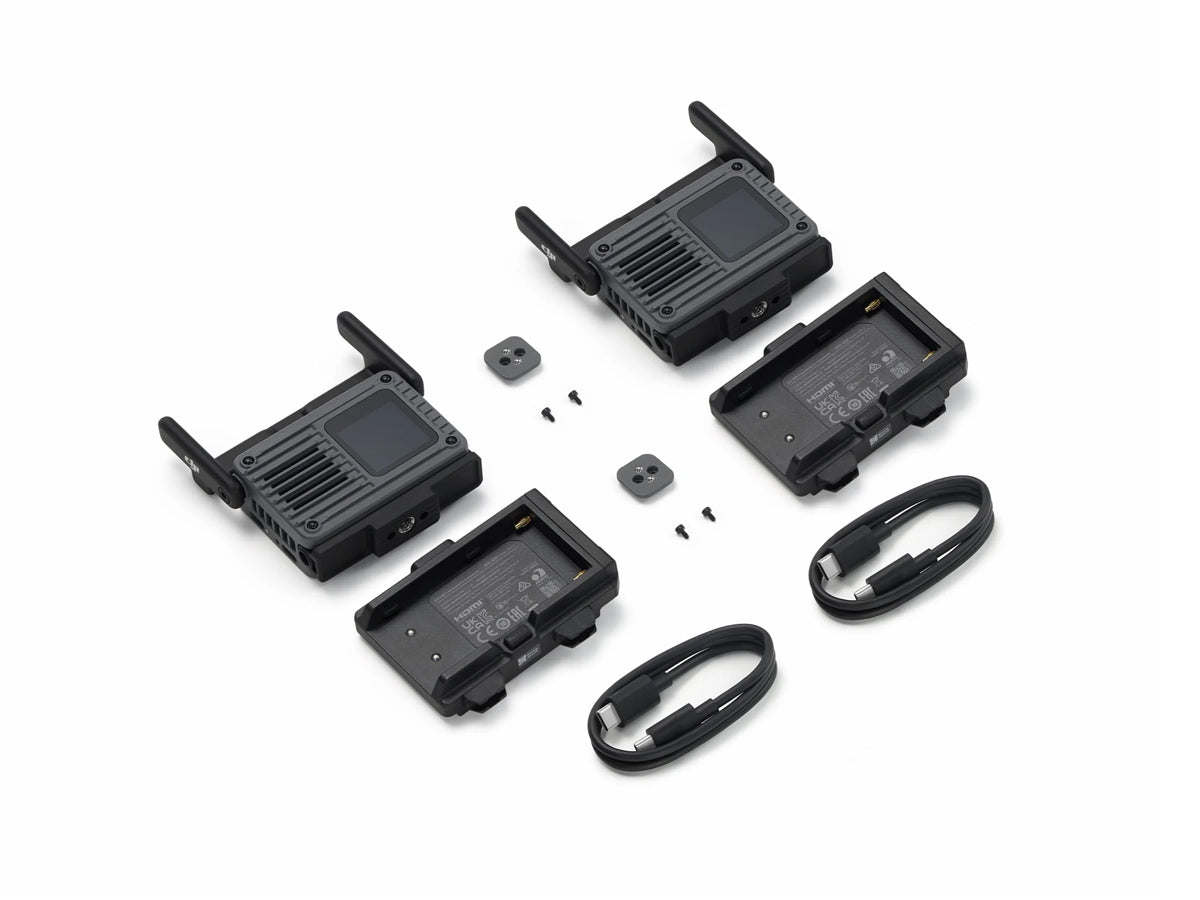

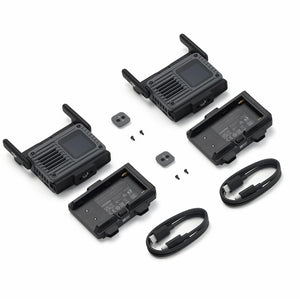

- 2x DJI SDR Transmission 2 Transceiver
- 2x DJI SDR Transmission 2 Camera Cold Shoe Adapter
- 2x DJI SDR Transmission 2 NP-F Battery Adapter
- 2x Firmware Update Cable (USB-C to USB-C, 50 cm)
