Desview R7III 7 Inch On Camera Monitor

Desview R7III 7 Inch On Camera Monitor

SKU: DES-R7III
£241.66 ex VAT
£289.99 inc VAT
ex VAT £241.66 ex VAT
£289.99 inc VAT
Sale Sold out
Stock in transit - email for accurate lead times
Shipping calculated at checkout.
View full details Liquid error (sections/main-product line 1316): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Desview R7 III Overview

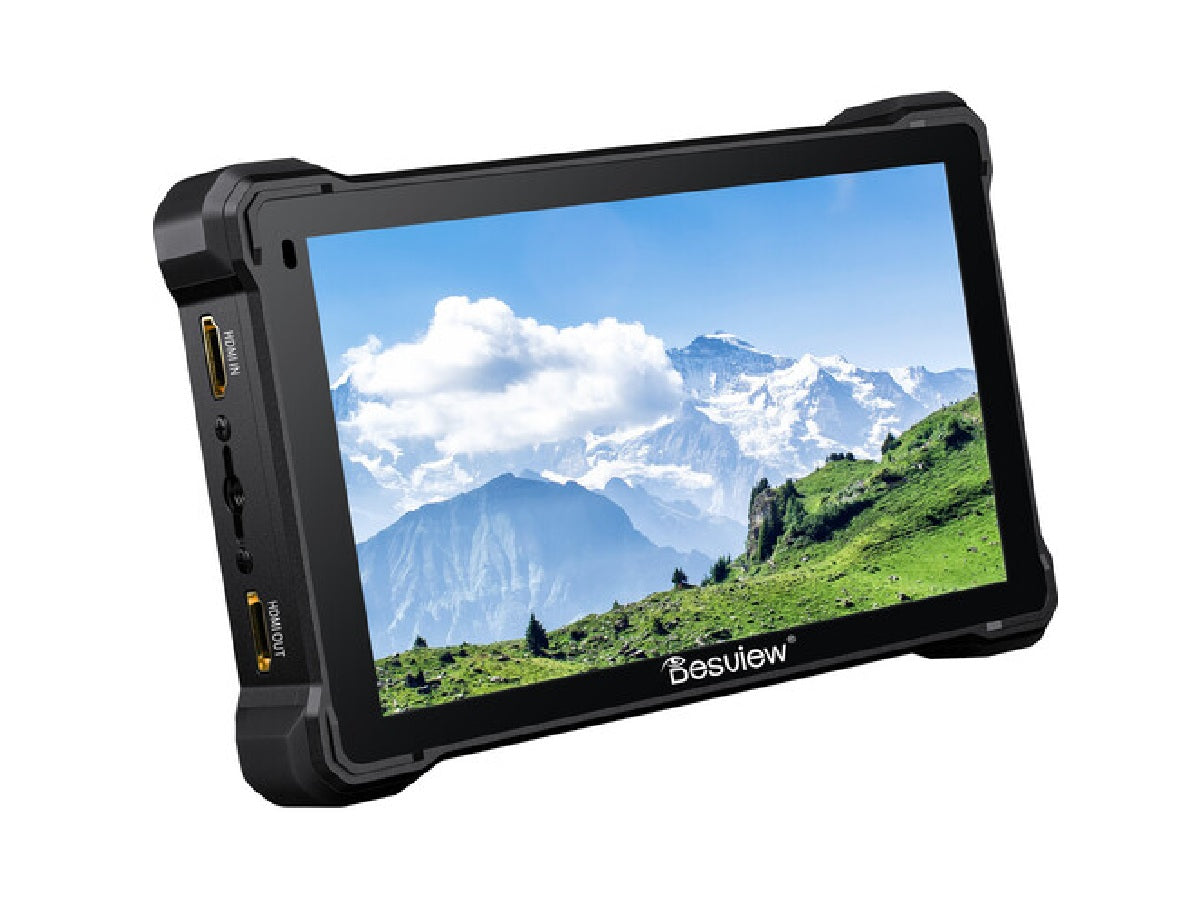

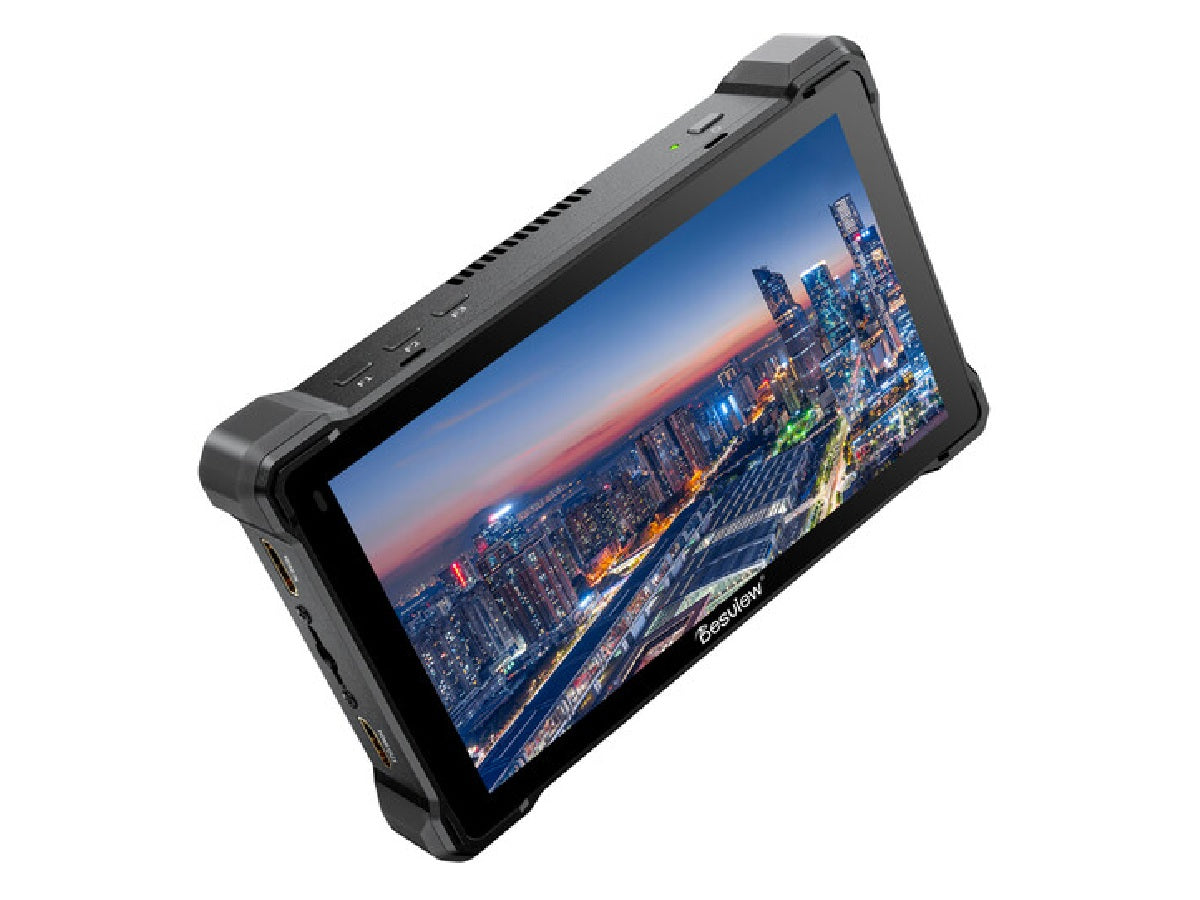

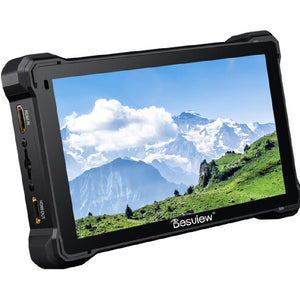

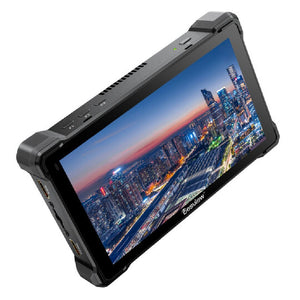

The R7III 7" Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O from Desview enables you to view your video capture using a sharp 7" IPS LCD with 1920 x 1080 resolution, 2800 cd/m² of brightness, 1000:1 contrast ratio, 10-bit color, and touchscreen control. Features include a viewing angle of 178°, HDMI 2.0 input and output, LUT import via the USB-A port, a 3.5mm headphone output, and support for up to UHD 4K60 video input and output with embedded audio. There are numerous imaging tools built into the monitor, including vectorscope, waveform, and zebra, among many others.

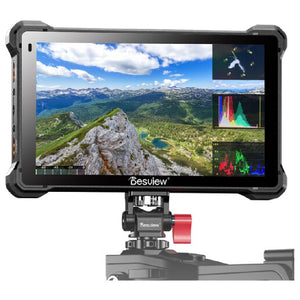

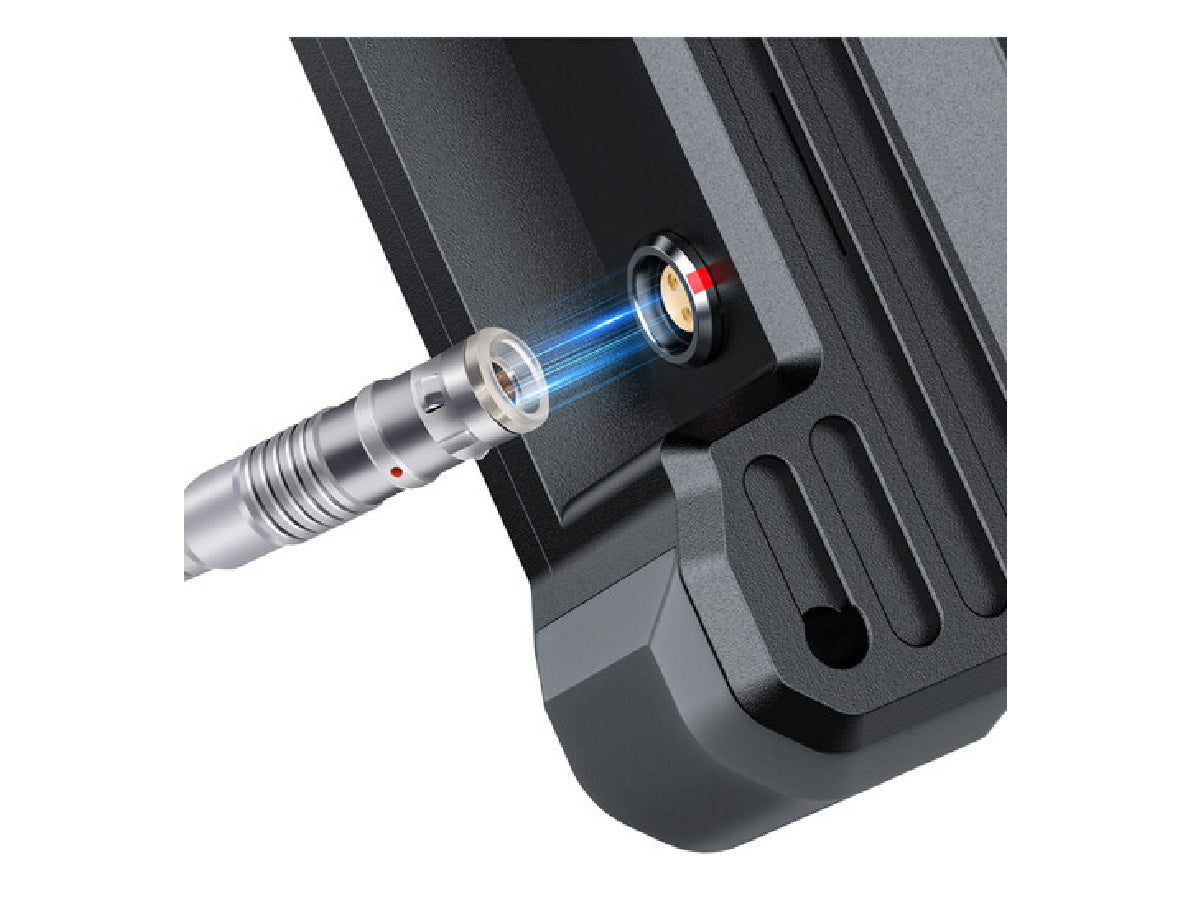

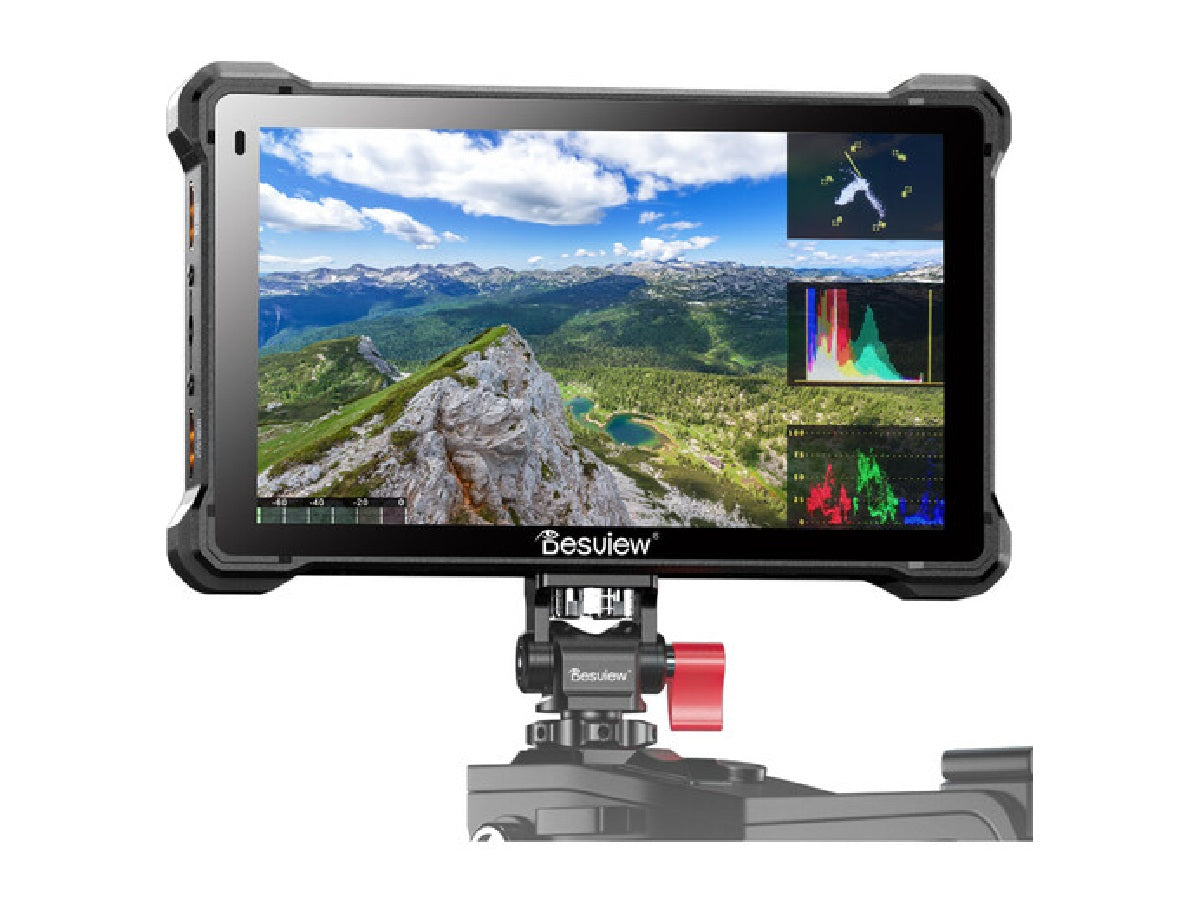

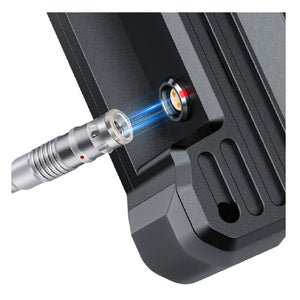

The R7III is powered using the integrated dual L-series battery plate, via USB-C, or via a separately available 2-pin LEMO-type adapter. The monitor also features an 8 VDC barrel output for powering your camera using the camera batteries using a separately available dummy battery or cable. Mount the R7III on your rig using the 1/4"-20 bottom or side thread and a support arm or the included tilting monitor mount.

Ultra-High Brightness
The R7III features a 2800 cd/m² ultra-high brightness LCD for clear visuals in darkness or direct sunlight.
High-Resolution Display
The upgraded display supports up to UHD 4K60 input and loop output for accurately viewing HDR imagery with high frame rates.
Professional Interfaces
The monitor features HDMI 2.0 inputs and outputs, 3.5mm headphone output, USB-C power, and USB-A firmware and LUT import.
Dynamic Monitoring
The latest HDR PQ and HLG curves are supported for displaying rich colors and smooth transitions. It also features a film-grade color gamut with 100% DCI-P3 coverage, supporting true-to-life color with 10-bit color depth.
3D LUTs
The monitor includes built-in 3D LUTs for you to apply looks to your footage, and it also allows you to import your own custom 3D LUTs using the USB-A port.
Power Options

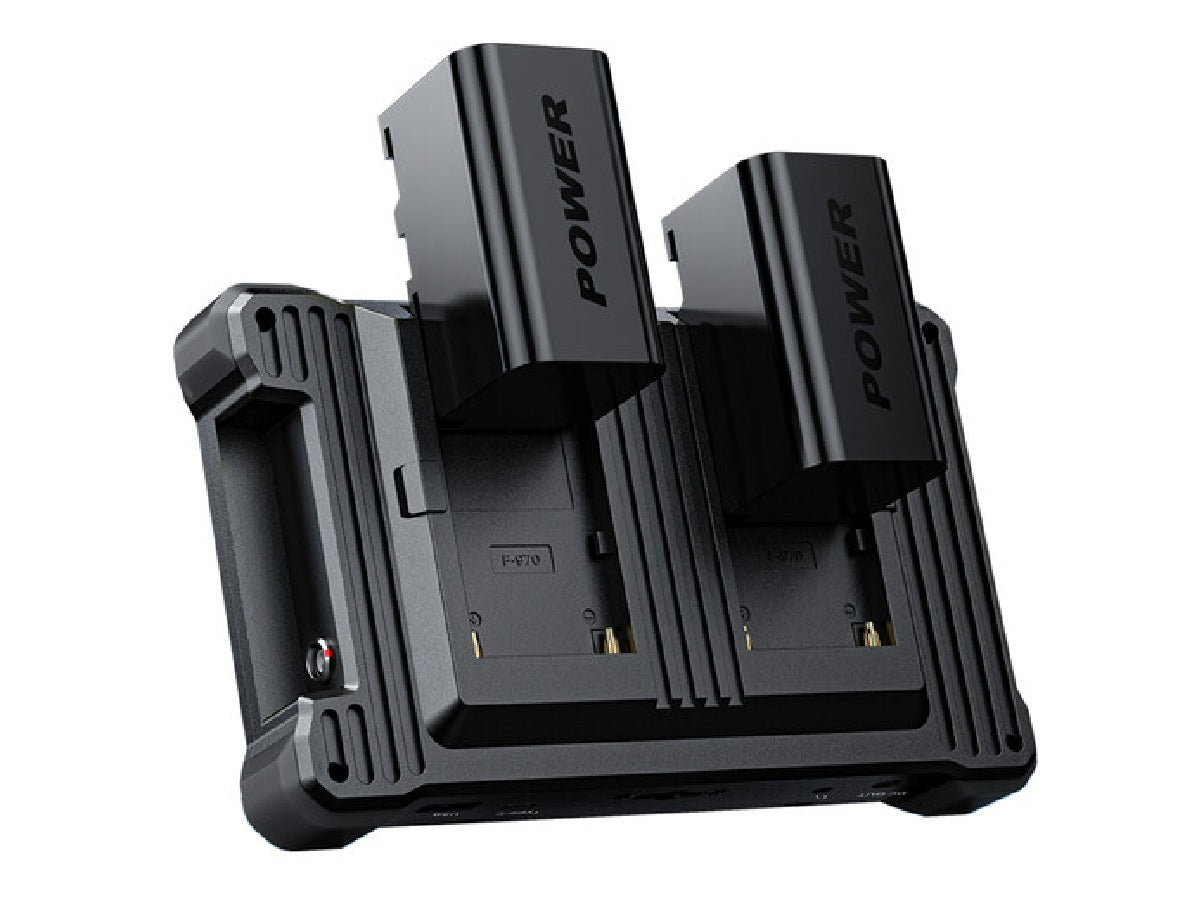

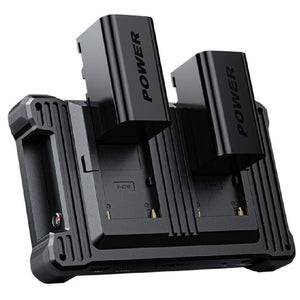

The dual L-series battery plate allows you to power the monitor using up to two L-series batteries, and it also supports USB-C power input, 2-pin LEMO-type input, and it features an 8 VDC barrel output to also power your camera or other accessories.
Intelligent Touch Control
You can control settings on the monitor using the touchscreen, and it supports multi-finger zoom and touch sliders for adjustments.
Numerous Image-Assist Functions

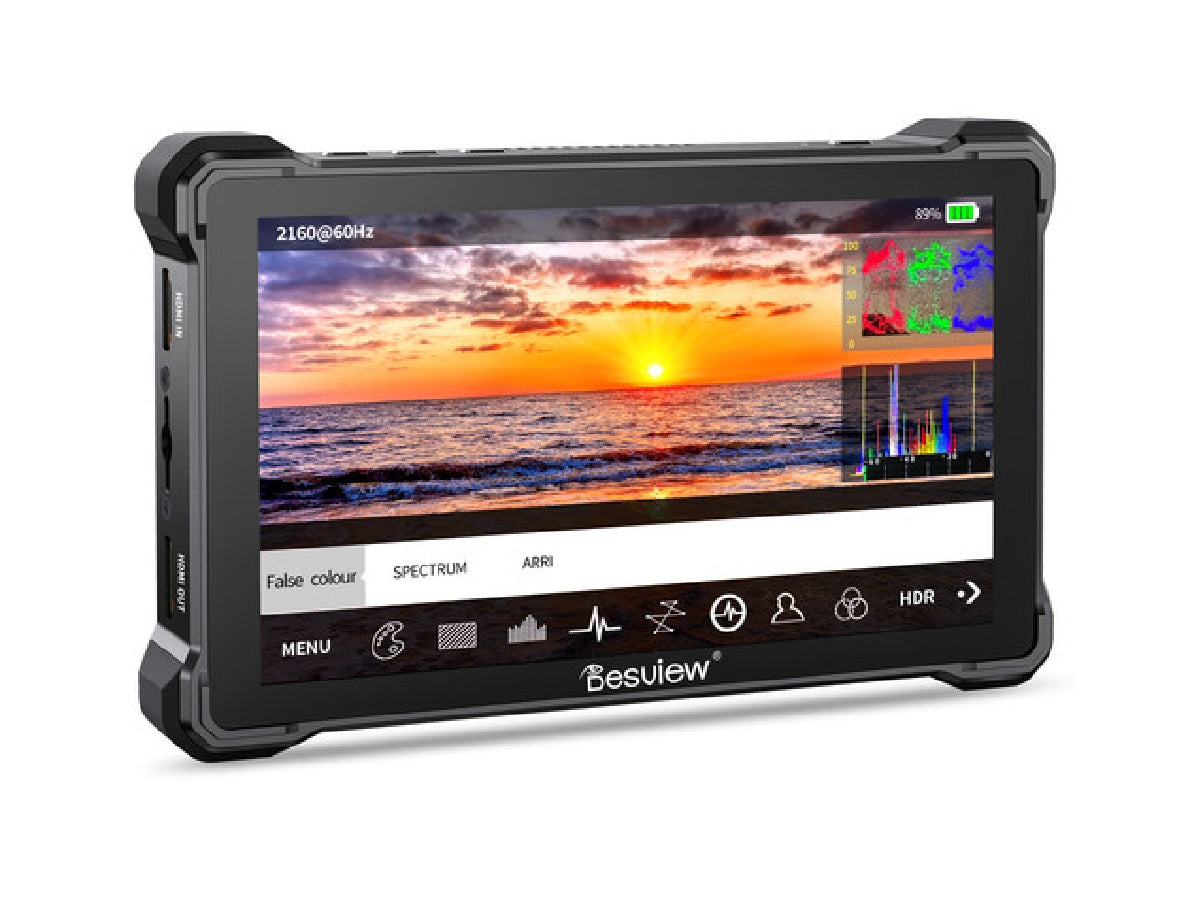

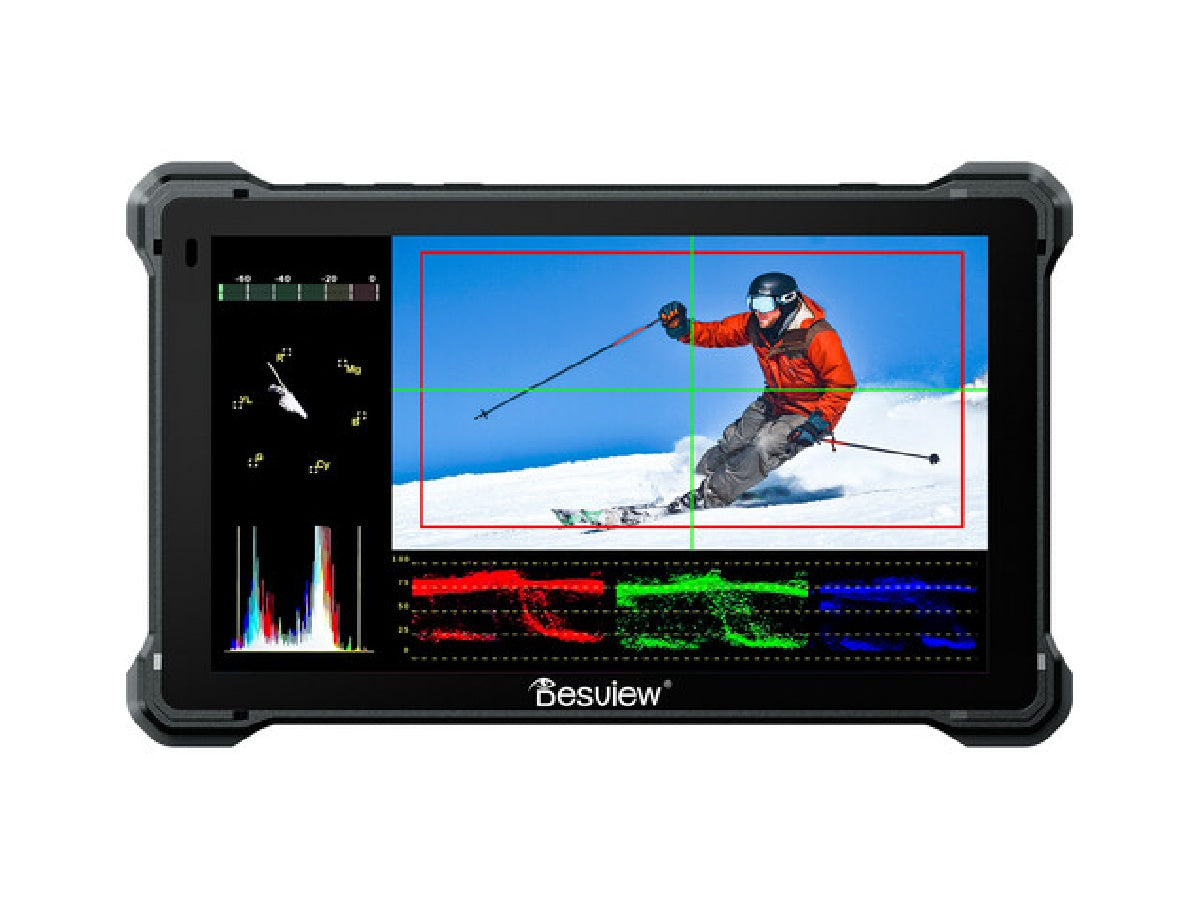

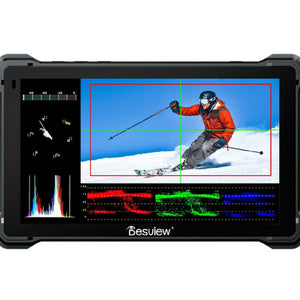

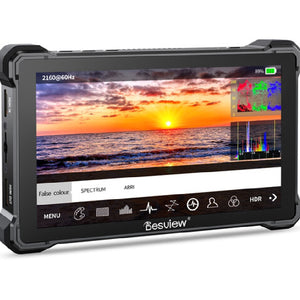

The firmware includes a set of image assist functions such as waveform, vectorscope, audio meters, HDR, aspect ratio, histogram, color temperature, peak focus, false color, distortion, zebra, freeze frame, and more.
Key Features
  • 7" 1920 x 1080 Touchscreen Display
  • 2800 cd/m² Brightness, 1000:1 Contrast
  • HDMI 2.0 Input & Output
  • Supports up to UHD 4K60 Video Input
  • HDR & LUT Support via USB-A
  • Pixel Zoom, Focus Assist, Peaking Tools
  • Vectorscope, Waveform & Zebra Tools
  • USB-C & DC Power Input/DC Output
  • 3.5mm Headphone Output, 1/4"-20 Threads
  • Dual L-Series Battery Plate

Desview R7 III Specs

Key Specs
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
No
Media/Memory Card Slot
No
Wireless
No
Video Format
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Battery
2x L-Series Mount on Fixed Plate
Display
Panel Type
IPS-Type LCD
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 160°
Vertical: 160°
Touchscreen
Yes
Maximum Brightness
2800 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
No
Color Gamut
100% DCI-P3
LUT Support
Yes
Image Controls
Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x LEMO 2-Pin (30 VDC) Input
1x Barrel 2.1 mm (8 VDC) Output
1x USB-C Input
Other I/O
1x USB-A (Firmware/LUT Upload) Input
Media/Memory Card Slot
No
Wireless
Wireless
No
Mobile App Compatible
No
Format Support
Video Format
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Power
Input Power
7 to 30 VDC
Battery
2x L-Series Mount on Fixed Plate
Mounting
Tripod/Accessory Mounting
Bottom/Right
1x 1/4"-20 Female
General
Environmental Resistance
No
Operating Conditions
32 to 122°F / 0 to 50°C
Storage Conditions
-4 to 140°F / -20 to 60°C
Material of Construction
Plastic
Dimensions
7.5 x 4.6 x 2.1" / 190.2 x 117.7 x 52.3 mm
Weight
14.11 oz / 400.00 g
Packaging Info
Package Weight
2.455 lb
Box Dimensions (LxWxH)
9.6 x 7.3 x 3.3"
Items Included
  • Desview R7III 7" Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O
  • Micro-HDMI Cable
  • Mini-HDMI Cable
  • Monitor Mount
  • D-Tap Power Cable
  • USB-A Stick
  • Microfiber Dust Cloth
  • Limited 1-Year Manufacturer Warranty
