Desview Core OL16 Max Production Monitor

Desview Core OL16 Max Production Monitor

SKU: DES-Core OL16 Max
£1,416.66 ex VAT
£1,699.99 inc VAT
ex VAT £1,416.66 ex VAT
£1,699.99 inc VAT
Sale Sold out
Stock in transit - email for accurate lead times
Shipping calculated at checkout.
View full details Liquid error (sections/main-product line 1316): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Desview Core OL16 Max Overview

3G-SDI/HDMI High-Bright Multiview OLED Monitor
  • Providing bright images and multiple video inputs and outputs, the Core OL16 Max 16" 4K High-Bright Multiview Production Monitor from Desview is a field monitor offering premium image quality and professional controls. This monitor provides high 1200 cd/m2 brightness, 3G-SDI and HDMI input and output, RS-422 input and output, and dual V-mount battery plates. A built-in light stand mount, carrying handle, and table stand enable easy transportation and setup.
3G-SDI and HDMI Input/Output
The Core OL16 Max provides one HDMI input and output and four 3G-SDI inputs and outputs for easy interfacing with multiple cameras or other video sources.
High-Bright Multiview Monitor
The Core OL14 Max supports different multiview modes with both horizontal and vertical layouts. High 1200 cd/m2 brightness enables clear viewing, even in exterior environments.
Premium Display
  • 16" OLED display with 3840 x 2160 native resolution.
  • Built-in imaging tools.

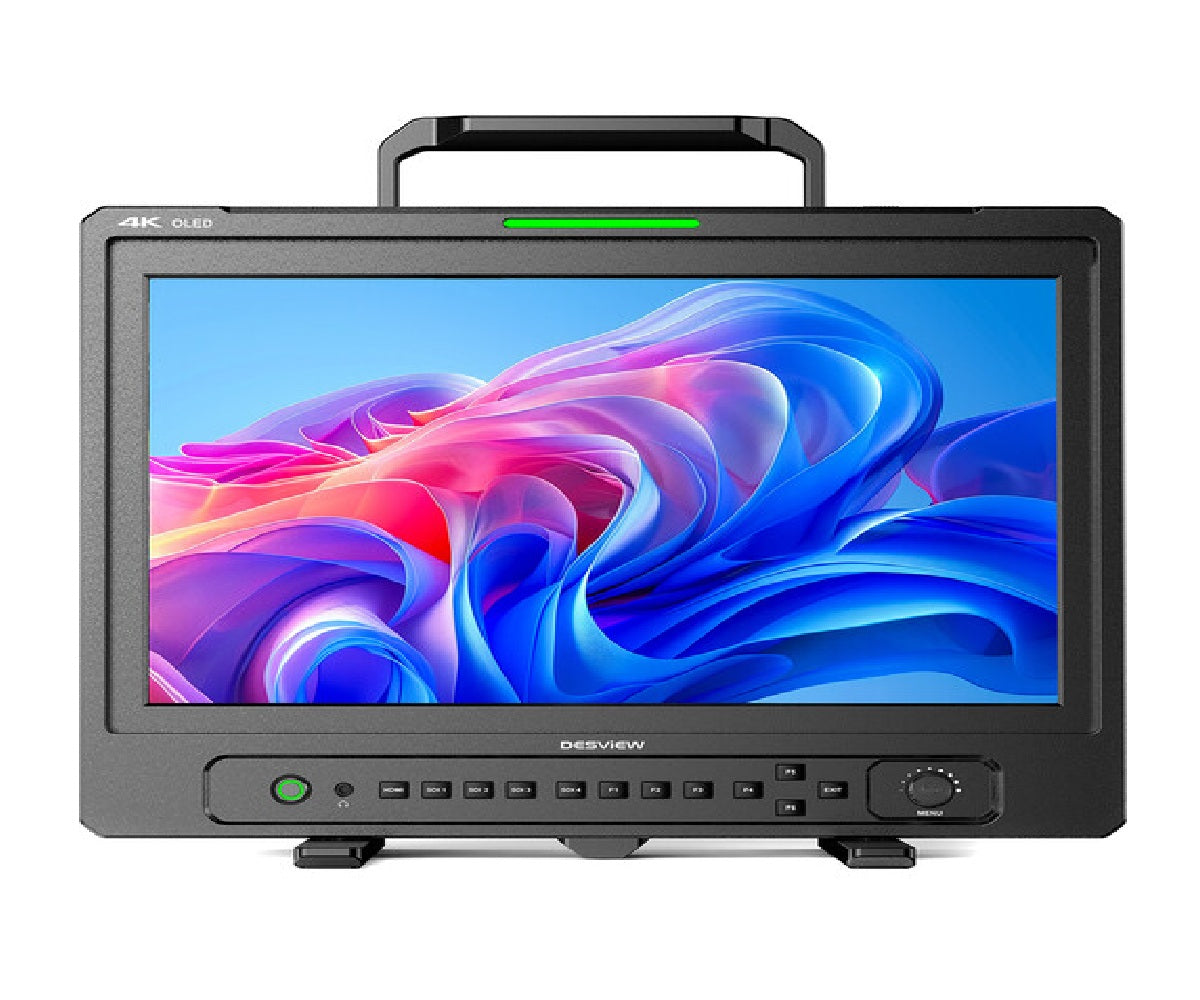

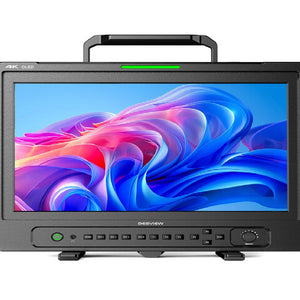

Front Panel Controls
Input selection buttons below the display make switching between the HDMI and 3G-SDI video inputs fast and intuitive. A menu dial and assignable function buttons enable you to quickly adjust the image using the built-in tools.

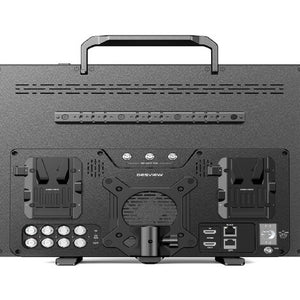

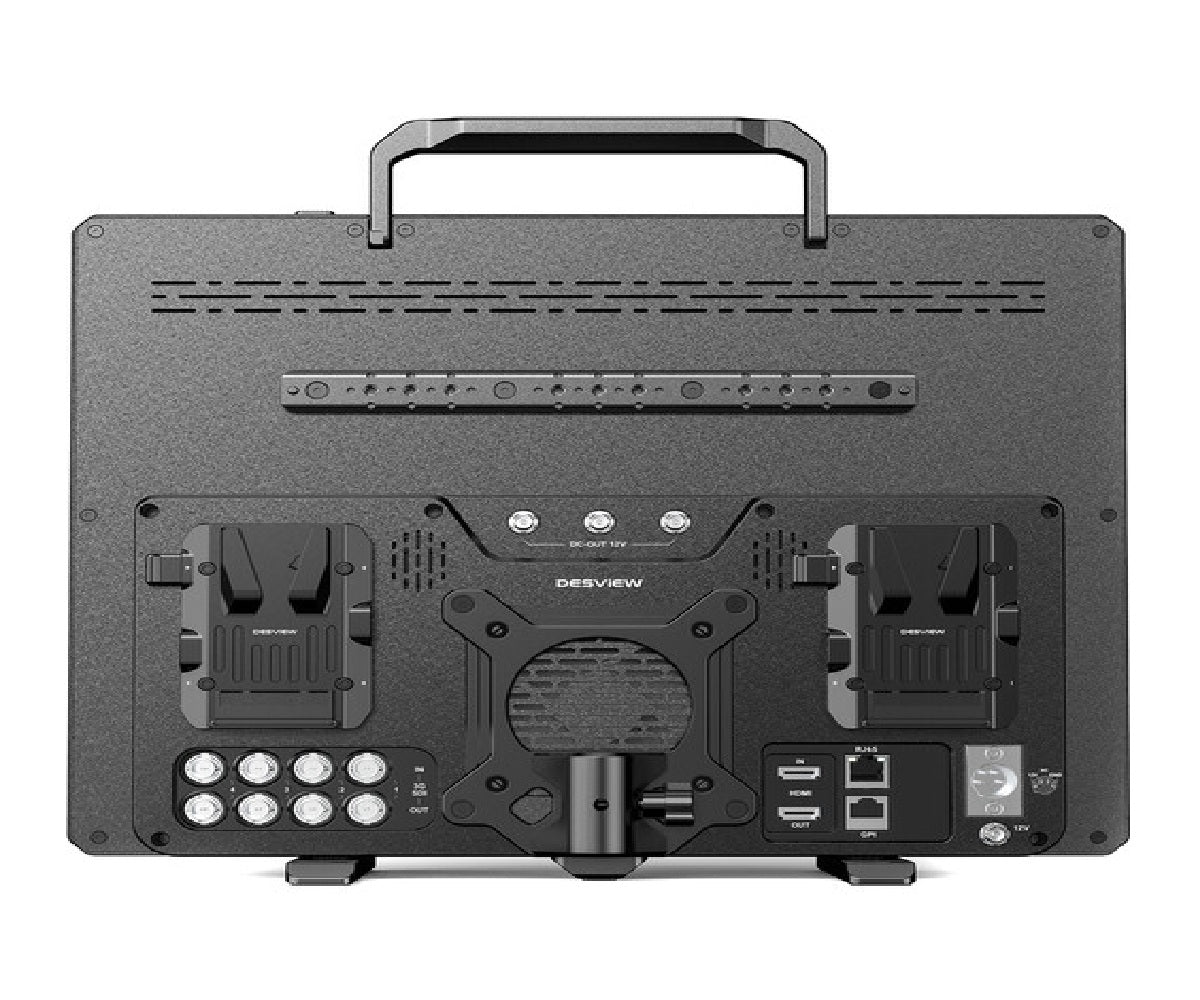

Connectivity
  • One 4K60 HDMI video input channel with loop output.
  • Four 3G-SDI video channels with inputs and loop outputs.
  • RJ45 tally input with front tally display.
  • 7 to 24 VDC power input and three 10 VDC barrel power outputs.
  • 4-pin XLR power input.
  • Includes two V-mount battery plates.
Design
  • Integrated folding top handle boosts convenience and mobility.
  • Multiple buttons for input selection and auxiliary functions.
  • Front 3.5mm audio headphone output.
  • Multiple anti-twist 1/4"-20 accessory threads.
  • Built-in light stand mount.
  • Supports 3D and Creative LUTs created with Calman, ColourSpace and other industry standards for real-time control of color accuracy, exposure, skin tones and tonal balance.
  • Real-time anamorphic de-squeezing at 1.33× / 1.6× / 2.0× and freely selectable aspect ratios restores the correct widescreen proportions directly on set. This enables more precise image composition and eliminates the need for external converters.
  • Multi-Screen
  • Picture-in-Picture Modus
AMOLED Display Active Matrix Organic Light Emitting Diode
Display Size 16 inches
Display Dimensions 344.448 mm × 215.280 mm
Resolution 3840 × 2400 pixels
Aspect Ratio 16:10
Contrast Ratio 100,000:1
Brightness Up to 1200 nits peak brightness, 400 nits sustained brightness
Viewing Angle 170° horizontal and vertical
Colour Depth 10-bit
Colour Gamut 100% DCI-P3 coverage
Colours 1.074 billion
Pixel Pitch 0.0897 mm × 0.0897 mm
Pixel Density 331 PPI
Refresh Rate 60 Hz
Multi-View Monitoring Supports horizontal and vertical layouts
Image Analysis Tools Extensive image analysis tools supported
Housing Robust aluminium housing
Sun Hood Removable, can be folded and locked to protect the display
Feet Fold-out, non-slip feet
Carrying Handle Fold-out carrying handle
Top Mounting Threads 5x 1/4" female threads for accessories
Side Mounting Threads 1x 1/4" and 1x 3/8" female thread on each side for rack mounting
Bottom Mounting Threads 2x female threads for tripod mounting via optional 1/4" or 3/8" adapter
Rear Mount VESA mount, spigot adapter supplied
Power Button Front-mounted
Controls Illuminated buttons and rotary controls on the front
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
HDMI Input 1x
HDMI Loop Out 1x
3G-SDI Inputs 4x
SDI Loop Outs 4x
Stereo Audio Output 1x 3.5 mm
USB 1x USB Type-A for firmware updates
Tally Light Connection RJ45 socket
Included in box
1x Monitor
1x sun visor
1x Spigot tripod mount (for VESA mount)
1x power supply
1x Hard-shell suitcase with custom-fit foam inlay
