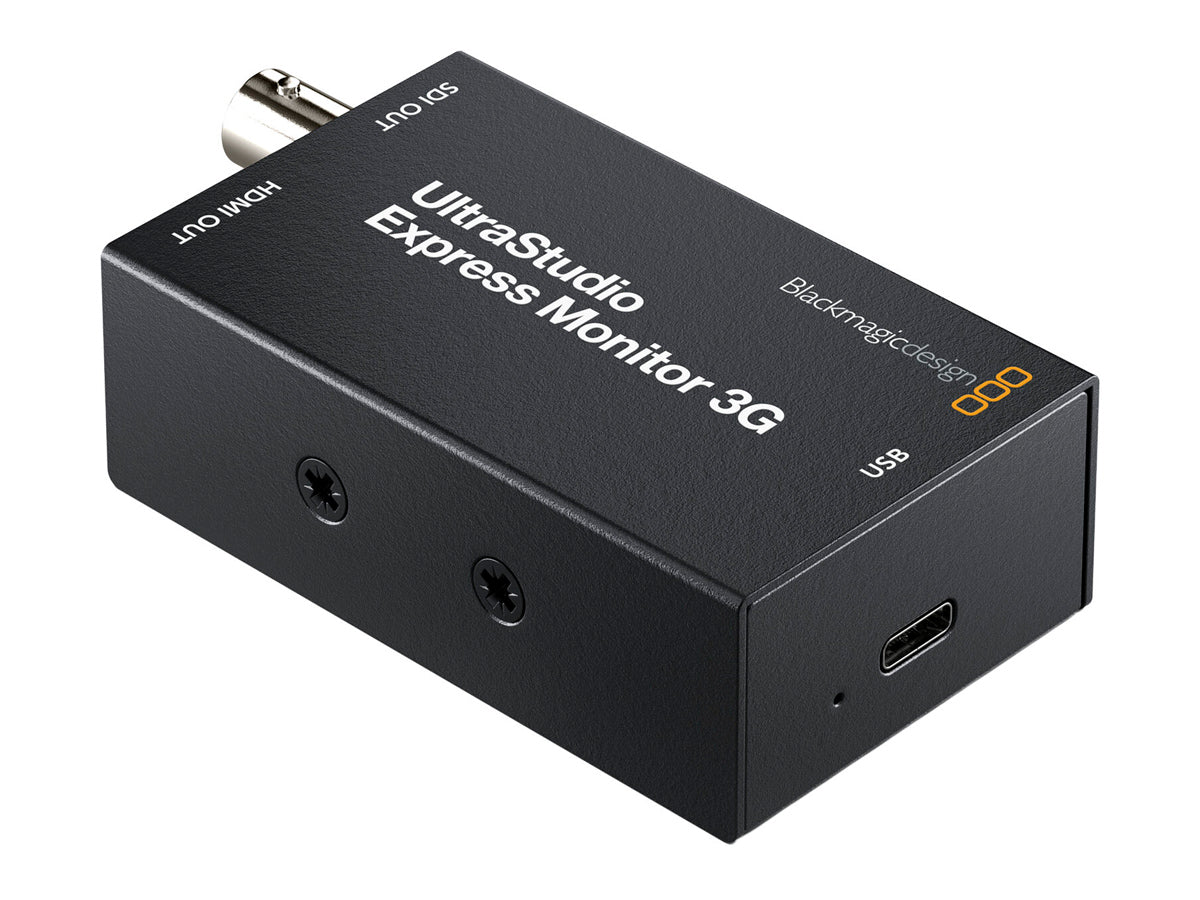

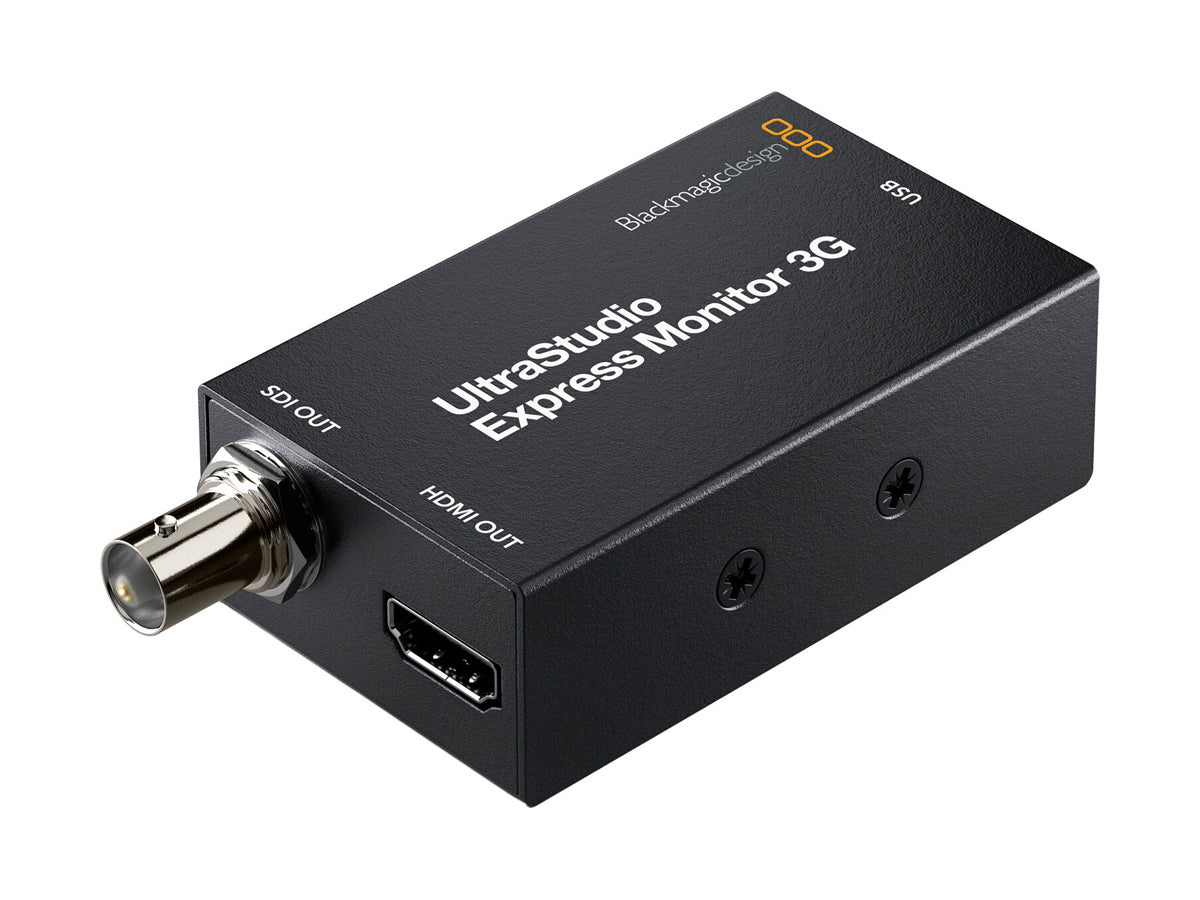

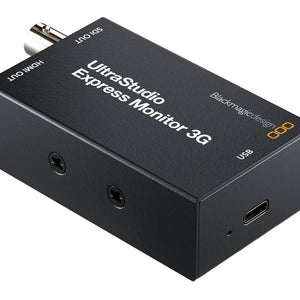

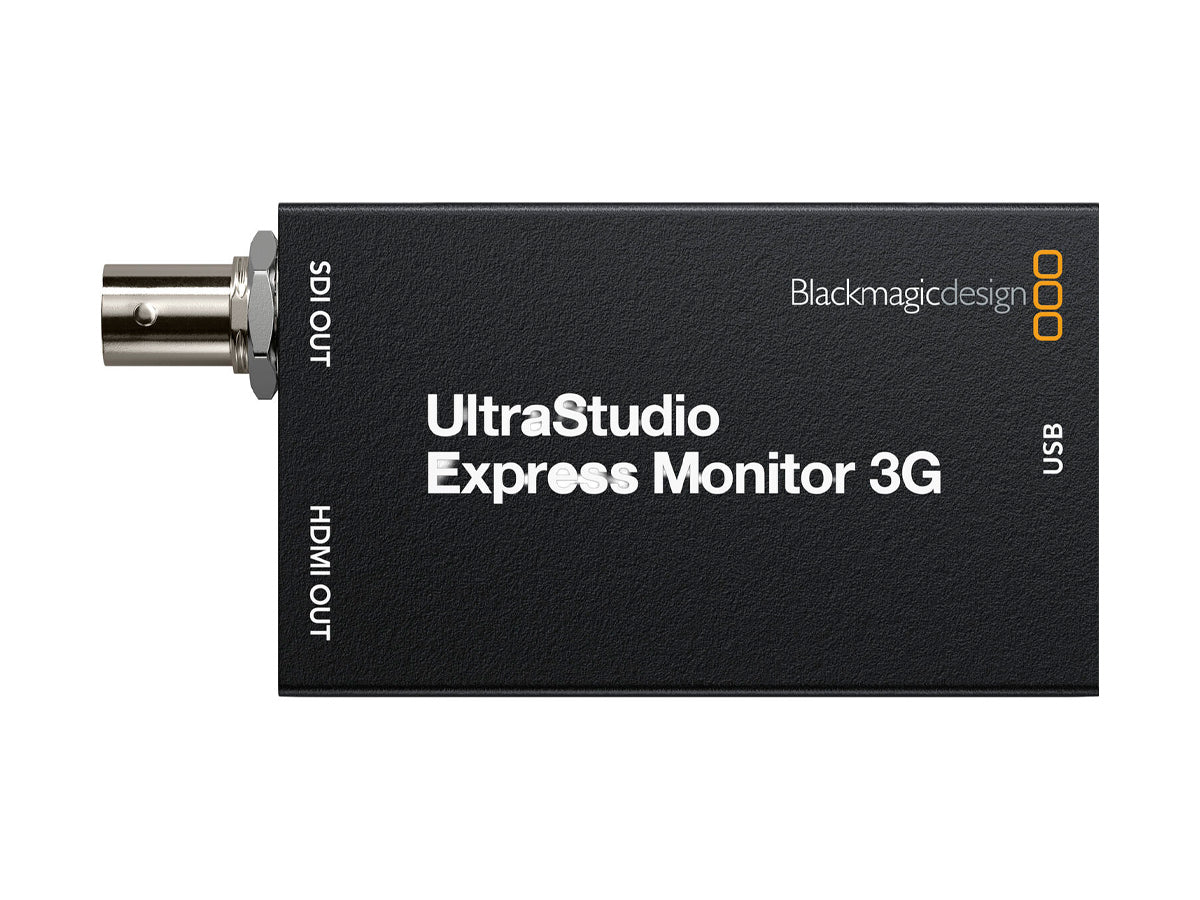

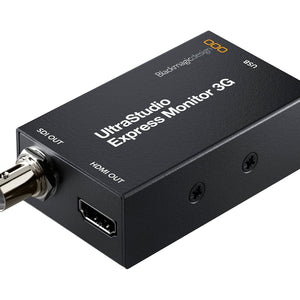

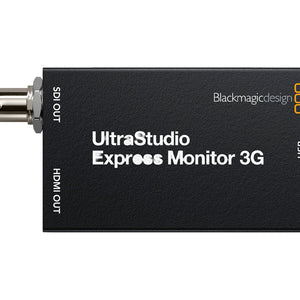

Blackmagic UltraStudio Express Monitor 3G
Blackmagic UltraStudio Express Monitor 3G
SKU:
BMD-BDLKULSDMBEXMON3G
Regular price
£124.15 ex VAT
£148.98 inc VAT
£148.98 inc VAT
Regular price
ex VAT
Sale price
£124.15 ex VAT
£148.98 inc VAT
Unit price
per
£148.98 inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Get pocket sized 3G-SDI and HDMI video capture for your USB4 or Thunderbolt 4 laptop or desktop computer! UltraStudio Express Recorder 3G features broadcast quality 10-bit video connections in both HDMI and 3G-SDI. It's compatible with all popular video software such as DaVinci Resolve plus AI image processing and live streaming software.
| CONNECTIONS | |
| SDI Video Inputs: | 1 x 10-bit SD/HD switchable |
| SDI Rates: | 270Mb, 1.5G, 3G |
| SDI Audio Inputs: | 16 Channels embedded in SD/HD |
| HDMI Video Inputs: | 1 x HDMI 2.0 type A connector |
| HDMI Audio Inputs: | 8 Channels embedded in SD/HD |
| Computer Interface: | 1 x USB Type-C® supporting USB 40Gbps. |
| SUPPORTED CODECS | |
| Supported Codecs: | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| SOFTWARE | |
| Software Included: | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade: | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
| Software Applications: | Wirecast / vMix / OBS. Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom, First Rush. These are third party applications and support may vary, check with your software vendor. |
| SDI VIDEO STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Video Standards: | 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI |
| SDI Compliance: | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M level A and level B |
| SDI Metadata Support: | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling: | 4:2:2 and 4:4:4 |
| SDI Colour Precision: | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Colour Space: | Rec 601, Rec 709 and Rec 2020. |
| Multiple Rate Support: | SDI video connection is switchable between SD and HD. |
| HDMI VIDEO STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| HDMI Audio Sampling: | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Video Sampling: | 4:2:2 and 4:4:4 |
| HDMI Colour Precision: | 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| HDMI Colour Configuration: | HDMI 2.0 supports Deep Color. |
| HDMI Colour Space: | Rec 601, Rec 709 and Rec 2020. |
| Multiple Rate Support: | HDMI video connection is switchable between SD and HD. |
| Copy Protection: | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| HARDWARE FRAME BUFFER | |
| Hardware Frame Buffer: | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). |
| PROCESSING | |
| Colourspace Conversion: | Hardware based real time. |
| PHYSICAL INSTALLATION | |
| Physical Installation: | Requires computer with a USB Type-C® port with 40Gbps signalling rate. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 91.9 x 45.0 x 24.9mm / 3.62 x 1.77 x 0.98" |
| Weight: | 158g / 5.57oz |
| OPERATING SYSTEMS | |
| Operating Systems: | Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux. |
| POWER REQUIREMENTS | |
| Power Requirements: | Powered by Type-C® cable. Requires computer with a USB Type-C® 40Gb/s port. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 5° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- 1x UltraStudio Express Recorder 3G
