Atomos Shogun AV-19M
Atomos Shogun AV-19M
SKU:
AO-ATOMSHGAVM
Regular price
£1,699.00 ex VAT
£2,038.80 inc VAT
£2,038.80 inc VAT
Regular price
ex VAT
Sale price
£1,699.00 ex VAT
£2,038.80 inc VAT
Unit price
per
£2,038.80 inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Dedicated Production Monitoring
Shogun AV-19M concentrates the core monitoring capabilities of the Shogun AV-19 series into a dedicated monitor. It is an ideal choice for productions that already have established recording and switching systems but need accurate, large-format monitoring for NDI, SDI or HDMI sources.
Reliable 4K Confidence Monitoring
The bright, 19-inch 4K HDR DCI-P3 touchscreen provides a detailed view for evaluating every shot. Its rugged construction and rack-ready design make Shogun AV-19 monitors ideal for control rooms, OB vehicles, video villages and on-location production. It can also serve as a large-format viewing station for directors, clients and other members of the production team.
SDI, HDMI and IP Connectivity
Shogun AV-19 monitors can be integrated into conventional or IP-based production environments. Professional SDI and HDMI connectivity supports established video workflows, while support for NDI® HX3 over Ethernet enables flexible monitoring across compatible IP networks.

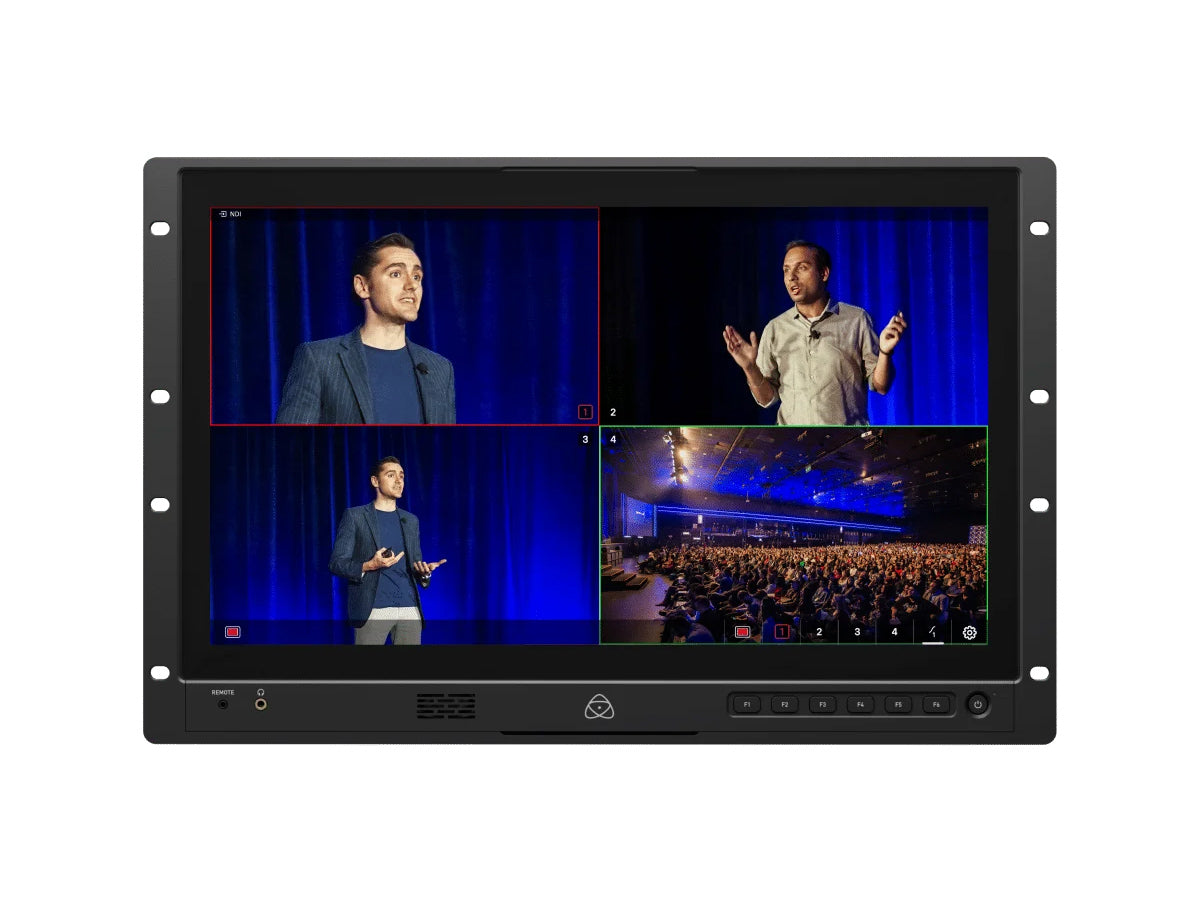

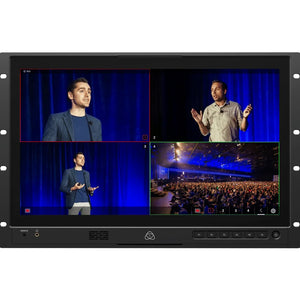

Monitor One NDI Source or View Four
Receive NDI® HX3 video over Ethernet and view a single source full-screen or bring up to four NDI sources together in a quad-view layout. This gives production teams a clear overview of multiple networked feeds without requiring a separate multiview system.
User-Definable Function Buttons
Get instant access to up to six frequently-used features – for example monitoring tools, playback modes, LUTs, anamorphic desqueeze – at the touch of a button. Turns the Shogun AV-19 into a professional control surface, optimized for speed, reliability, and personalized workflows in real production conditions.

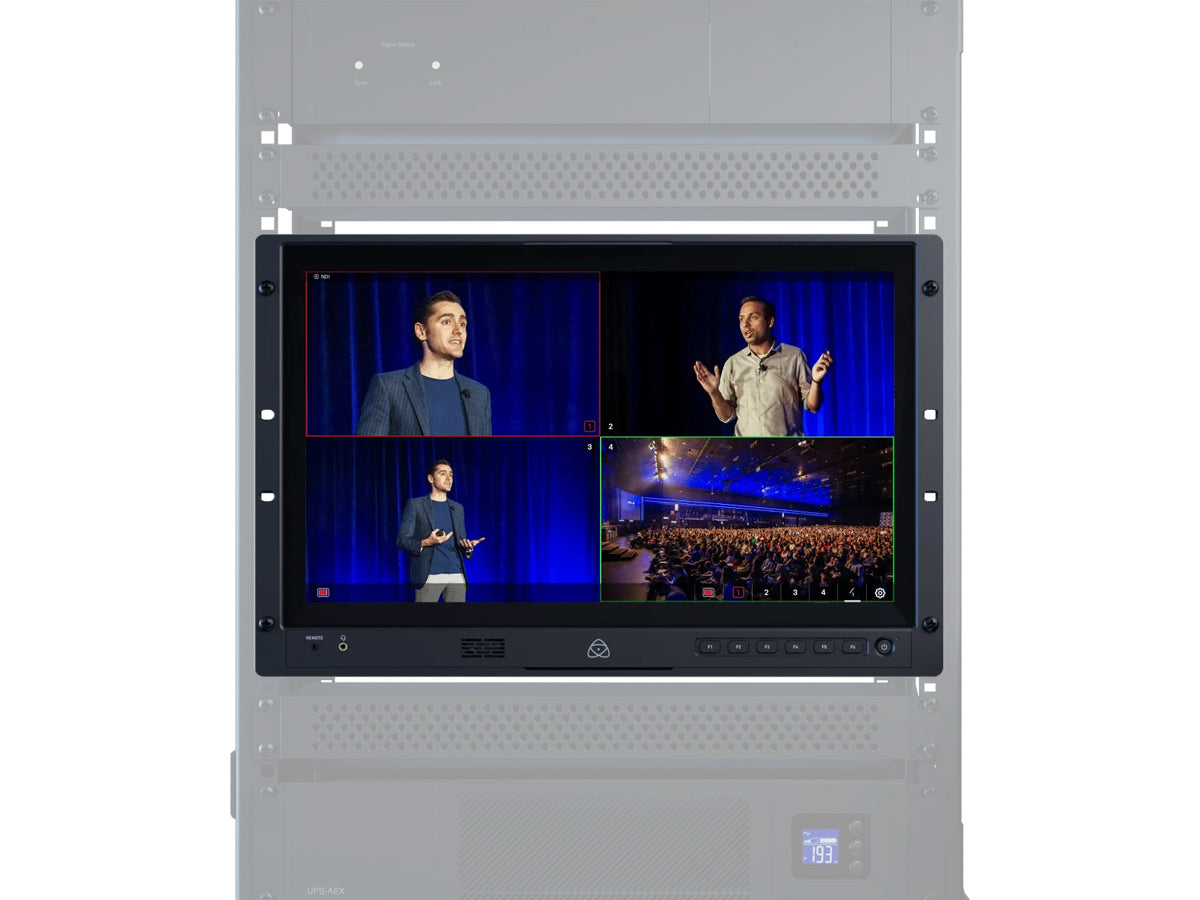

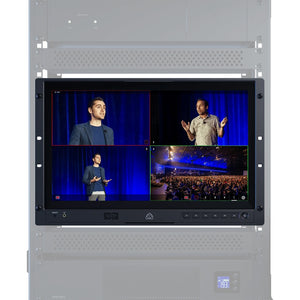

A Focused Monitoring Solution for Permanent or Portable Installations
With no integrated recording or live switching, Shogun AV-19M provides a streamlined solution for production galleries, control rooms, OB vehicles and video villages. Its rack-ready construction also makes it well suited to portable flypacks for live events and location production.
Calibration You Can Trust
Shogun AV-19M supports professional calibration with Calibrite Display Pro HL and Plus HL probes via the Atomos Calibrator app, using the Atomos calibration cable (ATOMCAB018, sold separately). This ensures consistently accurate HDR and Rec.709 monitoring, so what you see on screen is exactly what you deliver.
Professional Audio Monitoring
Monitor audio embedded within SDI, HDMI or NDI video, with on-screen meters, built-in speakers and headphone monitoring. Professional XLR connectivity supports integration with established production audio workflows.
Professional Monitoring Tools
Shogun AV-19M offers a comprehensive suite of one-touch tools for assessing focus, framing and exposure. These include focus peaking, zoom, zebras, false color—including EL Zone™and ARRI—frame guides, SMPTE safe areas, grid markers, waveform, RGB parade, vectorscope and flexible 3D and 1D LUT support.
Both models can accept Log signals and provide real-time LUT previews to approximate the final graded image in Rec.709. Custom .cube LUT files can be loaded from compatible media and used alongside the built-in monitoring tools for precise image evaluation.
Built for Broadcast, Production and Live Events
-
Events - Shogun AV-19M provides bright, dependable monitoring for live productions where clear images and rapid decisions are essential, serving as a dedicated NDI, SDI or HDMI production display.
-
On Set - Providing a large-format viewing station for directors, DITs, camera crews and clients Shogun AV-19M professional monitoring tools make it easier to assess exposure, focus, color and framing.
-
Video Villages - The bright 19-inch touchscreen gives key members of the production team a clear, shared view of the image. SDI, HDMI and NDI connectivity provide the flexibility to work with conventional camera feeds or networked sources, depending on the production environment.

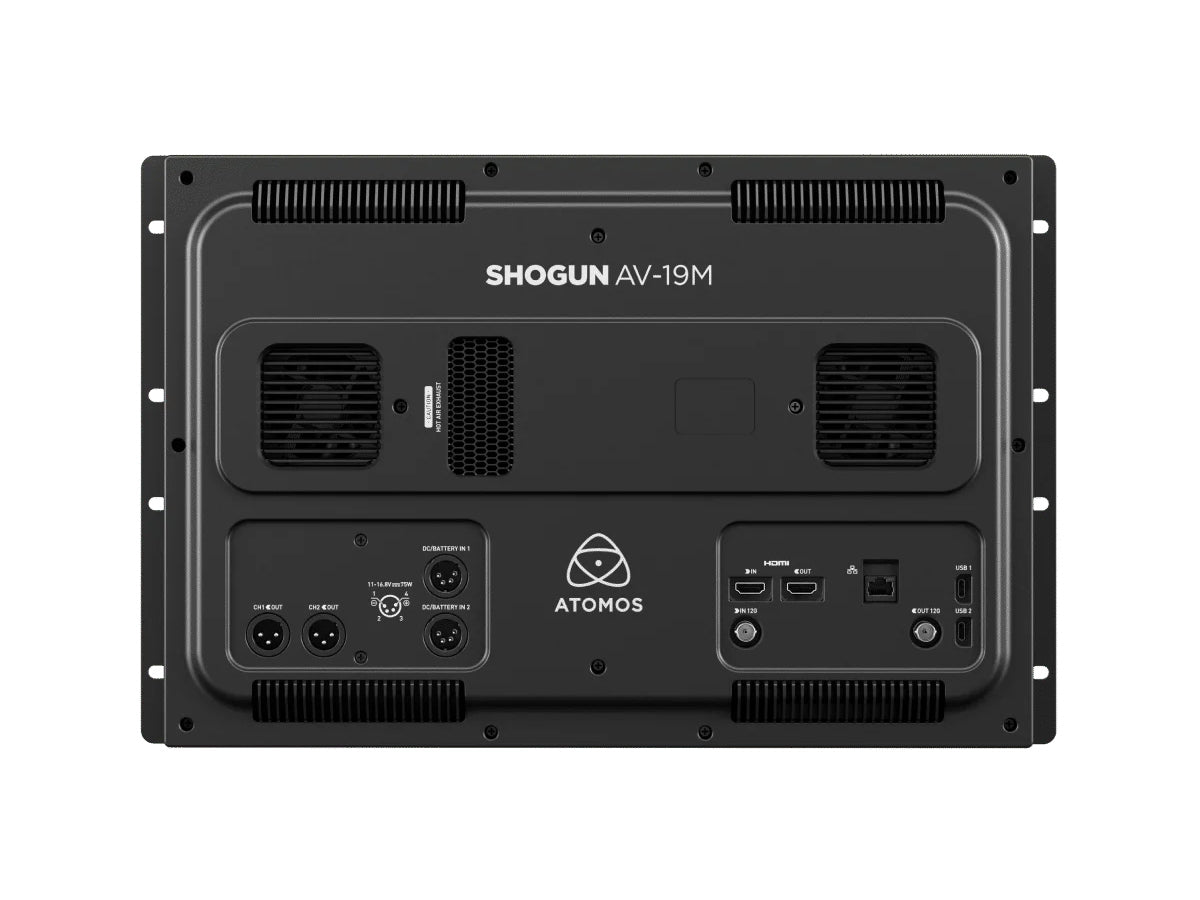

Comprehensive Production Connectivity
Shogun AV-19 monitors combine professional SDI and HDMI video connectivity with NDI® HX3 over Ethernet. Audio monitoring, XLR connectivity, flexible power options and a rack-ready design help both models integrate into professional studio, broadcast and location workflows.
- 19-inch, 4K HDR DCI-P3 rackmount touchscreen display
- Hybrid NDI®, SDI and HDMI video monitoring
- View one NDI HX3 source full-screen or up to four NDI sources in quad-view
- Receive high-quality, low-latency NDI HX3 video over Ethernet
- Monitor a single SDI or HDMI video source full-screen
- 1 x 12G-SDI in, 1 x 12G-SDI out, 1 x HDMI in, 1 x HDMI out, XLR audio out
- Comprehensive technical monitoring tools including EL Zone™ false color, focus peaking, waveform & more
- User-definable function buttons
- Optional custom flypack, available separately
| PHYSICAL | |
| Dimensions: | 482mm x 310mm x 60mm |
| Weight: | 5.22 Kg |
| Mounting Points: | 19-inch rack ears |
| Rack Height: | 7 RU |
| VESA Mount: | No |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 40 degrees Celsius |
| CONSTRUCTION | |
| Body: | Aluminium with ABS plastic |
| Cooling: | Actively controlled fan and heat sink |
| Touchscreen: | Capacitive touch |
| Tally Light: | LED on front only |
| Multi-Function Buttons: | Power + 6 assignable |
| POWER | |
| Input Voltage: | DC 12V to 16.8V DC |
| Operating Power: | 75W |
| Compatible Batteries: | Connect to either/both DC 4-pin XLR input |
| Battery Voltage: | 14.4V nominal |
| Battery Power: | Single battery input via dedicated 4-pin XLR |
| DC-In Connector: | 1 x 4-pin XLR for included DC power supply |
| D-Tap: | Via third-party D-Tap to 4-pin XLR cable |
| DISPLAY | |
| Size: | 19-inch |
| Resolution: | 3840 x 2160 4K UHD |
| Bit Depth: | 10-bit (8+2 FRC) |
| Backlight Type: | Double Edge-Lit |
| Brightness (cd/m²/nits): | 1200 |
| Aspect Ratio: | 16:9 |
| Colour Gamut: | 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020 |
| Calibration Support: | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately) |
| COLOUR PIPELINE | |
| Gamma: | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut: | DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display: | .Cube format (17 & 33 points supported) |
| 3D LUT Down Stream: | Loop out |
| 3D LUT 50/50: | Yes |
| Monitoring Modes: | Native / HLG / PQ / 3D LUT |
| HDR Output Conversion: | Log / HDR to HLG / PQ |
| VIDEO INPUT | |
| HDMI: | 1 x HDMI (2.0) up to 4K60P |
| Locking Port: | Yes |
| SDI: | 1 x 12G-SDI (6G/3G backwards compatible) |
| Wi-Fi: | No |
| Bit Depth: | 8/10-bit for video |
| Video Chroma Subsampling: | YCbCr 4:2:0 & 4:2:2 |
| HDR Output Conversion: | HDMI auto detection |
| Ethernet: | via NDI HX protocol |
| VIDEO OUTPUT | |
| HDMI: | 1 x HDMI (2.0) up to 4K60P |
| Locking Port: | No |
| SDI Loop Through: | 1 x 12G-SDI |
| Wi-Fi: | No |
| Bit Depth: | 8/10-bit video |
| Video Chroma Subsampling: | 4:2:2 |
| NETWORK | |
| Ethernet: | 1 x RJ45 |
| CONNECTIVITY | |
| USB: | 2 x USB-C 2.0/3.0 |
| Bluetooth: | No |
| LANC: | Yes |
| VIDEO SIGNAL CONVERSION | |
| HDMI to SDI: | Yes |
| SDI to HDMI: | Yes |
| AUDIO OUT | |
| Audio Quality: | 24-bit / 48kHz |
| Audio Codec: | PCM |
| HDMI: | 8-channel, 24-bit (input dependent) |
| SDI: | 12-channel, 24-bit (input dependent) |
| Analog Audio Out: | 2 x 3-pin XLR (male) |
| Speakers: | Mono confidence up to 1.5W |
| Headphone Out: | 3.5mm headphone jack, 2-channel |
| TIMECODE | |
| Embedded: | HDMI & SDI |
| Time of Day: | Yes |
| Wireless AirGlu RF Server and Client: | No |
| Wireless AirGlu BT Server: | No |
| RESOLUTION & FRAME RATES (MONITOR ONLY) | |
| 4K DCI: | Up to 4Kp60 |
| 4K UHD: | Up to UHDp60 |
| 2K DCI 2048 x 1080: | Up to 2Kp60 |
| 1080p: | Up to 1080p120 |
| 1080 PsF: | Only via pulldown to progressive |
| 1080i: | 1080i50 / 1080i60 |
| 720p: | Up to 720p60 |
| SUPPORTED MEDIA | |
| USB: | Atomos certified USB 3.0 media |
| File System: | ExFAT |
| MULTI-INPUT SWITCHING | |
| Quad-View Display: | NDI HX3 only |
| Input Switching: | Yes, NDI HX3 only |
| ON-SCREEN MONITORING TOOLS | |
| Waveform: | 3 sizes – adjustable opacity & brightness |
| RGB Parade: | 3 sizes – adjustable opacity & brightness |
| Vectorscope: | 2 sizes – adjustable opacity & brightness |
| 2x Zoom: | Yes |
| Focus Peaking: | Color selected / threshold setting / color / mono / edges only |
| Atomos False Colour: | Yes, with scale |
| ARRI False Colour: | Yes |
| EL Zone False Colour: | Yes |
| Zebra: | Yes, adjustable |
| Isolate Colour Channel: | Blue Only |
| Cine Frame Guides: | Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame Guides: | Presets for 9:16, 1:1, 191:1, 4:5 |
| Onion Skin: | Yes |
| Safe Areas: | Action and graphic |
| Grid Markers: | 9 grid |
| Anamorphic Desqueeze: | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip: | Vertical only |
| ONBOARD SIGNAL PROCESSING | |
| 4K UHD Downscale for HD: | Loop out - 4K UHD to FHD |
| DCI Crop: | Loop out - 17:9 to 16:9 crop |
| Pulldown Removal: | 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
| ACCESSORIES | |
| AC to DC Power Adapter: | Yes, sold separately (ATOMPWR024) |
| Sun Hood: | No |
- 1x Shogun AV-19M monitor
- 1x 4-pin XLR power supply
- 5x international IEC power cables
- 10x rack nuts and bolts
- 1x screen cloth
- 1x Quick Start Guide
