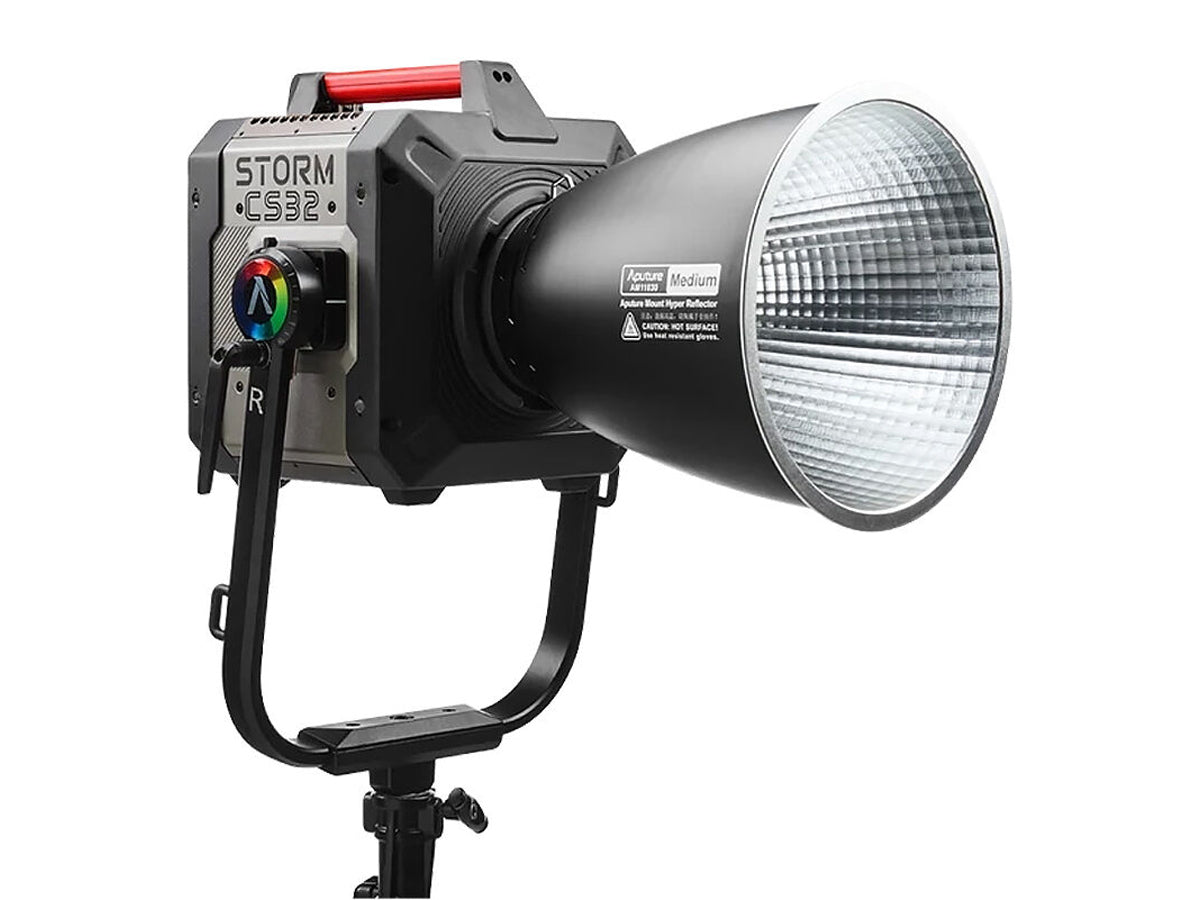

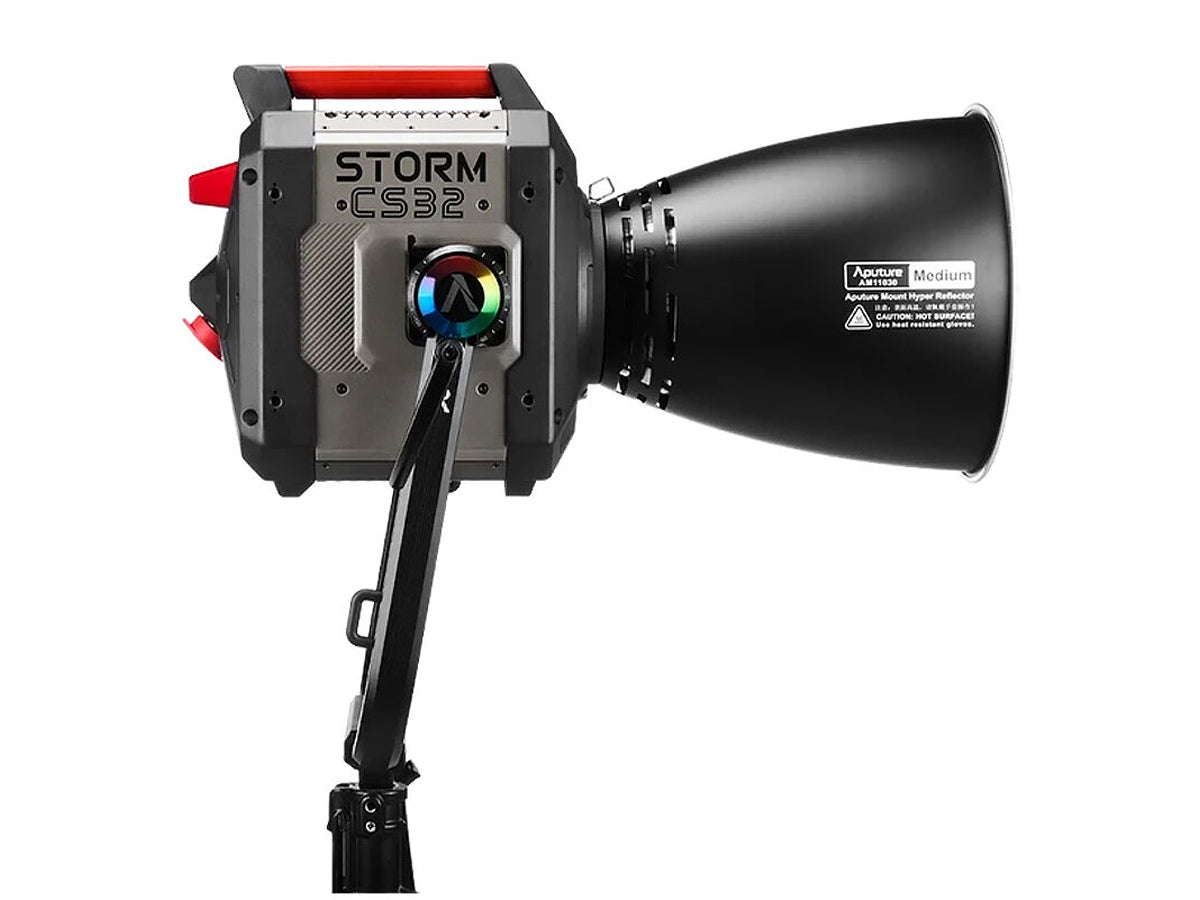

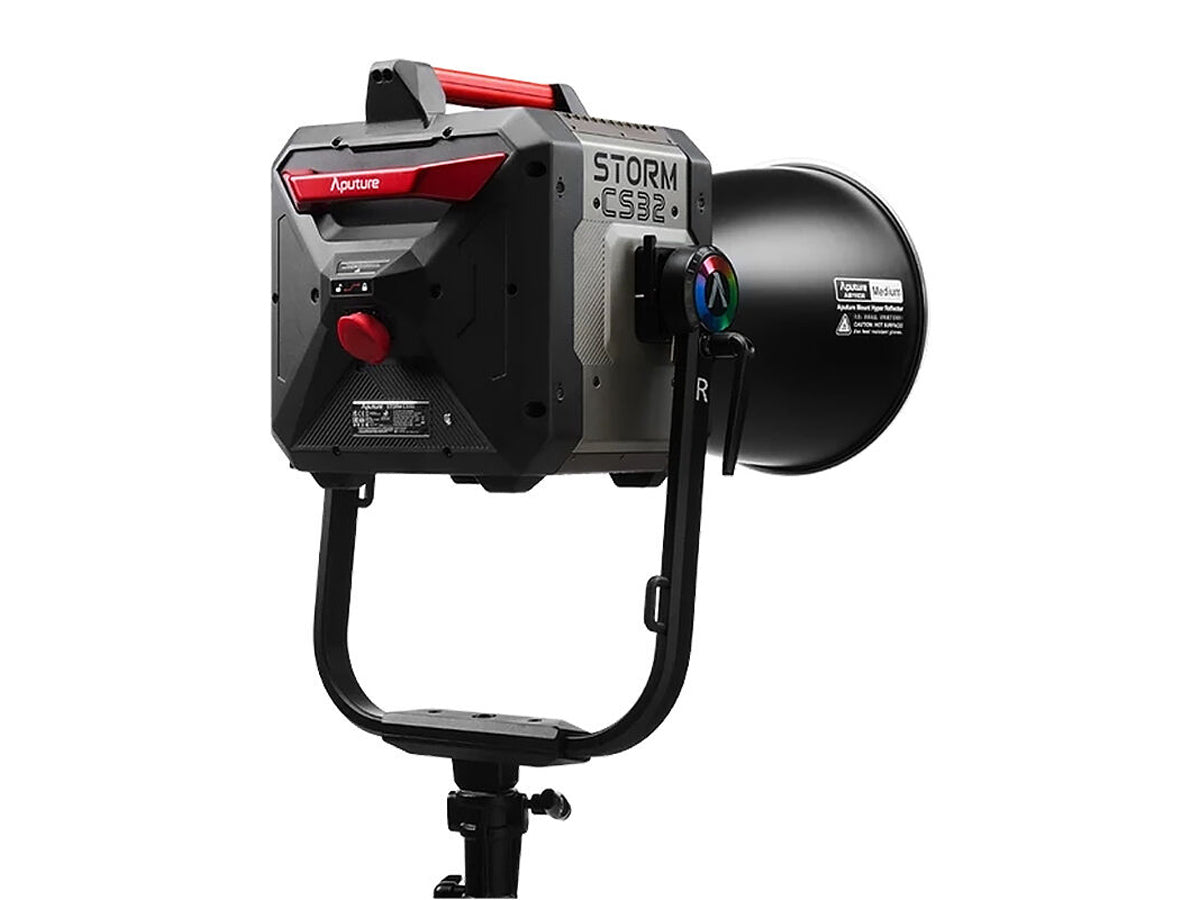

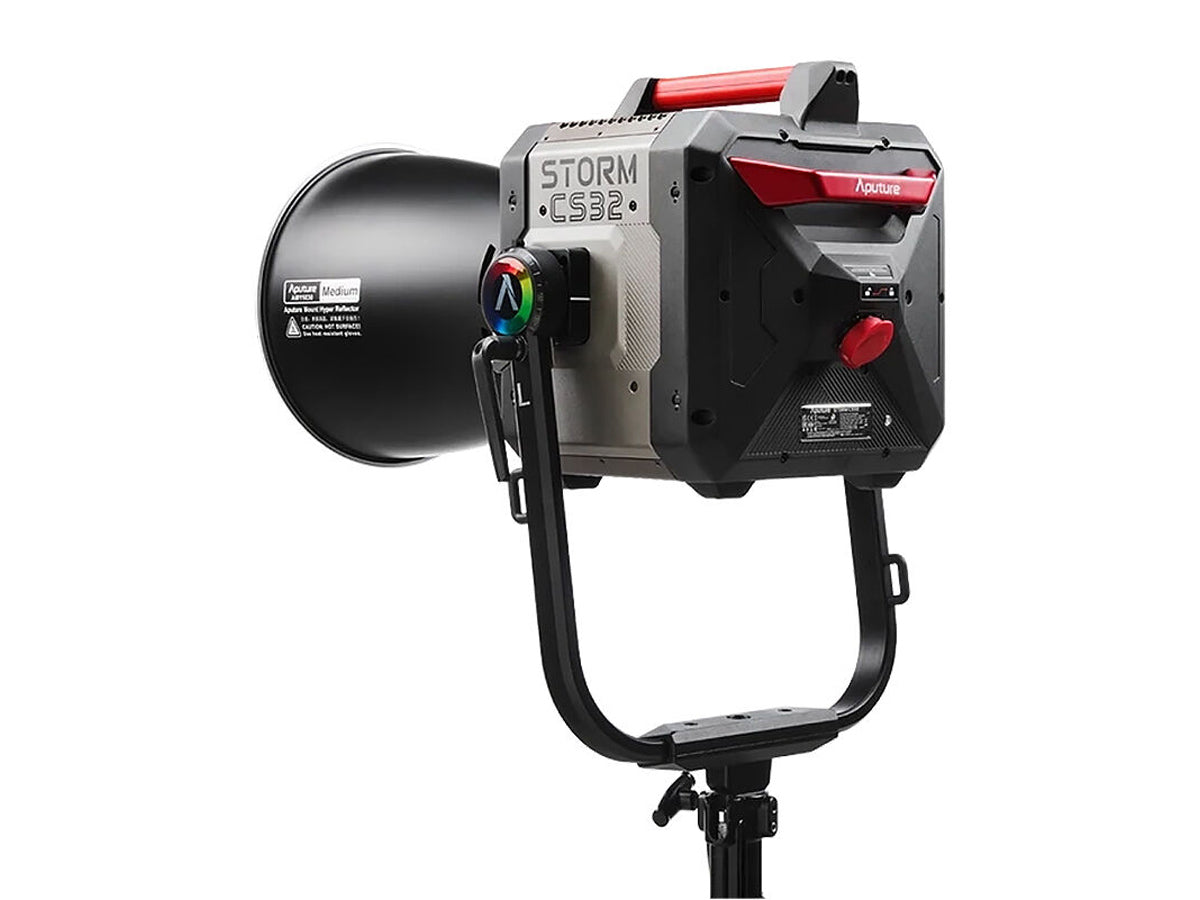

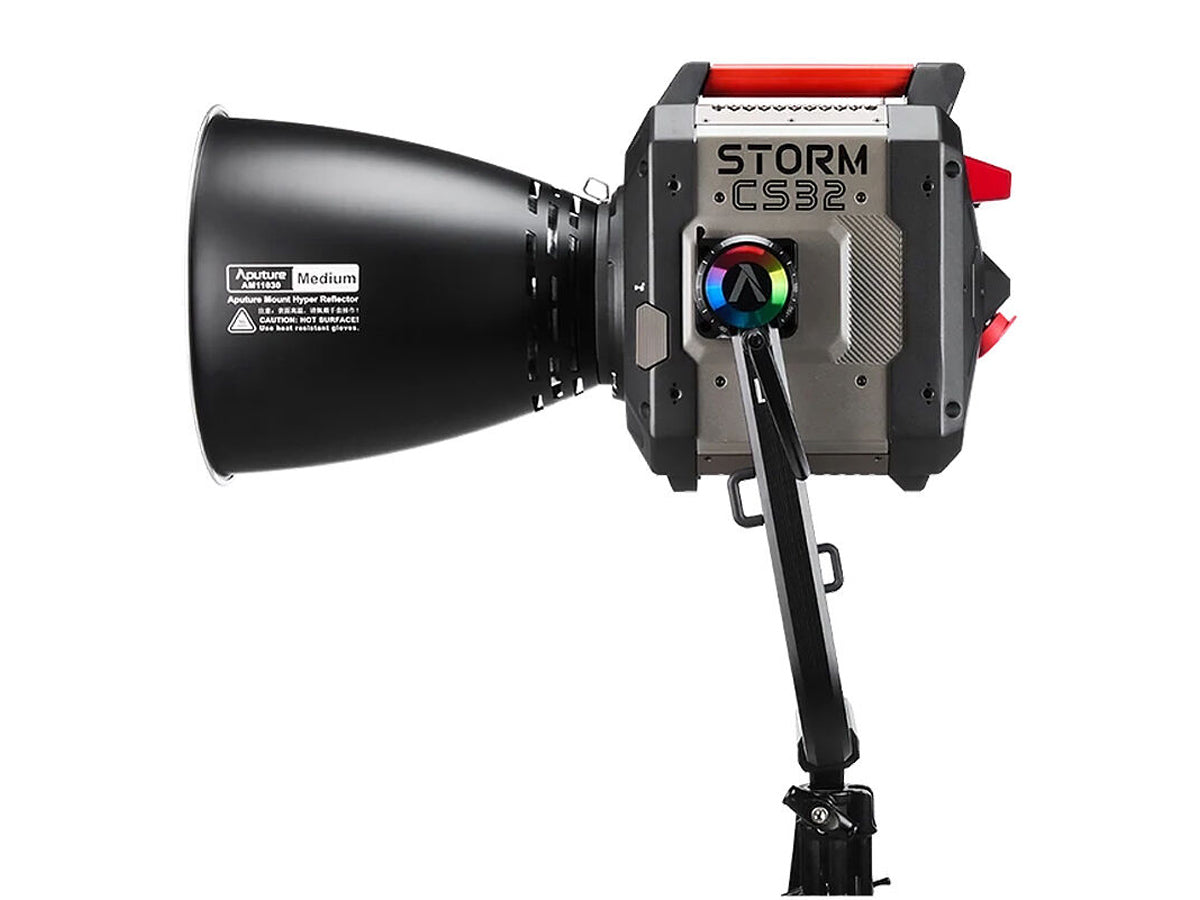

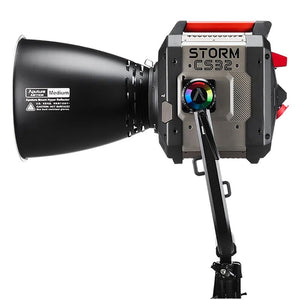

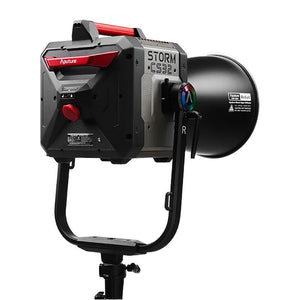

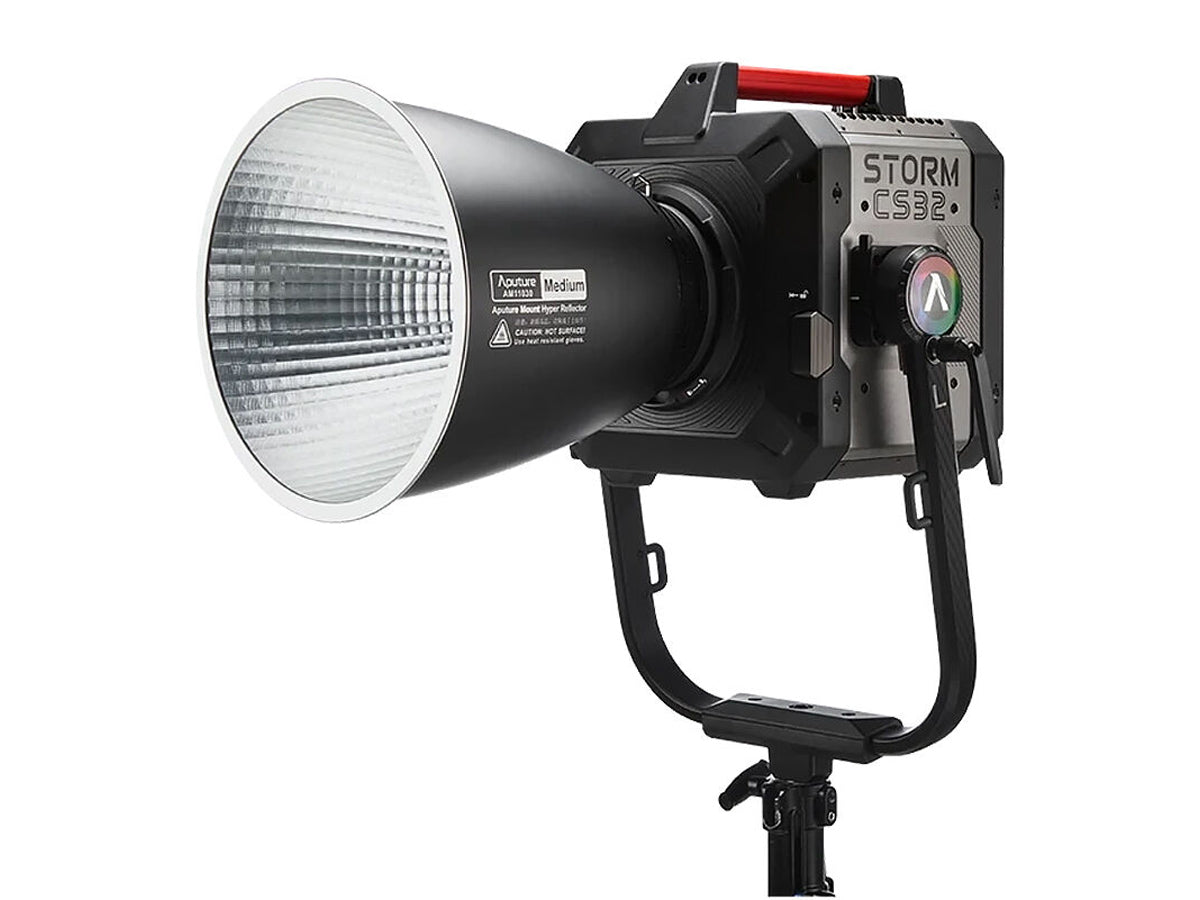

Aputure Storm CS32 (w/ Flight Case)
Aputure Storm CS32 (w/ Flight Case)
£7,316.82 inc VAT
£7,316.82 inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Compete with daylight and create sunsets with this 3,200W point source fixture that matches the brightness of industry-standard 4,000W HMIs while also offering full color tunability.
The Aputure STORM CS32 utilizes the BLAIR-CG With Extended Red (Blue/Lime/Amber/Indigo/Red/Cyan/Green) light engine, delivering the highest quality white light with exceptional SSI ratings, a CCT range from 1,800-20,000K with full 100% +/- Green adjustment, and an expansive tunable color range covering more than 90% of Rec. 2020. Indigo emitters activate the natural fluorescence of materials for a more accurate appearance, and Extended Red enhances skin tones while maintaining high output.
Wherever it is in use in the world, the STORM CS32 is the brightest tunable color point source light that can be powered on a household circuit. At a maximum 3200W power draw, it outputs white light as bright as a 4K HMI or 10K tungsten fresnel lamp. In 220V countries, the STORM CS32 can run at full power from a common 15amp household circuit. For North America, the STORM CS32 includes two power cables: a bare lead cable for wiring to professional power systems to run at full power in either 110V or 220V, and a power cable with a household “Edison” connector for use with 110V/20amp circuits. The CS32 Control Box recognizes this cable and limits its maximum power draw appropriately, up to 80% of the light’s full brightness.
The STORM CS32 is small and lightweight enough for one person to use. The lamp head weighs 16.8kg and the control box just 10.8kg. The size is kept low as well, so even with the optional CF16 fresnel and skid, it can fit fully assembled onto lighting truck shelving or on a lighting head cart. The small cube-like lamp head dimensions also allow multiple STORM CS32 lights to be rigged closely together to create powerful arrays in a limited space.
With additional cables, the 7.5m STORM CS32 head cable can be extended up to 45m. Place the lamp head in a cherry picker and leave the control box on the ground to save on weight and keep physical controls nearby.
- 3,200W high-output point source delivering brightness comparable to a 4,000W HMI or 10K tungsten Fresnel
- BLAIR-CG with Extended Red light engine for exceptional tunable white and full-color performance
- 1,800K–20,000K CCT range with full ± Green adjustment
- Covers over 90% of the Rec. 2020 color space for highly saturated, accurate color reproduction
- Excellent white-light quality with SSI ratings of 93 at 3200K and 91 at 5600K
- Extended Red emitters enhance skin tones while maintaining high light output
- Indigo emitters reproduce natural fluorescence, helping materials appear more like they do under daylight or tungsten
- Full HSIC+, RGB and xy color controls for precise creative adjustments
- Ideal for creating sunsets, sodium-vapor looks, deep saturated colors and subtle color effects without gels
- Designed to deliver maximum output from common power sources, including full power from a 220V/15A household circuit
- North American power options support professional 110V/220V supplies or standard 110V/20A Edison connections
- Intelligent control box automatically adjusts maximum power draw depending on the connected power cable
- Portable design: 16.8kg lamp head and 10.8kg control box
- Compact, cube-shaped head allows multiple fixtures to be closely rigged into high-output arrays
- Can fit fully assembled with the optional CF16 Fresnel and skid onto lighting truck shelving or head carts
- Standard 7.5m head cable can be extended up to 45m, ideal for cranes, cherry pickers and elevated rigging
- Keeps the control box and power distribution accessible at ground level while positioning the lightweight lamp head remotely
| COLOUR SPECIFICATIONS | |
| LED Chipset: | BLAIR-CG With Extended Red |
| CCT Range: | 1,800K - 20,000K |
| CRI: | 97 |
| TLCI: | 98 |
| SSI (Tungsten): | 93 |
| SSI (D56): | 91 |
| TM-30 RF: | 96 |
| TM-30 RG: | 100 |
| POWER SPECIFICATIONS | |
| Operating Voltage (Full Output): | 100V ~ 240V / 50-60 Hz |
| Max Power Consumption (100V~240V): | 3200W |
| Max Power Consumption – Lamp Head: | 3000W |
| Max Power Output: | 2600W |
| AC Power Max Current High Voltage (240V): | 16A |
| AC Power Max Current Low Voltage (100V): | 32A |
| Max Head Cable Length (Daisy Chain): | 45m |
| OPTICAL SPECIFICATIONS | |
| Beam Angle (Native): | 78° |
| Beam Angle (With Included Reflector): | 30° |
| Compatible Reflectors: | 20°, 25°, 35°, 50° XT52 and 30° CS32 Reflectors |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating: | IP65 |
| Operating Temperature: | -20°C ~ 45°C / -4°F ~ 113°F |
| Storage Temperature: | -40°C ~ 80°C / -40°F ~ 176°F |
| Cooling Method (Lamp Head and Control Box): | Air Cooled |
| Lamp Head Fan Noise Levels (1m) Max Mode: | 52.6 dBA |
| Lamp Head Fan Noise Levels (1m) High Mode: | 52.4 dBA |
| Lamp Head Fan Noise Levels (1m) Medium Mode: | 40.2 dBA |
| Lamp Head Fan Noise Levels (1m) Low Mode: | 31.3 dBA |
| Lamp Head Fan Noise Levels (1m) Silent Mode: | 24.3 dBA |
| CONTROL AND FIRMWARE | |
| Control Methods: | On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, sACN, Art-Net, CRMX, Sidus Link Pro Auto-Patching and Auto-Configuration |
| Firmware Upgrade Methods: | USB-A, Sidus Link, Sidus Link Pro |
| Wireless Range - Bluetooth: | 100m |
| Wireless Range - CRMX: | 100m |
| Wired Data Ports: | 1x 5-Pin XLR In, 1x 5-Pin XLR Out. 2x RJ45 LAN Ports |
| MOUNTING SPECIFICATIONS | |
| Modifier Mount Type: | Aputure Mount |
| Included Rigging Hardware: | 1-1/8” / 28mm Junior Pin |
| DIMENSIONS | |
| Lamp Head (With Yoke): | 52.9 x 77.2 x 35.8 cm / 20.8 × 30.4 × 14.1 in |
| Lamp Head (Without Yoke): | 37.2 x 38.3 x 35.8 cm / 14.6 × 15.1 × 14.1 in |
| Removable Yoke: | 52.9 x 60.9 x 15.0 cm / 20.8 × 24.0 × 5.9 in |
| Lamp Head + Yoke + Skid: | 76.3 x 52.9 x 52.7 cm / 30.0 x 20.8 x 20.8 in |
| Control Box: | 34.5 x 16.0 x 37.6 cm / 13.6 × 6.3 × 14.8 in |
| 30° Reflector: | Ø 34.5 x 36.5 cm / Ø 13.6 × 14.4 in |
| Head Cable Length: | 7.5m |
| AC Power Cable (Bare Leads) Length: | 3m |
| AC Power Cable (NEMA 5-20P) Length: | 6m |
| AC Power Cable (CEE 16A) Length: | 3m |
| Flight Case: | 84.6 × 65.0 × 66.5 cm / 33.3 × 25.6 × 26.2 in |
| WEIGHT | |
| Lamp Head (With Yoke): | 19.80 kg / 43.65 lbs |
| Lamp Head (Without Yoke): | 16.80 kg / 37.04 lbs |
| Removable Yoke: | 3.00 kg / 6.61 lbs |
| Lamp Head + Yoke + Skid: | 22.24 kg / 49.03 lbs |
| Control Box: | 10.80 kg / 23.81 lbs |
| 30° Reflector: | 1.55 kg / 3.42 lbs |
| Head Cable: | 3.15 kg / 6.94 lbs |
| Aputure Ultra Clamp: | 0.92 kg / 2.03 lbs |
| Fully Loaded Flight Case: | 75.00 kg / 165.35 lbs |

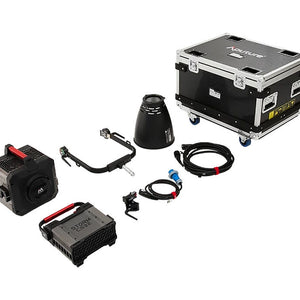

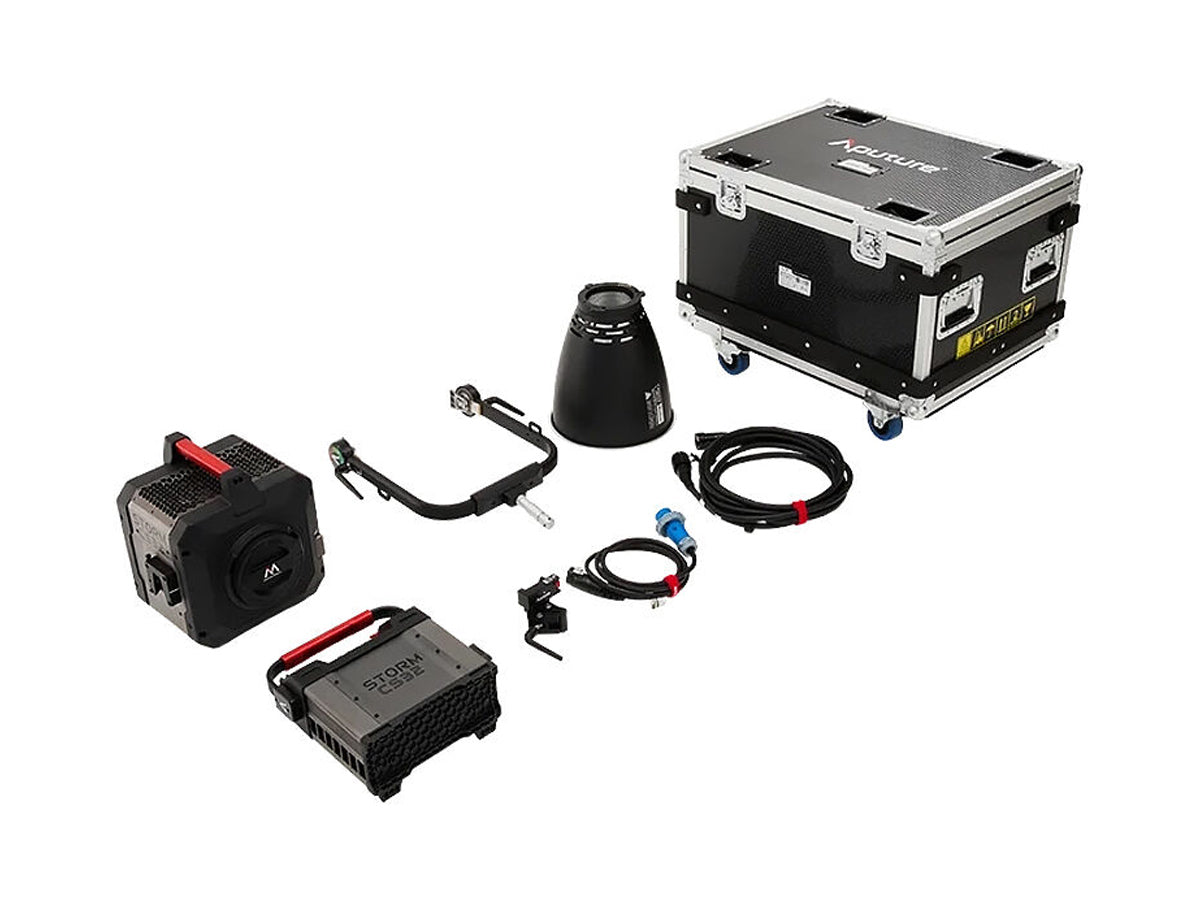

- 1x STORM CS32 Lamp Head
- 1x STORM CS32 Removable Yoke
- 1x STORM Series Aputure Mount Protection Cover
- 1x STORM CS32 Control Box
- 1x AM11030 Medium Reflector
- 1x PLG28 4-Pin to CEE 16A AC Power Cable (3m) - CN/EU regions only
- 1x PLG28 4-Pin to Bare Leads AC Power Cable (3m) - All regions except CN/EU
- 1x PLG28 4-Pin to NEMA 5-20P AC Power Cable (6m) (US) (20A Max) - All regions except CN/EU
- 1x PLK28 10-Pin Male to Female Lamp Head Cable (7.5m)
- 1x Aputure Ultra Clamp
- 1x STORM CS32 Flight Case
